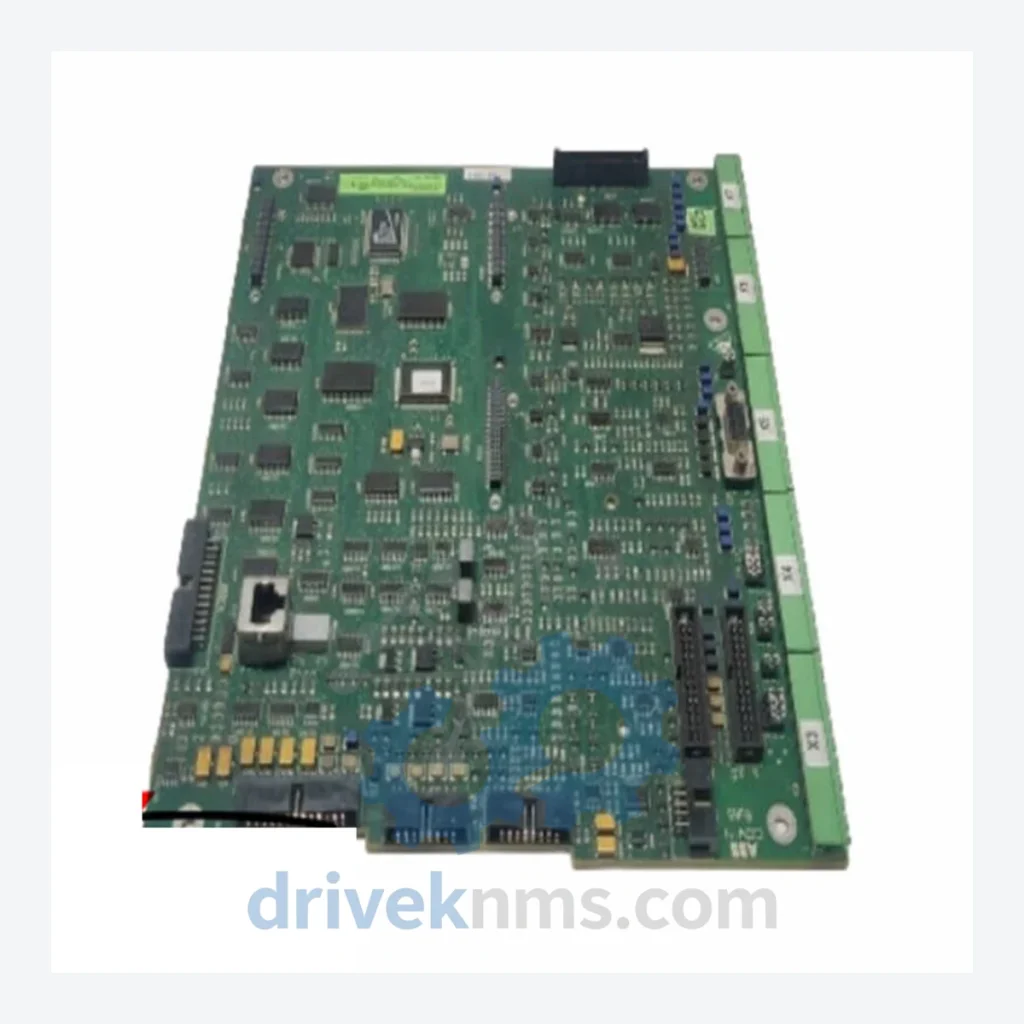

ABB ZCU-12 Control Card – Obsolete ACS800 Spare Part

Technical Dossier

Product Details And Specifications

ABB ZCU-12 Control Card – Obsolete ACS800 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as supply voltage range and I/O specifications vary by drive frame size and firmware revision. We do not publish unverified parameters. Contact us with your drive nameplate data for confirmation.

Solving the Discontinued Hardware Crisis

The ABB ACS800 platform was a dominant drive architecture across pulp and paper, metals, marine, and heavy process industries through the 1990s and 2000s. Many of these installations remain in active production today — not because operators are unaware of the discontinuation, but because the cost and risk of full system replacement outweighs the cost of maintaining the existing asset.

The ZCU-12 is the control intelligence of the ACS800. It handles speed reference processing, fault diagnostics, fieldbus communication (DDCS, Profibus, Modbus depending on option modules fitted), and protection relay logic. There is no firmware-compatible substitute from ABB's current portfolio. A failed ZCU-12 cannot be replaced with a component from the ACS880 or ACS580 series without a full drive replacement and control system re-engineering.

The strategic approach used by maintenance teams managing legacy ABB drive fleets typically includes: identifying all ZCU-12 units in service across the facility, establishing a minimum one-unit cold spare per critical drive, and scheduling a controlled replacement of the highest-hour units during planned shutdowns rather than waiting for field failure. This is not deferred maintenance — it is asset life extension executed as a deliberate capital strategy.

Condition & Reliability Assurance

Sourcing a discontinued control board from the secondary market carries real risk. DriveKNMS applies a 5-step qualification process to every ZCU-12 unit before it is offered for sale:

Step 1 – Electrolytic Capacitor Inspection: Capacitor aging is the primary failure mode in boards of this era. Each unit is inspected for bulging, electrolyte leakage, and ESR deviation. Suspect capacitors are replaced with specification-matched components before the board is cleared.

Step 2 – Firmware Version Verification: The ZCU-12 firmware version must match the drive's parameter set. We verify and document the firmware revision on each unit and flag any version mismatches that could cause compatibility issues in specific ACS800 configurations.

Step 3 – Connector and Pin Corrosion Audit: All edge connectors, ribbon cable sockets, and terminal pins are inspected under magnification for oxidation, fretting corrosion, and mechanical damage. Affected contacts are cleaned or the unit is rejected.

Step 4 – Functional Bench Test: Where test fixtures are available, boards are powered and tested against known-good drive parameters to confirm basic control logic operation.

Key Features for System Maintenance

The ZCU-12 is a direct drop-in replacement for the original board position in all compatible ACS800 drive frames. Installation does not require PLC reprogramming, fieldbus reconfiguration, or changes to the drive's parameter backup — provided the replacement unit carries a compatible firmware revision. This means a trained maintenance technician can execute the swap during a planned or emergency shutdown without specialist commissioning support.

Avoiding a full drive replacement preserves the existing motor cabling, transformer sizing, harmonic filter design, and control room wiring — none of which are trivial to replicate in a modernization project. The engineering cost alone for a single ACS800 replacement in a complex process application frequently exceeds the value of maintaining the existing asset for another decade.

How do I know the unit is genuine ABB and not a counterfeit?
All ZCU-12 units in our inventory are sourced from decommissioned ABB-installed systems or authorized liquidation channels. We provide board photographs, serial number documentation, and firmware version records on request prior to purchase.
