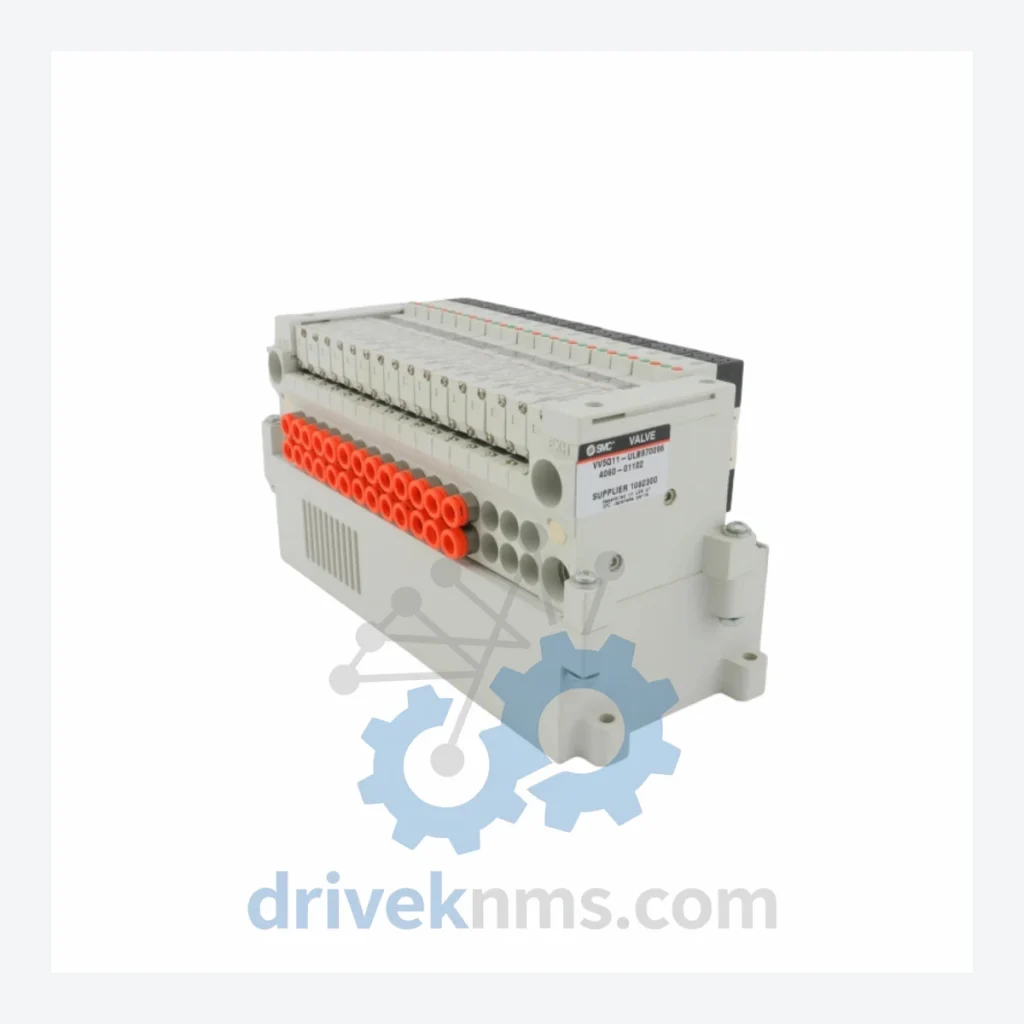

AMAT 4060-01156 Slit Valve Pneumatic Manifold Assembly – Obsolete Centura Spare Part

When a slit valve manifold assembly fails on an Applied Materials Centura platform, the consequences extend far beyond a single chamber going offline. The Centura's cluster architecture means one failed pneumatic interface can halt wafer transfer across multiple process modules simultaneously. A full platform upgrade — new chamber qualification, process re-certification, and production revalidation — routinely costs semiconductor fabs seven figures. Against that backdrop, a verified replacement assembly from existing inventory is not a convenience; it is a capital protection decision.

DriveKNMS holds sourcing status of the AMAT 4060-01156 (cross-referenced as NP420-DN1 / 4162001DC3 / MA4162). Inventory of this assembly is finite and not being replenished through original manufacturing channels.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters specific to this assembly are not published here to prevent misapplication. Contact our technical team for configuration verification before ordering.

Solving the Discontinued Hardware Crisis

The Applied Materials Centura platform has been a backbone of 200mm and transitional 300mm fabs for decades. Its modular design — CVD, PVD, etch, and implant chambers sharing a common transfer module — made it the workhorse of an era. That same longevity is now its vulnerability: AMAT has long since discontinued support for many Centura-generation mechanical and pneumatic components, including the 4060-01156 manifold assembly.

The slit valve is the mechanical gatekeeper between the transfer module and each process chamber. Its pneumatic manifold controls the actuation sequence that opens and closes the valve during wafer handoff. A degraded or failed manifold does not simply slow throughput — it breaks the atmospheric isolation protocol, risking wafer contamination, chamber cross-contamination, and in worst cases, vacuum integrity failure across the cluster.

Fabs running Centura tools face a hard calculation: retire a platform that is fully depreciated and process-qualified, or maintain it with increasingly scarce spare parts. For most operations, the math favors maintenance — provided the parts can be sourced. The 4060-01156 is precisely the category of component that determines whether that maintenance strategy remains viable.

How critical spare parts extend automation asset life by 5–10 years:

Condition & Reliability Assurance

Obsolete pneumatic assemblies sourced from the secondary market carry inherent risk if not properly evaluated. DriveKNMS applies a 5-step QA protocol to all refurbished units before dispatch review:

• Step 1 – Electrolytic Capacitor Inspection: All electrolytic capacitors on associated control boards are inspected for bulging, leakage, and ESR degradation. Aged capacitors are replaced with spec-equivalent components before any functional test.
• Step 2 – Firmware Version Verification: Where applicable, firmware or embedded logic versions are confirmed against the last known compatible revision for Centura platform integration. Mismatched firmware is flagged before dispatch review.
• Step 3 – Pin and Connector Corrosion Audit: All electrical connectors, pneumatic fittings, and interface pins are inspected under magnification for oxidation, pitting, and mechanical deformation. Corroded contacts are cleaned or the connector assembly is replaced.
• Step 4 – Pneumatic Leak and Actuation Test: The manifold is pressure-tested to verify seal integrity across all ports. Actuation response is confirmed within OEM timing specifications where reference data is available.
• Step 5 – Final Documentation: Each unit ships with a QA inspection record, including technician ID, test date, and findings log. This documentation supports your internal maintenance records and audit trail.
