Applied Materials 0010-00098 Throttle Valve Assembly – Obsolete QDP40/QMB250/500 Spare Part

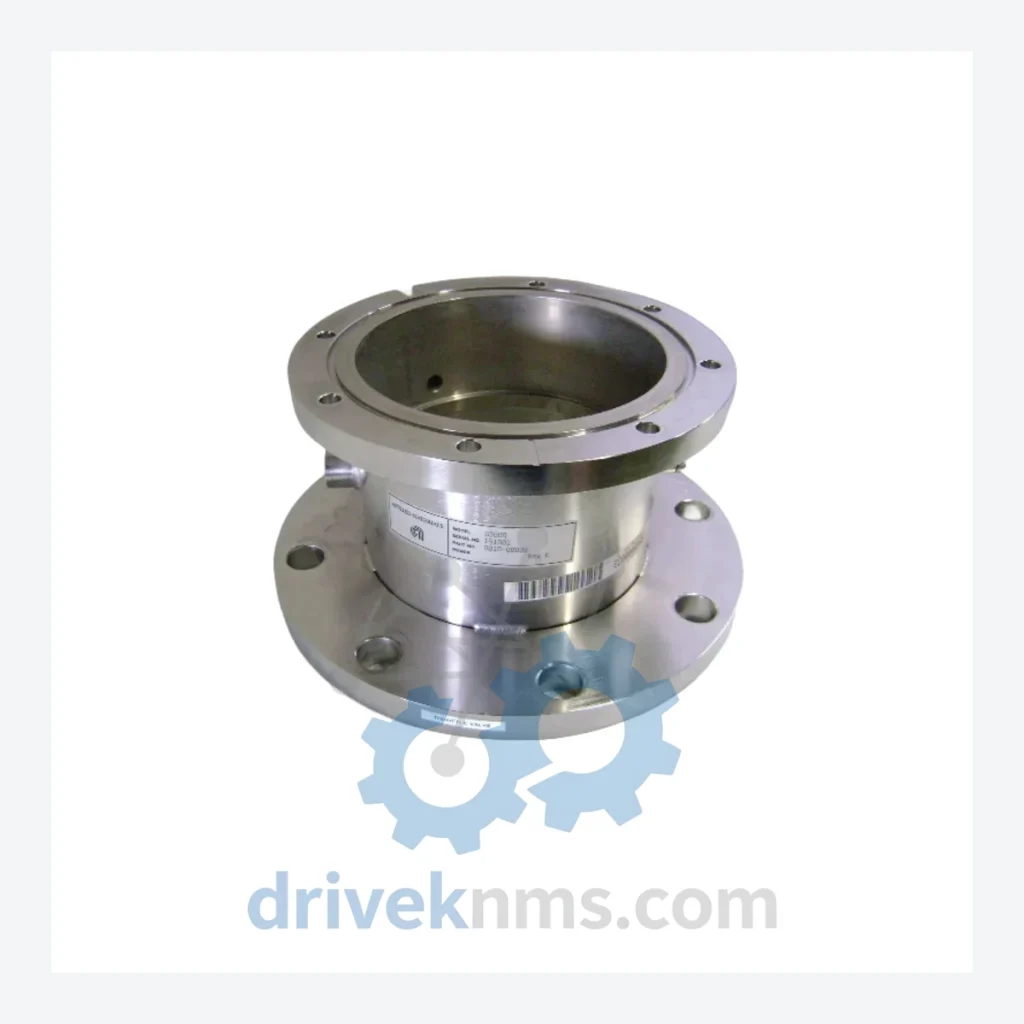

Applied Materials part number 0010-00098 is the throttle valve assembly used across the QDP40 dry pump interface, QMB250/500 booster pump systems, and DLP240-24-1/EJ configurations. This assembly governs process gas flow control and chamber pressure regulation. Its failure directly impacts process repeatability, yield, and tool qualification status. DriveKNMS maintains limited sourcing status of this discontinued assembly, sourced through controlled channels and verified before dispatch review.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical and dimensional parameters are not published here to prevent misapplication. Contact our technical team for configuration verification before ordering.

Solving the Discontinued Hardware Crisis

The QDP40 dry pump and QMB booster series were widely deployed across 200mm fabs throughout the 1990s and 2000s. Many of these tools remain in active production today — running mature process nodes for MEMS, power devices, analog ICs, and compound semiconductors where a node migration is neither economically justified nor technically necessary.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Field repair of a throttle valve assembly is rarely viable. The assembly contains precision-machined sealing surfaces, actuator components, and position feedback elements that degrade with process exposure. Attempting to rebuild without OEM-spec replacement parts introduces process drift and vacuum integrity risk — both unacceptable in a qualified production environment.

Tool retirement, on the other hand, triggers a capital expenditure cycle that most fab managers would prefer to avoid. A replacement 300mm-compatible tool, installation, process qualification, and operator retraining can easily exceed $3–5 million. For a tool running a mature, stable process, that investment is difficult to justify to finance leadership.

The practical answer is controlled spare parts inventory. A single verified 0010-00098 assembly, held in climate-controlled storage, can extend the productive life of a QDP40-equipped tool by 5–10 years at a fraction of the cost of any alternative. DriveKNMS exists specifically to support this strategy.

How to Extend Automation Asset Life by 5–10 Years Through Strategic Spare Parts Management

For plant managers and maintenance engineers operating legacy semiconductor or industrial vacuum systems, the following framework has proven effective in deferring capital replacement while maintaining production reliability:

3. Source Before Failure, Not After. The secondary market for obsolete semiconductor equipment parts operates on scarcity. Prices rise and availability collapses after a tool failure becomes public knowledge. Procurement decisions made under emergency conditions consistently produce worse outcomes than planned purchases.

4. Verify Before Installation. Obsolete parts sourced from the secondary market require functional verification before they enter your qualified tool set. A part that passes visual inspection but fails under process conditions is more damaging than a known-bad part — it introduces yield excursions that may not be immediately attributed to the replacement component.

5. Document Your Legacy Tool Roadmap. Align your spare parts procurement strategy with a realistic tool retirement timeline. If a tool is expected to run for five more years, the spare parts investment required to support that timeline is calculable and defensible in a capital planning discussion.

Condition & Reliability Assurance

All obsolete assemblies supplied by DriveKNMS pass a structured 5-step verification process before dispatch review:

Step 1 – Visual and Mechanical Inspection: Full external inspection for physical damage, corrosion, and seal integrity. Connector pins and mating surfaces are examined under magnification for oxidation and mechanical wear.

Step 2 – Electrolytic Capacitor Assessment: Where applicable, aging electrolytic capacitors are identified and flagged. Units with capacitors showing visible bulging, electrolyte leakage, or ESR values outside specification are quarantined.

Step 3 – Firmware and Configuration Verification: For assemblies containing embedded controllers or position feedback electronics, firmware version is recorded and cross-referenced against known compatible revisions for the target system.

Step 4 – Pin and Contact Integrity Check: All electrical connectors are inspected for corrosion, bent pins, and contact resistance. Corroded contacts are a primary failure mode in assemblies that have been stored in non-controlled environments.

Key Features for System Maintenance

Drop-in replacement: The 0010-00098 assembly is a direct mechanical and electrical replacement for the original OEM part. No modifications to the host system are required.

No reprogramming required: The assembly does not require tool-level software changes or recipe modifications upon installation. Qualified maintenance personnel can complete the replacement using standard OEM service documentation.

Preserves existing process recipes: All process parameters, interlocks, and alarm setpoints remain valid after a like-for-like assembly replacement. There is no risk of introducing process drift through a hardware change of this type.

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

Q: How do I confirm the part is new or quality-refurbished?
A: Each unit is supplied with a condition report documenting its inspection status. New-in-box units are identified as such. Refurbished units are supplied with a summary of the work performed and the verification steps completed. We do not supply parts without documented condition status.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.
