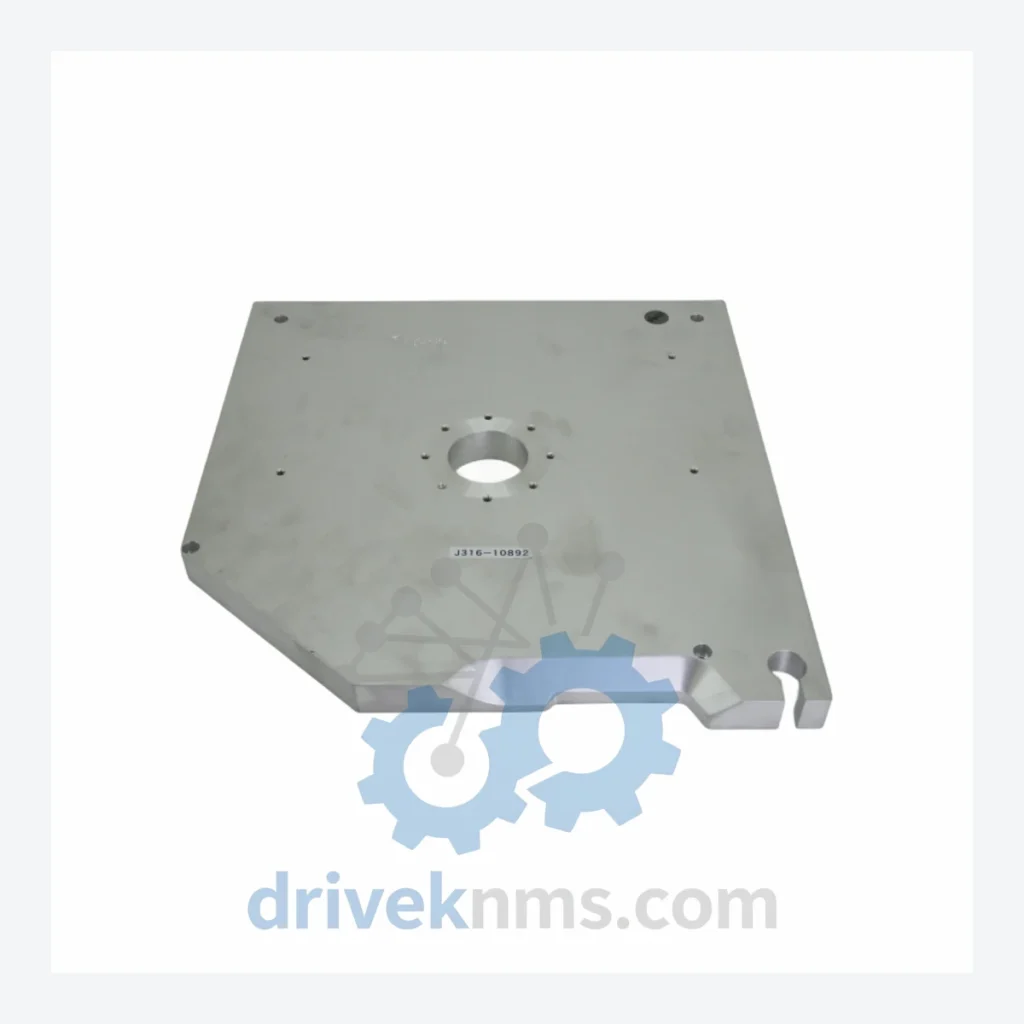

Applied Materials 0041-04312 Chamber Upper SSWLL – Hard-to-Find CVD Spare Part

Technical Dossier

Product Details And Specifications

Applied Materials 0041-04312 Chamber Upper SSWLL – Critical Spare for Semiconductor Process Equipment

When a process chamber goes down in a semiconductor fab, the clock starts immediately. Unplanned downtime on a CVD or etch tool does not cost hundreds of dollars per hour — it costs production yield, wafer starts, and in some facilities, contractual delivery commitments. The Applied Materials Upper SSWLL (part numbers: 0041-04312 / 6719162P / 6719161XD-2C / 0100-35065) is a chamber liner or sidewall component that directly contacts the process environment. Its condition determines chamber cleanliness, deposition uniformity, and particle performance. When this part degrades or fails, there is no workaround — the chamber must be taken offline.

DriveKNMS maintains sourced inventory of this component for facilities that cannot afford to wait on standard supply chain lead times, which for Applied Materials consumables and spare parts routinely extend to 16–26 weeks or longer through OEM channels.

Technical Specifications

Note: Electrical and dimensional parameters are not published here to prevent misapplication. Contact us with your tool configuration for compatibility confirmation.

Solving the Discontinued Hardware Crisis

Applied Materials process tools — including the Centura, Producer, and DPS platforms — have operational lifespans that routinely exceed 15–20 years in high-volume fabs. The OEM support window, however, does not. Once a platform reaches end-of-life designation, spare part availability through official channels becomes inconsistent, then scarce, then effectively zero.

The Upper SSWLL is not a peripheral accessory. It is a process-critical chamber component. Its geometry, surface finish, and material composition are matched to the specific chamber design. Substituting an incorrect part risks particle contamination, film non-uniformity, and in worst cases, chamber damage that escalates a routine PM into a multi-week recovery event.

Facilities running legacy AMAT tools face a straightforward calculation: the cost of sourcing a verified spare part through a specialist supplier is a fraction of the cost of a single lost production day, let alone the capital expenditure required to qualify and install a replacement tool. For fabs where the installed tool base represents tens of millions of dollars in depreciated but fully productive assets, maintaining a strategic spare parts inventory is not optional — it is the lowest-cost path to sustaining output.

How to extend your Applied Materials tool life by 5–10 years without capital expenditure:

• Audit your chamber component inventory now, not during a down event. Identify which consumable and spare parts have lead times exceeding your acceptable downtime window. The Upper SSWLL is a prime candidate — it is not stocked by most distributors.
• Establish a minimum stock level for process-critical liners and shields. One spare per active chamber is a starting point. For high-utilization tools, two spares per chamber is the defensible position.
• Document cross-reference part numbers. AMAT has revised part numbers across platform generations. Maintaining a cross-reference list (as shown above) prevents procurement errors when sourcing from secondary market suppliers.
• Qualify your secondary market supplier before you need them urgently. Evaluate their inspection process, documentation practices, and return policy under non-emergency conditions. Emergency sourcing under production pressure is the worst time to assess supplier reliability.
• Negotiate consignment or reserved stock arrangements. For parts with long OEM lead times and high criticality, some specialist suppliers will hold inventory against a purchase commitment. This eliminates lead time risk without requiring full upfront capital outlay.

Condition & Reliability Assurance

Chamber components sourced outside OEM channels carry inherent risk if not properly inspected. DriveKNMS applies a structured 5-step qualification process to all refurbished or aged inventory before it is offered for sale:

1. Visual and dimensional inspection: Surface condition, coating integrity, and dimensional conformance are checked against known-good references. Parts with visible erosion beyond serviceable limits, cracks, or delamination are rejected.
2. Material verification: Where applicable, material composition is confirmed to match OEM specification. Counterfeit or substitute materials in process chamber components are a known industry problem.
3. Contamination assessment: Parts are inspected for process residue, metallic contamination, and particle-generating surface conditions. Cleaning and re-passivation are performed where required.
4. Pin and interface inspection: Mechanical interfaces, alignment features, and any electrical contacts are inspected for corrosion, deformation, or wear that would affect fit or function.
5. Documentation and traceability: Each part is logged with its inspection record, condition classification (New / Refurbished-to-Spec / As-Removed), and any known history. This documentation is available to the buyer on request.

Key Features for System Maintenance

• Drop-in replacement: This component is sourced to match OEM part number specifications. No chamber modification or re-qualification of process recipes is required beyond standard post-PM verification runs.
• No re-engineering required: Unlike platform migration projects, replacing a worn chamber liner with a verified OEM-equivalent part does not trigger a process change control event in most fab quality systems.
• Avoids capital expenditure: A verified spare part at a fraction of the cost of a new tool purchase or a platform upgrade project. The ROI calculation is not complex.
• Supports extended tool life planning: Facilities with a 5–10 year tool life extension strategy need a reliable source for parts that OEM channels no longer stock consistently. That is the specific problem DriveKNMS exists to solve.

FAQ

Q: What warranty applies to this part?
A: Warranty terms are confirmed at the time of sale and depend on the condition classification of the specific unit. New parts carry a standard defective-on-arrival warranty. Refurbished-to-spec parts carry a functional warranty covering the inspection criteria listed above. Terms are documented in the sales agreement.

Q: How do I confirm this part is compatible with my specific tool configuration?
A: Provide your tool model, chamber type, and any additional part numbers from your BOM or PM kit. We will confirm compatibility before the order is placed. Do not install a chamber component without confirming the part number match to your specific chamber revision.

Q: Is this a new or refurbished part?
A: Stock condition varies. Current inventory condition is confirmed at the time of inquiry. We do not misrepresent condition — the classification (New, Refurbished-to-Spec, or As-Removed) is stated explicitly in the quotation.

Q: What is your lead time?
A: For in-stock units, lead time is determined by shipping logistics, not sourcing. For parts we need to locate, we provide a sourcing timeline estimate at inquiry. We do not quote lead times we cannot support.

Q: Should I buy more than one unit?
A: For any chamber component with an OEM lead time exceeding 8 weeks, holding at least one spare is a defensible maintenance practice. For this specific part, given its process-critical role and limited secondary market availability, a two-unit reserve per active chamber is a reasonable position for facilities with a multi-year tool life plan.
