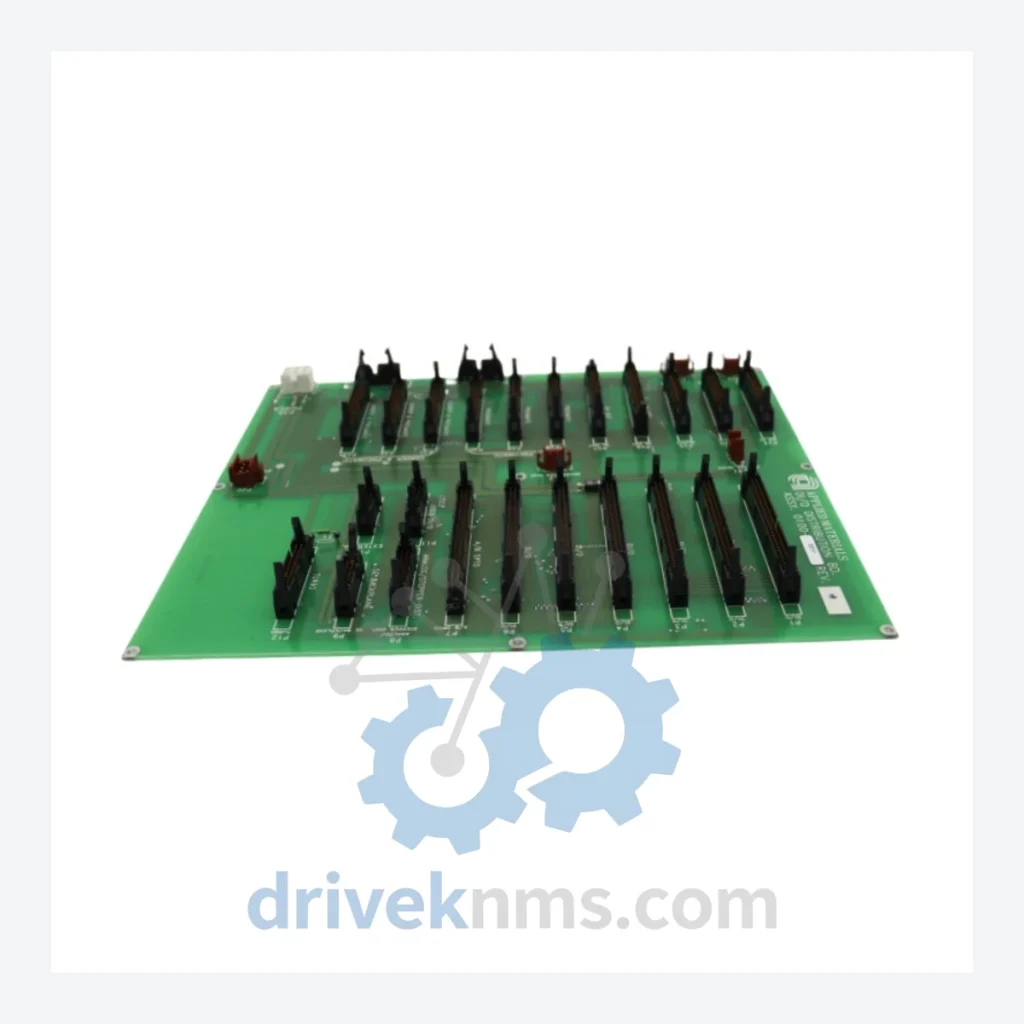

Applied Materials DR353BR9M DI/O Distribution Board

Technical Dossier

Product Details And Specifications

Applied Materials DR353BR9M Series: Comprehensive Module Range and Technical Overview

The Applied Materials DR353BR9M DI/O Distribution Board is a critical subsystem component deployed within Applied Materials semiconductor capital equipment platforms. These boards serve as the digital input/output signal distribution backbone in process chambers and equipment front-end modules (EFEMs) used across high-volume semiconductor fabs, flat-panel display manufacturing lines, and advanced packaging facilities globally. The DR353BR9M series interfaces directly with the equipment's main controller, routing discrete I/O signals to actuators, sensors, and interlock circuits. Its deployment spans 200mm and 300mm wafer processing tools, making it a long-lifecycle component with sustained demand in both OEM maintenance and third-party refurbishment markets. Installed base concentration is highest in logic and memory fabs operating Applied Materials Centura, Endura, and Producer platform tools.

The Evolution of DR353BR9M Architecture

The DR353BR9M board family was developed as part of Applied Materials' standardized I/O distribution architecture introduced in the mid-1990s to consolidate discrete wiring harnesses into a single, testable PCB assembly. Early revisions (Rev A–C) used through-hole connector technology and were compatible with VME-based controller backplanes. Subsequent revisions (Rev D onward, including the current 2305233-D revision) transitioned to surface-mount components, improving signal integrity and reducing board-level failure rates in high-vibration chamber environments.

The 2305233-D revision specifically introduced enhanced ESD protection on all I/O lines and revised connector pinouts to support expanded interlock channel counts required by newer process recipes. Compatibility with legacy controller cards requires verification of the backplane revision and firmware version. Boards from the DR353BR9M family are not forward-compatible with next-generation Applied Materials iSYS controller architectures without an adapter interface. For tools transitioning to newer platforms, Applied Materials recommends the 0100-76170 series as the functional successor, though direct pin-for-pin substitution is not supported without engineering review.

DR353BR9M Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented DR353BR9M series and closely associated Applied Materials DI/O distribution and interface board assemblies. All part numbers listed have been identified from Applied Materials field service documentation and industry spare parts databases.

DI/O Distribution Boards

• 0100-20217: Primary DI/O distribution board assembly, DR353BR9M platform, 24VDC logic level
• 2305233-D: Board revision D; enhanced ESD protection, revised I/O connector pinout
• 0100-20217-080554: Factory-configured sub-assembly with 080554 option code; specific interlock channel mapping
• 0100-76170: Next-generation DI/O distribution board; functional successor to 0100-20217 on updated platforms
• 0100-35188: DI/O interface board, Centura platform variant; 32-channel discrete I/O
• 0100-35189: DI/O interface board, extended channel variant; 48-channel discrete I/O
• 0100-40123: Digital output distribution board; high-current sink driver configuration
• 0100-40124: Digital input distribution board; optically isolated input channels
• 0100-09956: I/O signal distribution board, Producer platform; chamber-level interlock routing
• 0100-09957: I/O signal distribution board, Endura platform; dual-chamber configuration

Controller Interface & Backplane Modules

• 0100-20100: VME backplane interface card; routes controller signals to DR353BR9M distribution boards
• 0100-20101: Backplane termination board; required for single-slot VME configurations
• 0100-76050: iSYS controller I/O adapter; bridges legacy DR353BR9M pinout to iSYS backplane
• 0100-76051: iSYS I/O expansion module; adds 16 discrete channels to iSYS controller

Power Distribution & Ancillary Boards

• 0100-20300: 24VDC power distribution board; supplies regulated voltage to DR353BR9M I/O circuits
• 0100-20301: Power filter board; EMI suppression for I/O distribution rail
• 0100-35500: Relay output board; 16-channel mechanical relay output for high-current actuator control

Sourcing Hard-to-Find & Obsolete DR353BR9M Parts

The DR353BR9M series has entered the mature-to-declining phase of its product lifecycle. Applied Materials no longer manufactures new units of the 0100-20217 assembly, and OEM spare parts availability through authorized channels is limited to existing warehouse stock. Lead times through OEM distribution can exceed 26 weeks for low-demand revision codes.

Quality Control for the DR353BR9M Range

DR353BR9M boards present specific test challenges due to their role as signal distribution intermediaries: a board may pass basic continuity checks while exhibiting intermittent failures under loaded I/O conditions. DriveKNMS applies the following test protocol to all DR353BR9M units prior to shipment:

• Full connector pin-out continuity verification against Applied Materials drawing 0100-20217 Rev D
• Insulation resistance test on all I/O lines at 500VDC to detect degraded trace insulation
• Functional load test: all digital output channels driven to rated sink current (500mA per channel) for 30 minutes
• Optical isolation verification on all digital input channels using calibrated signal source
• ESD susceptibility check on I/O connector pins per IEC 61000-4-2 Level 2
• Visual inspection of all solder joints, connector housings, and PCB surface under 10x magnification
• Burn-in cycle: 4 hours at 55°C ambient with all channels active to screen infant mortality failures

Test records are retained for each unit and are available upon request for traceability documentation required by ISO 9001-compliant fab quality systems.
