Applied Materials 0190-02363 FC-8020 Bracket Holder MS5 – Obsolete Mainframe Relay Module PCB Spare Part

Technical Dossier

Product Details And Specifications

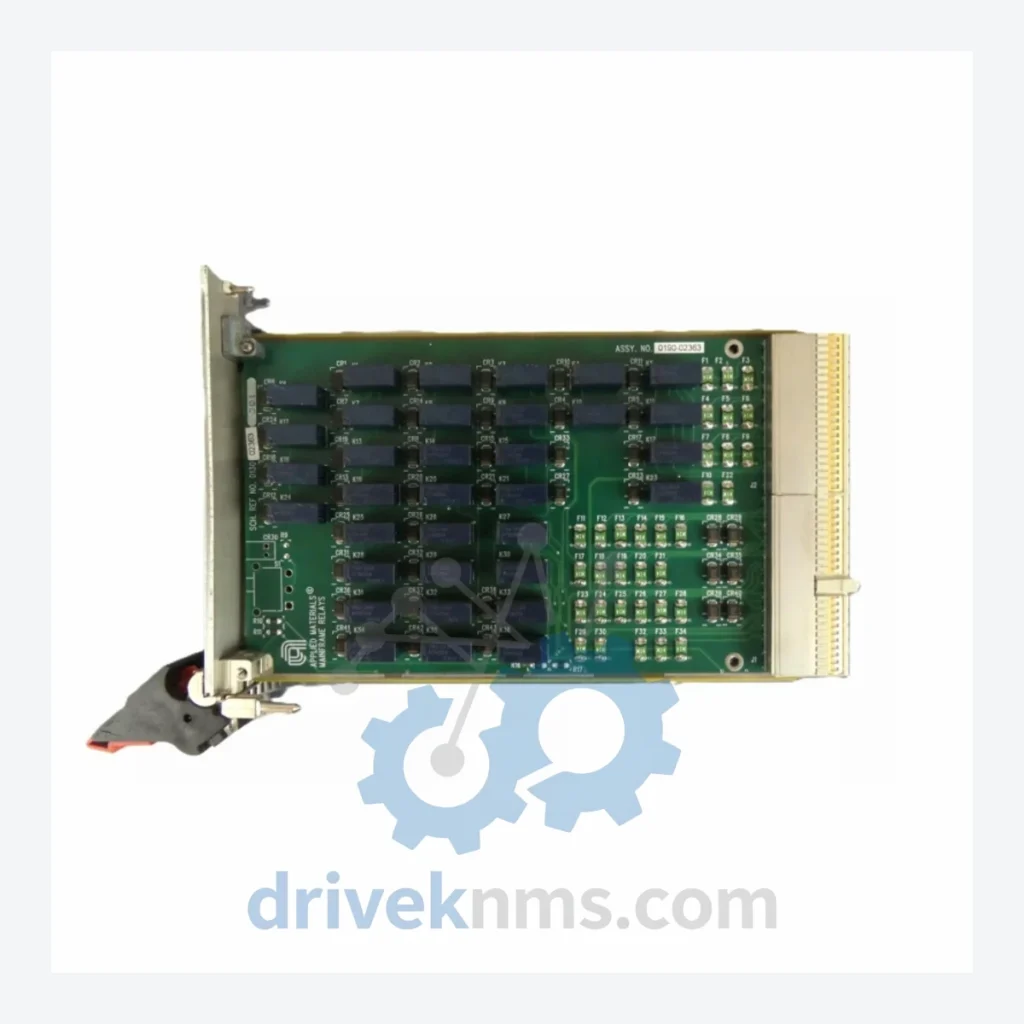

Applied Materials 0190-02363 FC-8020 Bracket Holder MS5 – Obsolete Mainframe Relay Module PCB Spare Part

DriveKNMS reviews sourcing status and documentation for this model during RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters specific to this PCB sub-assembly are not published in open documentation. DriveKNMS does not fabricate specifications. Buyers requiring detailed electrical characterization data should contact our technical team directly for datasheet support.

Solving the Discontinued Hardware Crisis

Applied Materials MS5-series mainframes were workhorses of the semiconductor process equipment industry. Installed across fabs worldwide through the 1990s and 2000s, these platforms remain in active production use at facilities that have made a deliberate decision: the cost of keeping legacy equipment running is a fraction of the cost of replacing it.

The FC-8020 relay module PCB sits within the mainframe's power and signal distribution architecture. Its function — managing relay switching for process control circuits — is not optional. When this board fails, the mainframe cannot operate safely or reliably. There is no software workaround. There is no field repair that substitutes for the correct replacement board.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step inspection protocol to all obsolete PCB modules before dispatch review. This process is designed specifically for legacy boards where age-related degradation — not physical damage — is the primary failure risk.

Step 1 – Electrolytic Capacitor Assessment: All electrolytic capacitors on the board are visually inspected and, where test access permits, measured for capacitance drift and ESR. Aged capacitors are the leading cause of latent failure in legacy PCBs stored beyond their design life.

Step 2 – Firmware and Configuration Verification: Where the module carries programmable logic or firmware, version integrity is confirmed against known-good reference data. No unauthorized modifications are accepted.

Step 3 – Pin and Connector Corrosion Inspection: All edge connectors, pin headers, and solder joints are examined under magnification for oxidation, corrosion, and cold joint indicators. Affected contacts are cleaned to IPC standards where remediation is appropriate.

Step 4 – Functional Bench Test: Where test fixtures are available for the module type, a powered functional test is performed to confirm relay switching response and signal integrity.

Step 5 – Packaging and ESD Protection: All PCB modules are shipped in anti-static packaging with desiccant. Long-term storage units are vacuum-sealed.

Key Features for System Maintenance

The 0190-02363 FC-8020 BRKT HOLDER MS5 is a direct drop-in replacement for the original installed unit. No firmware reprogramming is required. No mechanical modification to the mainframe chassis is needed. No process requalification is triggered by a like-for-like board swap under standard maintenance procedures.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units sourced by DriveKNMS are traceable to documented supply chain origins. Physical markings, board revision codes, and component population are cross-referenced against known-authentic reference units. We do not source from unverified brokers.

Q: Should I buy more than one unit?
A: For any facility with active MS5-series mainframes, yes. The supply of this part number is not replenishable. Procurement of two to three units as strategic spares is the standard recommendation for asset protection planning. The cost of a spare unit is negligible compared to the cost of an unplanned line stoppage while waiting for a part that may no longer be available.

Q: Can you source other Applied Materials obsolete part numbers?
A: Yes. DriveKNMS specializes in hard-to-find and obsolete industrial automation and semiconductor equipment spares. Submit your part number list to our team for availability assessment.
