Applied Materials PM30 Ball Screw Assembly Modules: 0190-75073 / 810-495659-303

Technical Dossier

Product Details And Specifications

Applied Materials PM30 Series: Comprehensive Ball Screw Assembly Range and Technical Overview

The Applied Materials PM30 series ball screw assemblies are precision mechanical drive components deployed in semiconductor wafer processing equipment, specifically within CVD (Chemical Vapor Deposition) and etch process modules. These assemblies provide the linear actuation required for susceptor lift, slit valve, and chamber lid positioning mechanisms in high-vacuum, high-temperature process environments. PM30-series components are installed across Applied Materials Centura, Producer, and Endura platform mainframes, which collectively represent the dominant installed base in 200mm and 300mm fabs globally — including facilities operated by TSMC, Samsung, Intel, and SMIC.

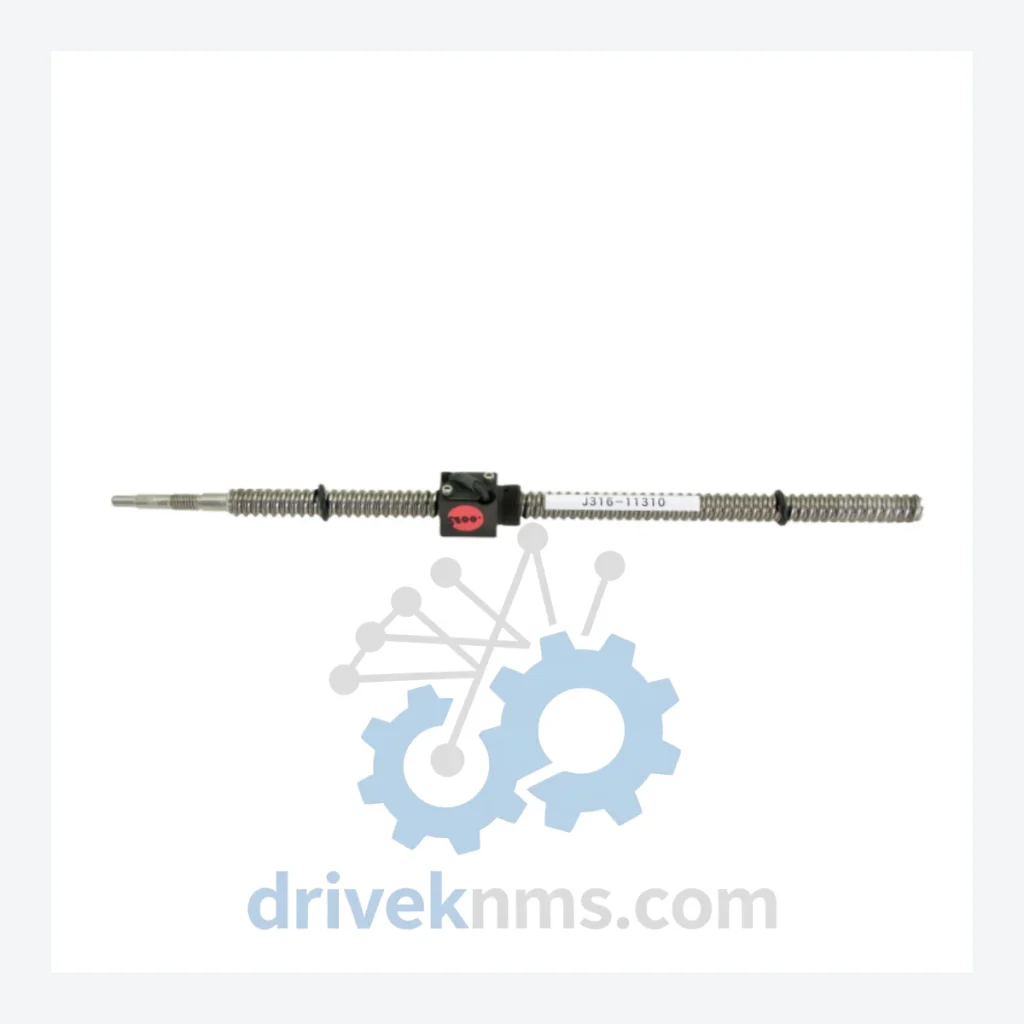

The PM30 ball screw assembly (P/N 0190-75073, cross-reference 810-495659-303) is a direct-replacement mechanical subassembly. Its precision ground ball screw, recirculating ball nut, and integrated support bearings are manufactured to semiconductor-grade tolerances, with axial play specifications typically held to <5 µm to maintain wafer positioning repeatability within process spec.

The Evolution of PM30 Architecture

Applied Materials introduced the PM30 mechanical platform as part of its modular process chamber design philosophy in the early 1990s. The architecture was engineered to allow rapid chamber swap-out (hot-swap maintenance) without breaking vacuum on adjacent chambers — a key productivity driver for high-volume fabs. Early PM30 assemblies used ground C3-class ball screws with grease-packed nuts. Subsequent revisions introduced sealed, lubrication-free ball nuts rated for cleanroom Class 1 environments, and later iterations incorporated corrosion-resistant coatings on the screw shaft to withstand aggressive process chemistries (NF3, HF, Cl2 ambient exposure during maintenance cycles).

The PM30 platform has remained in active production support through Applied Materials' global spare parts network, though many sub-assemblies — including the 0190-75073 — are now classified as long-lead or allocation-controlled items through the OEM channel. Third-party MRO suppliers have become the primary sourcing path for fabs requiring rapid replenishment without OEM lead times of 16–26 weeks.

PM30 Full Catalog & Functionalities (SKU List)

The following part numbers are verified components associated with the Applied Materials PM30 process module platform. Each entry represents a distinct mechanical or electromechanical subassembly:

0190-75073: PM30 ball screw assembly, primary lift axis, 810-495659-303 cross-ref
0190-75074: PM30 ball screw assembly, secondary axis variant, extended stroke
0190-09791: PM30 susceptor lift shaft assembly, ceramic-tipped
0190-09792: PM30 lift pin assembly, alumina, set of 3
0190-10065: PM30 slit valve door assembly, complete with actuator
0190-10066: PM30 slit valve seal, elastomer, O-ring kit
0190-20453: PM30 chamber lid hinge assembly, stainless
0190-20454: PM30 lid lift actuator, pneumatic, with position sensor
0190-35217: PM30 susceptor support ring, quartz, 200mm
0190-35218: PM30 susceptor support ring, quartz, 300mm
0190-40112: PM30 drive motor mount bracket, anodized aluminum
0190-40113: PM30 stepper motor coupling, flexible jaw type
0190-55601: PM30 linear guide rail assembly, 400mm travel
0190-55602: PM30 linear guide carriage block, recirculating ball
0190-60874: PM30 ball screw support bearing set, angular contact pair
0190-60875: PM30 ball nut housing, precision bored, aluminum
810-495659-303: OEM cross-reference for 0190-75073, PM30 ball screw assy
810-495659-304: OEM cross-reference, PM30 ball screw assy, revised preload spec
0190-75080: PM30 ball screw assembly, high-load variant, 810-495670-303 cross-ref

Sourcing Hard-to-Find & Obsolete PM30 Parts

DriveKNMS maintains a dedicated inventory program for Applied Materials PM30 platform components. As the OEM progressively transitions support resources toward 300mm-only platforms, PM30 assemblies — particularly those used in 200mm legacy fabs — are subject to increasing lead times and minimum order quantity restrictions through authorized channels.

DriveKNMS sources PM30 ball screw assemblies and related mechanical subassemblies through a combination of: (1) decommissioned tool buybacks from fabs undergoing 200mm-to-300mm conversion; (2) direct manufacturer relationships for precision ball screw components that meet or exceed OEM dimensional specifications; and (3) certified refurbishment of pull-and-replace units with full dimensional inspection and functional verification prior to resale. All PM30 parts are shipped with traceable documentation including inspection records and, where applicable, original OEM packaging.

Quality Control for the PM30 Range

PM30 ball screw assemblies undergo a structured incoming inspection and functional verification protocol at DriveKNMS before any unit is offered for sale. The process includes: dimensional verification of screw lead accuracy and shaft runout using calibrated CMM equipment; axial and radial play measurement against OEM tolerance specifications; ball nut drag torque measurement across full travel to detect preload loss or contamination; visual and tactile inspection of screw surface finish for pitting, corrosion, or brinelling; and bearing condition assessment via acoustic emission testing. Units that do not meet specification are either remanufactured to tolerance or quarantined. No PM30 assembly is released without a completed inspection record.
