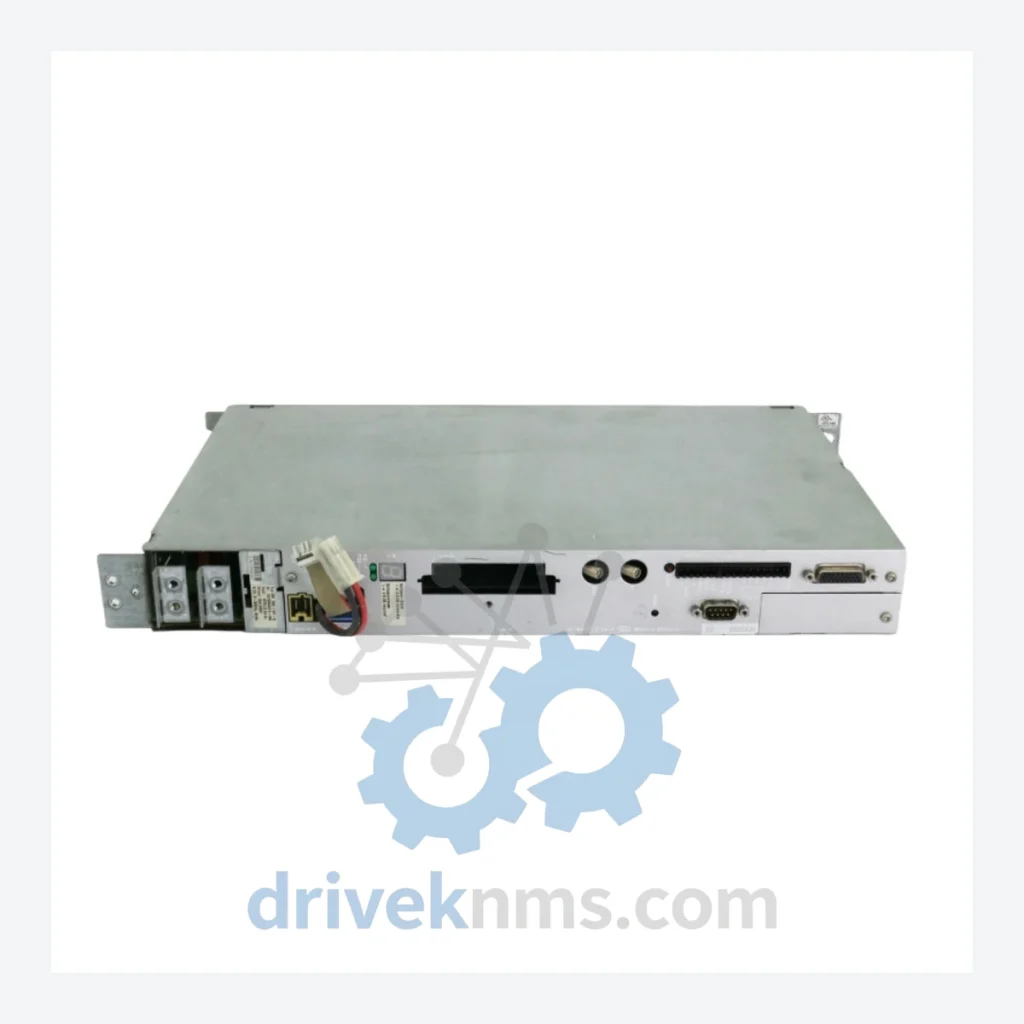

Applied Materials DXM-205E Modules: 0240-70691 E861114-40 DXM-205E CMD55

Technical Dossier

Product Details And Specifications

Applied Materials DXM-205E Series: Comprehensive Module Range and Technical Overview

The Applied Materials DXM-205E series represents a critical tier of chamber-level process control and integration modules deployed across the global semiconductor fabrication infrastructure. These modules are embedded within Applied Materials' Centura and Producer platform tools, which are standard equipment in 200mm and 300mm fabs operated by leading IDMs and foundries. Installation bases span high-criticality environments including chemical vapor deposition (CVD) reactors, physical vapor deposition (PVD) chambers, etch systems, and rapid thermal processing (RTP) units at facilities operated under ISO Class 1–5 cleanroom conditions.

The DXM-205E architecture functions as the chamber-side distributed control node, interfacing between the host system controller and the process chamber's actuators, sensors, and RF subsystems. Its CMD55 variant specifically handles chamber integration tasks: coordinating gas flow control, pressure regulation, temperature monitoring, and interlock logic within a single ruggedized module form factor. These modules are designed for continuous 24/7 operation in corrosive process gas environments and carry qualification requirements aligned with SEMI S2 and S8 safety standards.

The Evolution of DXM-205E Architecture

Applied Materials' distributed module architecture evolved through several generations tied to the Centura platform's expansion from 150mm to 300mm wafer processing. Early chamber control relied on centralized VME-bus controllers with discrete I/O wiring to chamber peripherals. The introduction of the DXM (Distributed eXecution Module) architecture in the mid-1990s decentralized this logic, placing process-aware intelligence directly at the chamber level.

The DXM-205E represents a mature iteration of this architecture, incorporating enhanced EMI shielding, improved thermal management, and expanded diagnostic registers compared to its predecessors (DXM-100, DXM-150, DXM-200). The CMD55 designation identifies the firmware and hardware configuration optimized for chamber integration tasks, distinguishing it from CMD40 (I/O expansion) and CMD60 (RF match control) variants. Compatibility with legacy Centura backplanes (P/N 0010-09390 and 0010-09391) is maintained, enabling drop-in replacement without system-level reconfiguration in most cases. However, firmware version alignment between the DXM-205E and the host MCS (Module Control Software) must be verified prior to installation, as mismatches between DXM firmware revisions E8x and E9x can cause chamber handshake failures.

As of 2026, the DXM-205E series is in the mature/end-of-life phase. Applied Materials no longer manufactures new units; procurement is exclusively through certified refurbishers, OEM spare parts channels, and specialist distributors. Long-term maintenance support for fabs running legacy Centura tools depends entirely on the availability of tested, refurbished DXM-205E inventory.

DXM-205E Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly encountered part numbers within the Applied Materials DXM-205E and associated CMD55 chamber integration module family. Each entry reflects a distinct hardware or firmware configuration:

0240-70691 E861114-40 DXM-205E CMD55: Chamber integration controller, CMD55 config, primary SKU for Centura CVD/PVD chamber nodes.
0240-70692 DXM-205E CMD55: Alternate revision of CMD55 chamber integration module, revised PCB layout for improved thermal dissipation.
0240-70680 DXM-205E CMD40: Digital I/O expansion module, 40-channel configuration, used for auxiliary chamber I/O expansion.
0240-70681 DXM-205E CMD40: CMD40 variant with extended input voltage range for legacy Centura backplane compatibility.
0240-70700 DXM-205E CMD60: RF match network control module, interfaces with 13.56 MHz RF generators in etch and CVD chambers.
0240-70701 DXM-205E CMD60: CMD60 with dual RF channel support for dual-frequency plasma process chambers.
0240-70710 DXM-205E CPU: Central processing unit module for DXM-205E chassis, runs MCS-compatible real-time OS.
0240-70711 DXM-205E CPU: CPU module with expanded SRAM for high-recipe-count process tools.
0240-70720 DXM-205E AI: Analog input module, 16-channel, 16-bit resolution, for pressure transducer and thermocouple signal acquisition.
0240-70721 DXM-205E AI: Analog input module with isolated channels for high-noise RF process environments.
0240-70730 DXM-205E AO: Analog output module, 8-channel, 12-bit, for MFC (mass flow controller) setpoint command signals.
0240-70740 DXM-205E DI: Digital input module, 32-channel, 24VDC, for valve position feedback and interlock status monitoring.
0240-70741 DXM-205E DI: Digital input module with optical isolation, for high-voltage interlock circuits in RTP systems.
0240-70750 DXM-205E DO: Digital output module, 32-channel, relay-isolated, for solenoid valve and pump control.
0240-70760 DXM-205E PSU: Dedicated power supply module for DXM-205E chassis, 24VDC/10A regulated output.
0240-70761 DXM-205E PSU: Redundant power supply module for high-availability chamber configurations.
0240-70770 DXM-205E COMM: Communication adapter module, supports SECS/GEM and RS-422 host interface protocols.
0240-70771 DXM-205E COMM: COMM module with Ethernet/IP option for integration with 300mm fab automation networks.

Sourcing Hard-to-Find & Obsolete DXM-205E Parts

DriveKNMS maintains a dedicated inventory program for end-of-life Applied Materials DXM-205E modules. As Applied Materials has ceased production of this series, fabs operating legacy Centura platforms face a constrained supply chain for critical spare parts. DriveKNMS sources DXM-205E modules through decommissioned fab equipment, certified refurbishment channels, and direct procurement from qualified secondary market suppliers globally.

For obsolete CMD55, CMD40, and CMD60 variants, DriveKNMS provides: verified part number cross-referencing to confirm exact hardware revision compatibility; refurbished units with documented test history; and long-term consignment stocking agreements for high-volume fab customers requiring guaranteed availability windows of 12–36 months. Customers operating multiple Centura chambers are advised to establish buffer stock agreements given the declining availability of DXM-205E units on the secondary market.

Quality Control for the DXM-205E Range

DXM-205E modules present specific test challenges due to their multi-bus backplane architecture and real-time firmware dependencies. DriveKNMS applies the following test protocol to all DXM-205E units prior to shipment:

Backplane bus integrity verification using Applied Materials-compatible test fixtures to confirm correct signal timing on the DXM internal communication bus. Firmware revision identification and logging — each unit's firmware version is recorded and disclosed to the customer prior to shipment. Analog channel calibration for AI and AO modules, verified against NIST-traceable reference standards. Digital I/O functional test across all 32 channels under simulated load conditions. Power supply output verification under full rated load with ripple measurement. Thermal stress cycling (0°C to 55°C) for units designated for long-term spare stock. All test results are documented and shipped with each unit as a test report.
