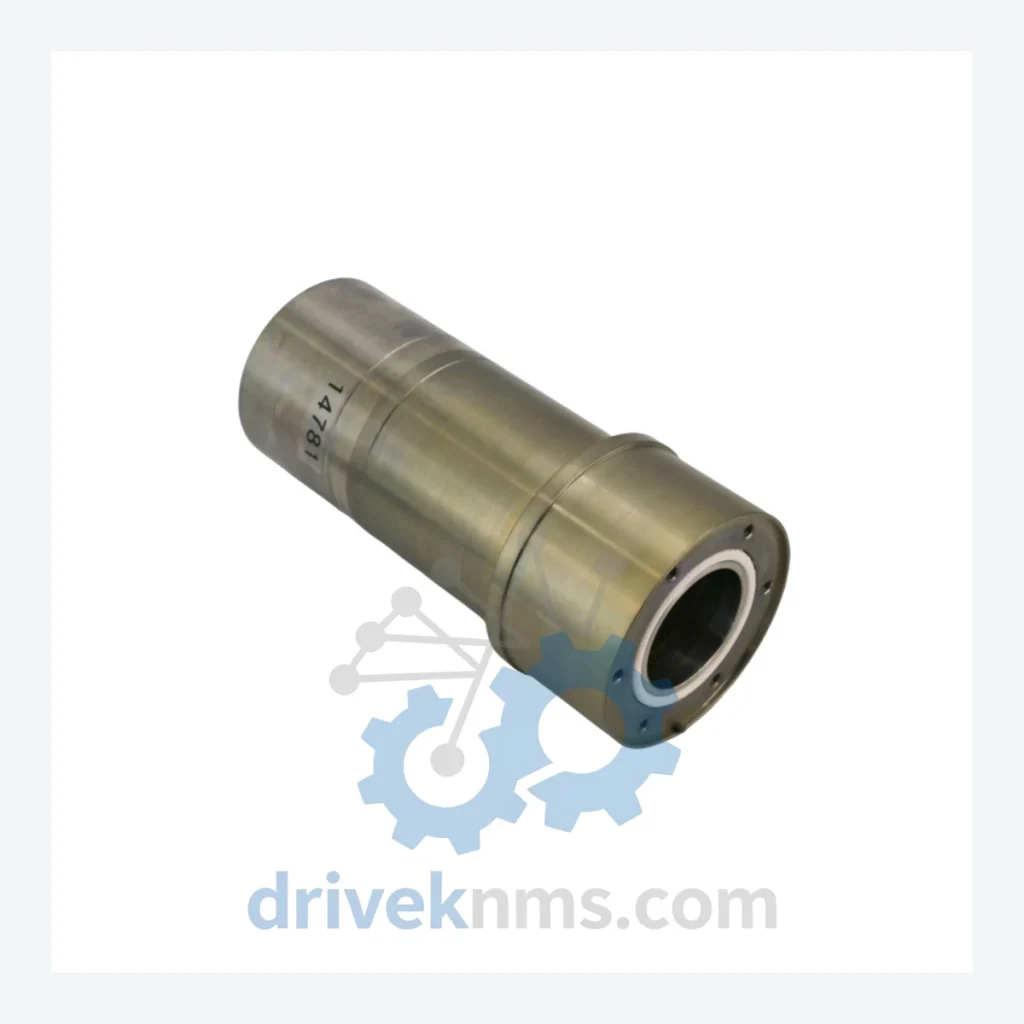

Applied Materials 0040-37593 Ceramic Heater – Obsolete DXZ+ Spare Part for EWHC-NH NHB5749

Technical Dossier

Product Details And Specifications

Applied Materials 0040-37593 Ceramic Heater – Obsolete DXZ+ Spare Part for EWHC-NH NHB5749

When a ceramic heater module fails inside an Applied Materials DXZ+ process chamber, the consequences extend far beyond a single component replacement. For fabs still operating EWHC-NH or NHB5749-based thermal process equipment, the alternative to sourcing this exact part is a forced migration to a newer platform — a project that routinely costs $2M–$8M USD when engineering hours, process requalification, wafer yield loss during transition, and downtime are fully accounted for. The Applied Materials P/N 0040-37593 (AIT UV 0040110-000, EWHC-NH, NHB5749 assembly with ACCS. EWHA12A-C-5L) is no longer available through standard OEM distribution channels. DriveKNMS maintains verified physical stock of this assembly for facilities that cannot afford to treat a heater failure as a platform retirement event.

📩 Critical Spare – Limited Inventory. Secure your unit now:
Email: sale@driveknms.com | WhatsApp: +86 18359293191

Technical Specifications

Note: Electrical parameters (wattage, voltage rating, resistance) are not published here to prevent misapplication. Please provide your chamber configuration when inquiring so our engineers can confirm compatibility.

Solving the Discontinued Hardware Crisis

Applied Materials DXZ+ process chambers were deployed extensively across 200mm and early 300mm fabs during a period when thermal uniformity requirements were met by this specific ceramic heater architecture. The EWHC-NH module’s heater design — including the NHB5749 assembly — was engineered to precise zone-control tolerances that are not directly replicated in current-generation replacement platforms.

Facilities running these chambers face a structural problem: the OEM has moved its support resources to newer product lines, yet the installed base of DXZ+ equipment continues to produce revenue. A single heater failure, if unresolved, can idle a chamber indefinitely. Across a multi-chamber fab, the cascading effect on throughput is immediate and measurable.

The strategic case for maintaining a spare inventory of P/N 0040-37593 is straightforward. The cost of one unit — even at current secondary-market pricing — represents a fraction of one day’s lost production on a functioning chamber. For facilities managing 5–15 year asset extension programs on legacy CVD or thermal process equipment, pre-positioning critical heater assemblies is not optional maintenance planning; it is capital protection.

DriveKNMS specializes in sourcing and holding inventory of exactly these components — parts that have exited OEM supply chains but remain operationally essential to facilities that have made a deliberate decision to extend asset life rather than absorb platform migration costs.

Condition & Reliability Assurance

All Applied Materials 0040-37593 units processed through DriveKNMS undergo a structured 5-step inspection protocol before shipment:

• Step 1 – Visual and Mechanical Inspection: Full external examination for cracks, delamination, or physical damage to the ceramic body and mounting hardware.
• Step 2 – Electrolytic Capacitor Assessment: Where applicable to associated driver boards or control circuitry in the assembly, capacitors are evaluated for age-related degradation, bulging, or leakage — a primary failure mode in components that have been in storage or light service for extended periods.
• Step 3 – Pin and Connector Integrity Check: All electrical connection points are inspected for oxidation, corrosion, and mechanical deformation. Corroded pins are cleaned or flagged for replacement before the unit is cleared.
• Step 4 – Firmware and Configuration Verification: For assemblies with embedded control logic, firmware version is documented and cross-referenced against the customer’s chamber configuration requirements prior to shipment.
• Step 5 – Functional Burn-In (where applicable): Units are subjected to controlled operational testing to confirm thermal response and electrical continuity before being released to inventory.

Each unit ships with a full inspection report. Condition grade (New / Refurbished) is disclosed at time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The 0040-37593 is a direct OEM-equivalent assembly. Installation does not require chamber reconfiguration, process recipe modification, or software changes.
• No re-programming required: Compatible with existing EWHC-NH chamber control architecture. Engineering intervention is limited to standard swap-out procedures.
• Avoids engineering reconstruction costs: Sourcing this part eliminates the need to engage OEM field service for platform migration scoping, process requalification runs, or chamber retrofit projects.
• Supports long-term asset extension: For facilities operating on 5–10 year equipment life extension programs, maintaining access to this assembly is a prerequisite for program continuity.
• Documented provenance: DriveKNMS provides sourcing documentation and inspection records with every shipment, supporting internal maintenance records and audit requirements.

Extending Your Automation Asset Life by 5–10 Years: A Practical Framework

For plant managers and process engineers facing pressure to retire aging Applied Materials DXZ+ equipment, the financial case for continued operation depends on one variable above all others: the availability of critical spare parts. When that supply is secured, the economics of asset extension are consistently favorable against platform replacement.

A structured approach to extending DXZ+ chamber life by 5–10 years involves three operational disciplines. First, identify the five to eight components with the longest lead times and lowest secondary-market availability — ceramic heater assemblies like the 0040-37593 consistently appear on this list. Second, establish a minimum on-hand quantity for each, sized to cover at least two failure events without emergency procurement. Third, schedule proactive replacement of high-wear components at defined chamber-hour intervals rather than waiting for failure events that create unplanned downtime.

The cost of this approach, when modeled against the capital expenditure and production disruption of a platform migration, produces a return that justifies the inventory investment within the first avoided failure event. Facilities that have implemented this model report sustained chamber utilization rates comparable to newer equipment, without the process requalification risk that accompanies platform changes.

DriveKNMS maintains stock of Applied Materials legacy components specifically to support this model. Inquiries about multi-unit procurement or long-term supply agreements are handled directly by our engineering team.

FAQ

Q: What warranty applies to obsolete or refurbished units?
A: DriveKNMS provides a 90-day warranty on all refurbished units covering defects identified under normal operating conditions. New (factory surplus) units carry a 180-day warranty. Warranty terms are confirmed in writing at time of sale.

Q: How do I confirm the unit is new or high-quality refurbished — not a worn-out pull?
A: Every unit is graded before listing. Condition is disclosed at quotation stage, and the inspection report is provided with shipment. We do not ship units that fail our 5-step QA protocol.

Q: Should I buy more than one unit?
A: For facilities with multiple DXZ+ chambers or a long-term asset extension program, holding a minimum of two units is standard practice. Lead times on secondary-market sourcing for this part number are unpredictable. A second unit in reserve eliminates the risk of an extended chamber idle period during a future failure event.

Q: Can you source other Applied Materials DXZ+ components?
A: Yes. DriveKNMS maintains an active sourcing network for Applied Materials legacy parts. Contact us with your full part number list for availability and lead time assessment.
