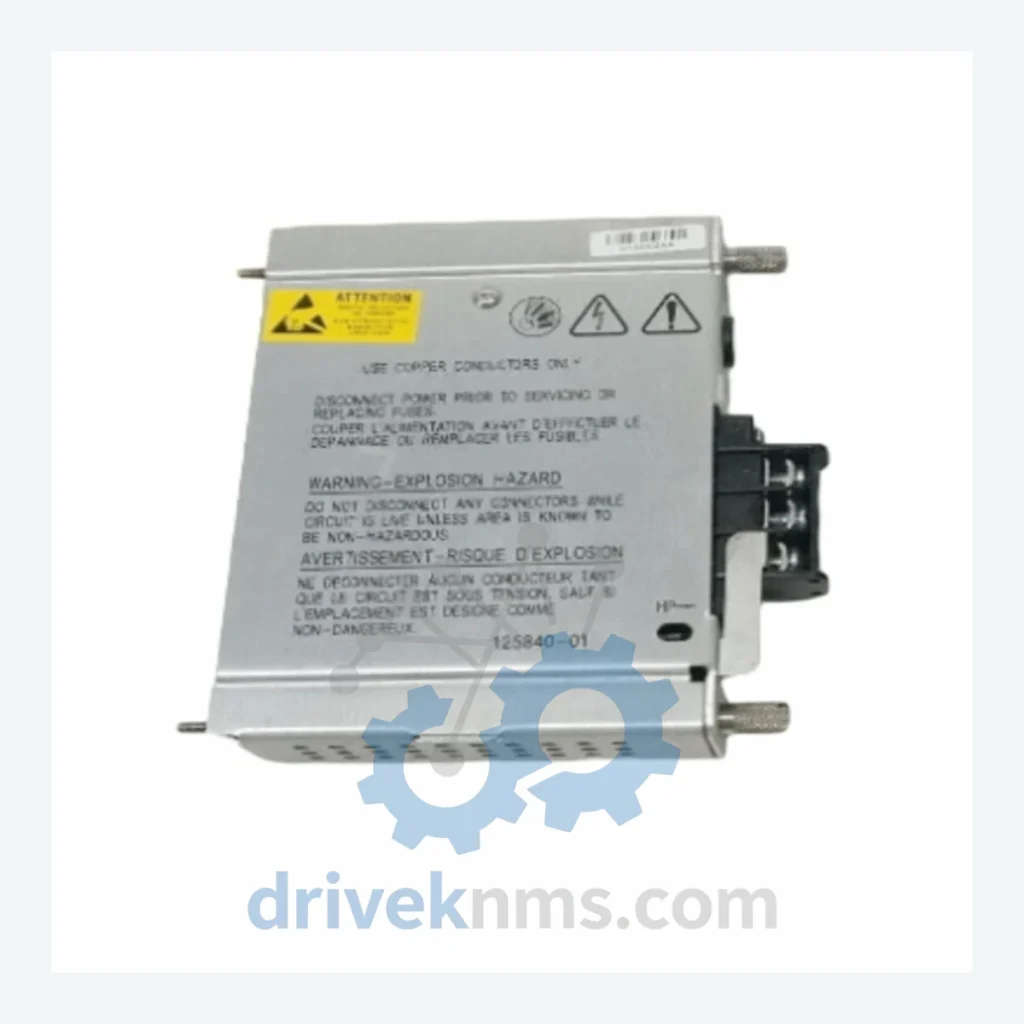

Bently Nevada 3500 Series Modules: 125840-01 Power Input Module

Technical Dossier

Product Details And Specifications

Bently Nevada 3500 Series Technical Notes

The Bently Nevada 3500 Series is the industry-standard machinery protection system deployed across the most demanding continuous-process environments globally — including petrochemical refineries, nuclear power stations, offshore platforms, LNG terminals, and rotating equipment installations in heavy industry. The 3500 rack-based architecture provides real-time vibration, position, speed, and temperature monitoring for critical rotating machinery such as steam turbines, gas turbines, compressors, and pumps. Its modular backplane design allows field-replaceable I/O modules without full system shutdown, a requirement in facilities operating under 24/7 uptime mandates. The 125840-01 Power Input Module is a core rack infrastructure component, providing conditioned DC power distribution to the 3500 rack assembly.

The Evolution of 3500 Series Architecture

The Bently Nevada 3500 Series was introduced in the mid-1990s as a successor to the 3300 Series, transitioning from analog-only signal conditioning to a hybrid digital/analog architecture with serial communication capability. Early rack configurations relied on the 3500/01 Rack Interface Module for host communication via RS-232/RS-422. Subsequent hardware revisions introduced Ethernet-based communication through the 3500/92 and 3500/93 Communication Gateway Modules, enabling integration with DCS platforms including Emerson DeltaV, Honeywell Experion, and ABB 800xA via Modbus TCP and OPC DA/UA protocols.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

3500 Series Full Catalog & Functionalities (SKU List)

Power & Rack Infrastructure

• 125840-01: DC Power Input Module; primary rack power conditioning unit for 3500 chassis
• 125680-01: 3500/15 Power Supply Module; internal AC/DC conversion with status relay output
• 125720-01: 3500/01 Rack Interface Module; rack backplane controller and system bus manager
• 125744-01: 3500/01 Rack Interface Module with enhanced diagnostics firmware

Vibration & Dynamic Measurement I/O

• 125760-01: 3500/40M Proximitor/Seismic Monitor; 4-channel radial vibration and axial position
• 125768-01: 3500/40M with internal termination, 4-channel proximity probe input
• 125792-01: 3500/42M Proximitor/Seismic Monitor; enhanced dynamic range for high-speed machinery
• 125800-01: 3500/44M Aeroderivative Turbine Monitor; high-frequency vibration measurement
• 125808-01: 3500/45 Position Monitor; differential expansion and thrust position measurement
• 125816-01: 3500/46M Hydro Monitor; low-speed shaft vibration for hydro turbines

Speed & Phase Reference

• 125696-01: 3500/25 keyphasor Module; once-per-revolution phase reference signal conditioning
• 125704-01: 3500/25 Keyphasor Module with dual-channel input

Temperature & Process I/O

• 125736-01: 3500/60 Temperature Monitor; 6-channel thermocouple/RTD input with trip relay
• 125752-01: 3500/61 Temperature Monitor; enhanced cold-junction compensation, 6-channel

Communication & Gateway Modules

• 125712-01: 3500/92 Communication Gateway; Modbus RTU/TCP, RS-232/RS-422 interface
• 125728-01: 3500/93 Communication Gateway; Ethernet TCP/IP, OPC DA server capability

Quality Control for the 3500 Series Range

All 3500 Series modules processed by DriveKNMS undergo a structured inspection and functional verification protocol prior to dispatch. Power modules including the 125840-01 are bench-tested for output voltage regulation, inrush current limiting, and status relay continuity under simulated load conditions. Vibration monitor modules are verified against known-good reference signals using calibrated signal generators to confirm channel gain, alert/danger setpoint relay operation, and OK relay function.
