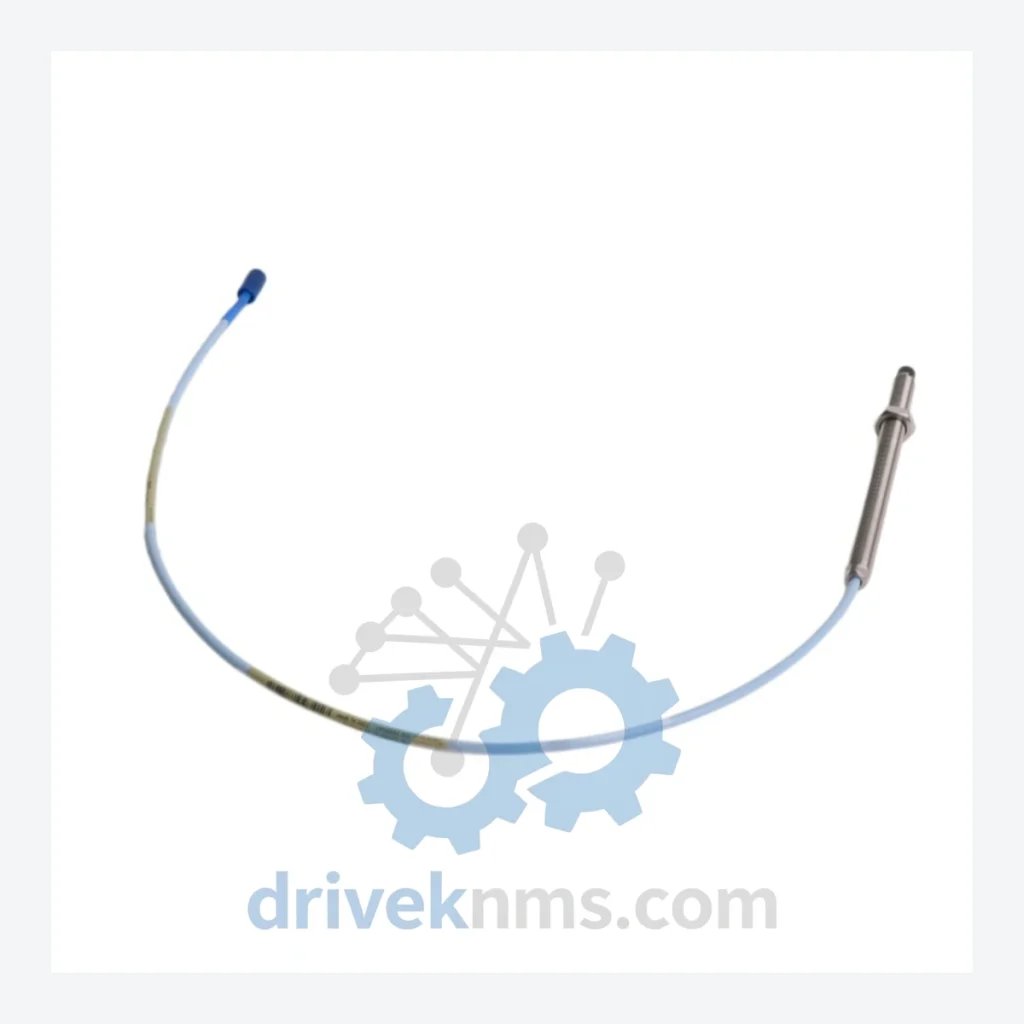

Bently Nevada 330103 Proximity Probe System

Technical Dossier

Product Details And Specifications

Bently Nevada 330103 Series: Comprehensive Module Range and Technical Overview

The Bently Nevada 330103 series is a standardized proximity probe transducer system engineered for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion in rotating machinery. Deployed across petrochemical complexes, nuclear power stations, offshore platforms, LNG terminals, and crude oil refineries, the 330103 system constitutes one of the most widely installed eddy-current transducer families in heavy industrial asset protection globally.

The 330103 probe interfaces directly with the 3300 XL series proximitor sensors and integrates into Bently Nevada's System 1 and 3500 series rack-based machinery protection systems. Its installation base spans critical rotating assets including steam turbines, gas compressors, centrifugal pumps, and large induction motors where continuous vibration monitoring is a regulatory and operational requirement. In nuclear facilities, the 330103 system is frequently specified under IEEE 670 and IEC 61511 functional safety frameworks. In refinery applications, it operates under API 670 fifth edition compliance requirements for machinery protection systems.

The Evolution of 330103 Architecture

The 330103 proximity probe system was introduced as part of Bently Nevada's third-generation eddy-current transducer platform, succeeding the earlier 7200 and 3300 series probes. The core operating principle—electromagnetic eddy-current induction to measure gap distance between probe tip and conductive target—has remained constant, but the mechanical, electrical, and connector specifications have evolved across product generations.

Early Generation (Pre-2000): Initial 330103 variants used a 5-meter integral cable with a fixed armored jacket and a 3/8-28 UNF thread body. These probes were designed for direct connection to the 3300 series proximitor without intermediate extension cables. Connector termination was via a standard BNC interface. Calibration was performed against AISI 4140 steel targets per factory specification.

Mid-Generation (2000–2010): Bently Nevada introduced the modular cable architecture, separating the probe body from the extension cable and proximitor. This allowed field replacement of individual components without disturbing the installed probe. The 330103 series adopted the TQ (Torque-Qualified) connector system for improved vibration resistance in high-cycle environments. The standard system gap voltage was maintained at -10 VDC (±0.2 VDC) at 2.0 mm nominal gap.

Modern Variants (2010–Present): Current 330103 production integrates with the 3500/42M and 3500/45 position monitor modules. The probe body material specification was updated to Inconel 600 for high-temperature applications exceeding 120°C. Extended temperature variants (suffix -HT) were introduced for turbine bearing housings. The 330103 system is now cross-compatible with the Bently Nevada ADAPT.wind and System 1 Evolution software platforms for condition monitoring analytics.

Compatibility Note: The 330103 probe is not directly interchangeable with the 330900 or 330780 series without recalibration of the proximitor output scale factor. Users migrating from 7200 series probes must verify extension cable impedance matching before substitution.

330103 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented 330103 series product range. Each model is defined by its cable length, connector type, temperature rating, and target material calibration. All units operate on the standard Bently Nevada eddy-current principle with a nominal -24 VDC supply and -10 VDC output at 2.0 mm gap.

Proximity Probe Bodies:

• 330103-00-06-10-02-00: 3/8-28 UNF probe, 0.6 m integral cable, standard temperature, BNC connector, AISI 4140 calibration
• 330103-00-06-10-02-CN: 3/8-28 UNF probe, 0.6 m integral cable, standard temperature, BNC connector, CN-suffix (China regional spec)
• 330103-00-08-10-02-00: 3/8-28 UNF probe, 0.8 m integral cable, standard temperature, BNC connector, general-purpose radial vibration
• 330103-00-13-50-12-RU: 3/8-28 UNF probe, 1.3 m integral cable, 5.0 mm range, 1/2-20 UNF jam nut, RU-suffix (Russian Federation regional compliance)
• 330103-00-13-10-02-00: 3/8-28 UNF probe, 1.3 m integral cable, standard temperature, BNC connector, standard industrial
• 330103-00-13-10-02-CN: 3/8-28 UNF probe, 1.3 m integral cable, BNC connector, CN-suffix regional variant
• 330103-00-18-10-02-00: 3/8-28 UNF probe, 1.8 m integral cable, standard temperature, BNC connector, extended reach installation
• 330103-00-18-10-02-CN: 3/8-28 UNF probe, 1.8 m integral cable, BNC connector, CN-suffix regional variant
• 330103-00-25-10-02-00: 3/8-28 UNF probe, 2.5 m integral cable, standard temperature, BNC connector, long-cable radial vibration
• 330103-00-25-10-02-CN: 3/8-28 UNF probe, 2.5 m integral cable, BNC connector, CN-suffix regional variant

High-Temperature & Special Application Variants:

• 330103-00-13-10-02-HT: High-temperature rated probe body, 1.3 m cable, rated to 177°C continuous, turbine bearing housing applications
• 330103-00-18-10-02-HT: High-temperature rated probe body, 1.8 m cable, rated to 177°C continuous, steam turbine journal bearing monitoring
• 330103-00-25-10-02-HT: High-temperature rated probe body, 2.5 m cable, rated to 177°C continuous, high-temperature compressor trains

Extension Cables (System Completion Components):

• 330130-045-00-00: 330103-compatible extension cable, 4.5 m, standard impedance, TQ connector both ends
• 330130-080-00-00: 330103-compatible extension cable, 8.0 m, standard impedance, TQ connector both ends, long-run installations
• 330130-120-00-00: 330103-compatible extension cable, 12.0 m, standard impedance, TQ connector both ends, remote proximitor mounting

Associated Proximitor Sensors (System-Level Reference):

• 330180-X1-05: 3300 XL 8mm proximitor, standard range, DIN rail mount, pairs with 330103 probe for complete transducer system
• 330180-X1-CN: 3300 XL 8mm proximitor, CN-suffix, pairs with CN-suffix 330103 probes

Sourcing Hard-to-Find & Obsolete 330103 Parts

The 330103 series entered its mature lifecycle phase in the mid-2010s. While Baker Hughes (the current owner of the Bently Nevada product line) continues to manufacture select variants, a significant portion of the catalog—particularly regional-suffix models (RU, CN), high-temperature variants, and early-generation BNC-terminated probes—has transitioned to limited availability or end-of-life status through OEM channels.

DriveKNMS maintains a dedicated inventory of 330103 series probes, extension cables, and associated proximitor components sourced through verified industrial surplus, decommissioned plant asset recovery, and authorized distributor channels. Our procurement scope covers:

• New-old-stock (NOS) 330103 probe bodies with original factory calibration certificates
• Reconditioned 330103 units with full re-calibration against AISI 4140 reference targets
• Regional-suffix variants (RU, CN) not available through standard Western distribution channels
• Complete transducer system kits (probe + extension cable + proximitor) for rapid plant maintenance deployment
• Emergency same-day dispatch for critical rotating machinery protection failures

For plants operating legacy 3300 or 3500 series machinery protection racks, the 330103 probe remains the correct field replacement unit. DriveKNMS provides lifecycle extension support including cross-reference verification, gap voltage calibration documentation, and installation torque specifications to ensure compliant replacement without system reconfiguration.

Quality Control for the 330103 Range

The 330103 proximity probe system presents specific quality verification requirements due to its precision eddy-current sensing mechanism and the critical nature of its application in machinery protection. DriveKNMS applies the following test protocol to all 330103 units processed through our facility:

• Gap Voltage Linearity Test: Each probe is tested against a calibrated AISI 4140 steel target across the full measurement range (0.25 mm to 2.54 mm). Output voltage linearity must conform to the Bently Nevada scale factor of 7.87 V/mm (200 mV/mil) ±1%.
• Integral Cable Continuity & Insulation Resistance: Center conductor continuity and shield integrity are verified. Insulation resistance between conductor and shield must exceed 100 MΩ at 500 VDC.
• Connector Interface Inspection: BNC and TQ connector interfaces are inspected for pin deformation, corrosion, and thread integrity. Damaged connectors are replaced with OEM-specification parts before dispatch.
• Probe Body Dimensional Verification: Thread specification (3/8-28 UNF) and probe tip geometry are verified against OEM drawings. Tip surface condition is inspected for impact damage or contamination that would affect eddy-current field uniformity.
• High-Temperature Variant Thermal Cycling: HT-suffix probes undergo thermal cycling from ambient to 150°C to verify cable jacket and connector integrity under thermal stress prior to shipment.
• Calibration Certificate Issuance: All units are shipped with a DriveKNMS calibration record documenting test date, technician ID, gap voltage measurements at 1.0 mm, 2.0 mm, and 2.54 mm, and pass/fail determination against Bently Nevada specification.
