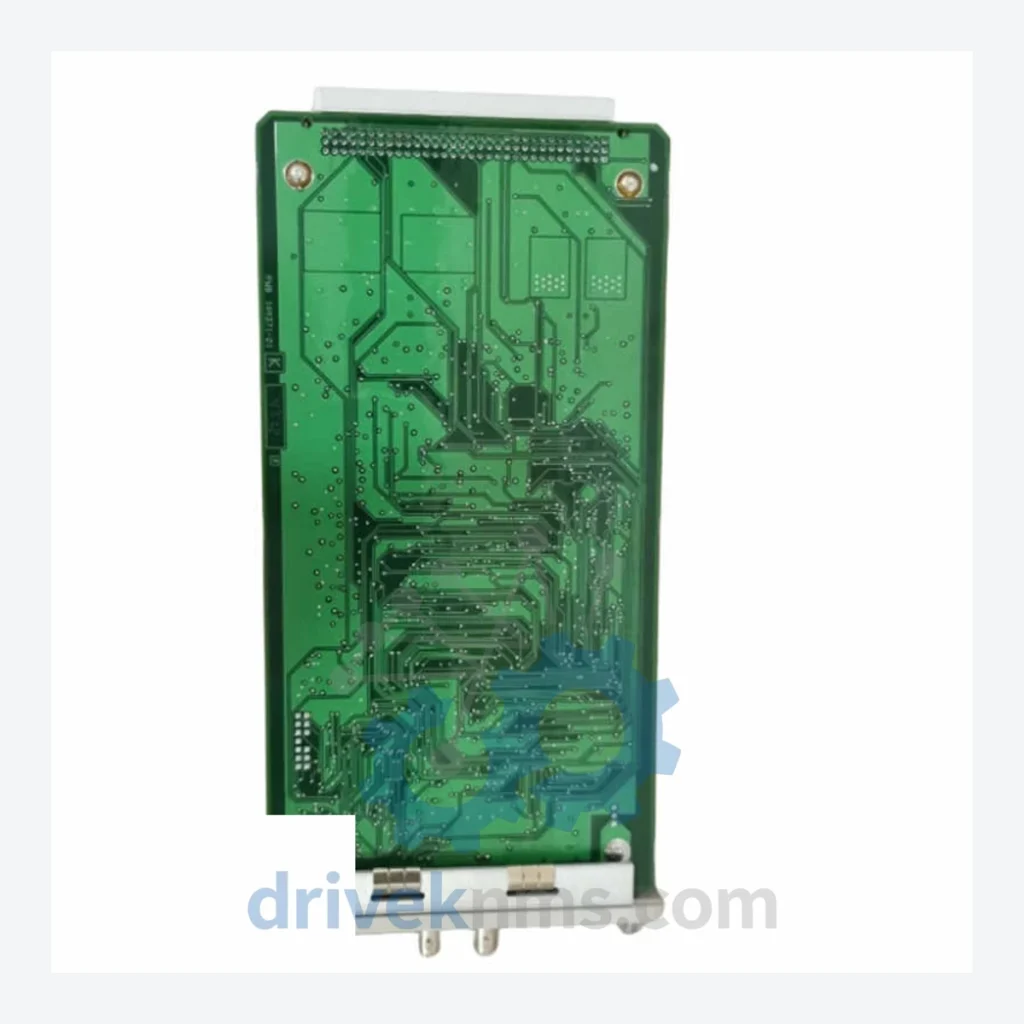

Bently Nevada 3500/25 149369-01 Keyphasor Module – Obsolete 3500 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 3500/25 149369-01 Keyphasor Module – Obsolete 3500 Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Bently Nevada 3500 Series was engineered for decades of service life, and many facilities are still running racks installed in the 1990s and early 2000s. The 3500/25 Keyphasor module provides the phase reference signal that the entire rack depends on for vector-based vibration analysis. Without a functioning Keyphasor input, 1X and 2X amplitude measurements become unreliable, and the system's ability to detect rotor imbalance, misalignment, and bearing defects is compromised.

Facilities that maintain a one- or two-unit buffer of the 3500/25 149369-01 can absorb a module failure as a planned maintenance event rather than a production crisis. This is the operational logic behind strategic obsolete parts inventory — not hoarding, but asset protection with a defined cost basis.

Condition & Reliability Assurance

Every 3500/25 149369-01 unit that leaves DriveKNMS undergoes a structured 5-step inspection protocol before dispatch review:

• Step 1 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in modules of this vintage. Each unit is inspected for capacitor bulging, leakage residue, and ESR deviation from specification.
• Step 2 – Firmware Version Verification: The firmware revision is confirmed and documented. Mismatched firmware between Keyphasor and monitor modules is a known source of intermittent phase errors.
• Step 3 – Pin and Connector Inspection: All backplane connector pins are examined under magnification for oxidation, mechanical deformation, and corrosion. Affected pins are cleaned or flagged for disclosure.
• Step 4 – Board-Level Visual Inspection: PCB traces, solder joints, and component seating are reviewed for cold joints, cracking, and contamination consistent with long-term storage or prior field use.
• Step 5 – Functional Verification: Where test infrastructure permits, the module is bench-tested for basic signal conditioning response prior to packaging.

Condition grade (New, Refurbished-Grade A, or Tested-Used) is disclosed on every order confirmation. No unit ships without a documented inspection record.

Key Features for System Maintenance

• Drop-in replacement: The 149369-01 installs directly into the existing 3500 rack slot with no backplane modification required.
• No reprogramming required: Keyphasor configuration is held in the rack's System Monitor, not in the module itself. Replacement does not require re-entry of transducer gap voltages or phase reference parameters in most standard configurations.
• Avoids engineering reconstruction costs: Substituting a like-for-like module eliminates the need for a formal Management of Change (MOC) process in most jurisdictions, keeping the repair within the maintenance budget rather than the capital budget.
• Preserves existing alarm and trip logic: All setpoints, time delays, and relay configurations remain intact. There is no revalidation burden on the safety instrumented system.
• Extends asset life by 5–10 years: A single spare module, properly stored, can defer a multi-hundred-thousand-dollar system replacement project by a full equipment lifecycle interval. For rotating machinery with a 20–30 year design life, this is a defensible maintenance investment.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced from decommissioned industrial facilities or authorized secondary-market channels. Physical markings, board revision codes, and serial number formats are cross-referenced against known-good reference units. Suspected non-genuine units are quarantined and not offered for sale.

Q: Should I buy more than one unit?
A: For any facility running a single 3500 rack with no hot-standby, holding a minimum of one spare 3500/25 module is standard practice. Facilities with multiple racks or critical continuous-process applications typically maintain two units. Given that secondary-market availability of the 149369-01 is finite and declining, procurement decisions made today carry a lower cost and lower risk profile than decisions made after a failure event.

Q: Can this module be used with a 3500/15 or 3500/20 rack?
A: The 3500/25 is a dedicated Keyphasor module designed for the 3500 rack architecture. Compatibility with specific rack configurations should be confirmed against your system's rack layout drawing before ordering. DriveKNMS technical staff can assist with compatibility verification upon request.
