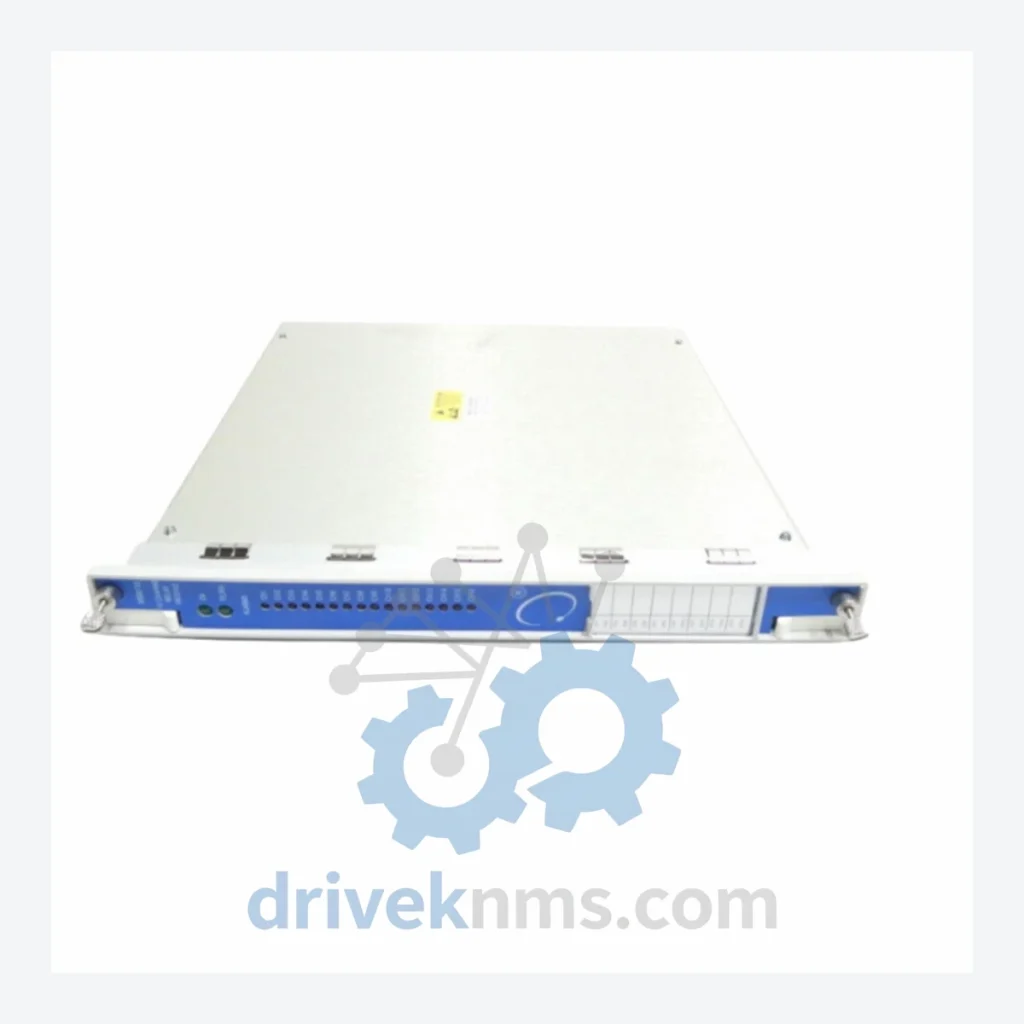

Bently Nevada 3500/33 149986-01 Relay Module – Obsolete 3500 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 3500/33 149986-01 Relay Module – Obsolete 3500 Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are based on published Bently Nevada 3500 Series documentation. Do not substitute with unverified alternatives in safety-critical applications.

Solving the Discontinued Hardware Crisis

The Bently Nevada 3500 Series has been the industry standard for continuous machinery protection on rotating equipment — gas turbines, steam turbines, centrifugal compressors, and large pumps — for decades. The 3500/33 Relay Module serves as the output interface between the monitoring system and plant safety logic, converting vibration and process alarm states into relay contact closures that drive shutdown sequences or annunciator panels.

When Baker Hughes (which acquired Bently Nevada) discontinued the 3500 Series in favor of the System 1 and 3701 platforms, facilities were left with a difficult choice: fund a full protection system replacement — a project that typically requires 12–24 months of engineering, FAT/SAT testing, and SIL re-certification — or maintain the existing 3500 rack with verified spare parts.

Facilities that have successfully extended 3500 Series operational life share a common approach: they maintain a minimum of one cold-spare relay module per rack, they document firmware revision levels across all installed cards, and they establish a qualified supplier relationship before a failure event — not after one.

Condition & Reliability Assurance

For discontinued modules, condition verification is not optional — it is the difference between a reliable spare and a liability. DriveKNMS applies a 5-step QA process to all obsolete Bently Nevada modules before dispatch review:

• Step 1 – Visual Inspection: Full board inspection for physical damage, corrosion, and solder joint integrity. Relay contact pins and edge connector fingers are examined under magnification.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in stored relay modules. Each capacitor is checked for bulging, leakage, and ESR deviation. Modules with suspect capacitors are flagged and not shipped.
• Step 3 – Firmware Version Verification: Where accessible, firmware or EPROM revision is documented and matched against the customer's installed revision to prevent compatibility conflicts.
• Step 4 – Pin and Connector Integrity Check: All backplane connector pins are inspected for oxidation, bending, and contact resistance. Corroded contacts are a known cause of intermittent relay faults in stored modules.
• Step 5 – Functional Bench Test: Relay coil actuation and contact continuity are verified under controlled conditions prior to packaging.

Modules that do not pass all five steps are not offered for sale. Condition grade (New Surplus, Refurbished, or Tested Used) is disclosed on every order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The 3500/33 149986-01 installs directly into an existing 3500 Series rack slot with no rack modification required.
• No reprogramming required: Relay configuration is stored in the rack's System Interface Module (SIM), not in the relay module itself. Replacement does not require re-entry of setpoints or relay logic.
• No engineering rework: Field wiring terminates on the I/O module, not the relay card. Swap time for a trained technician is typically under 30 minutes.
• Avoids system-wide recertification: Replacing a like-for-like module within a certified safety system generally does not trigger full SIL re-validation, unlike a platform migration.
• Capital expenditure deferral: Maintaining the 3500 rack with verified spares postpones a $500K–$2M+ system replacement project, freeing capital for other plant priorities.

Q: Should I buy more than one unit?
A: For facilities with multiple 3500 racks or critical single-train machinery, holding two cold spares is standard practice. The 3500/33 is no longer manufactured, and market availability will continue to decline. Procurement cost today is a fraction of emergency sourcing cost during an unplanned outage.

Q: Can this module be used in a SIL-rated safety system?
A: The 3500 Series was widely deployed in SIL 1 and SIL 2 applications. Whether a refurbished module is acceptable in a certified safety loop is a determination that must be made by the facility's functional safety engineer in accordance with IEC 61511. DriveKNMS provides condition documentation to support that assessment.
