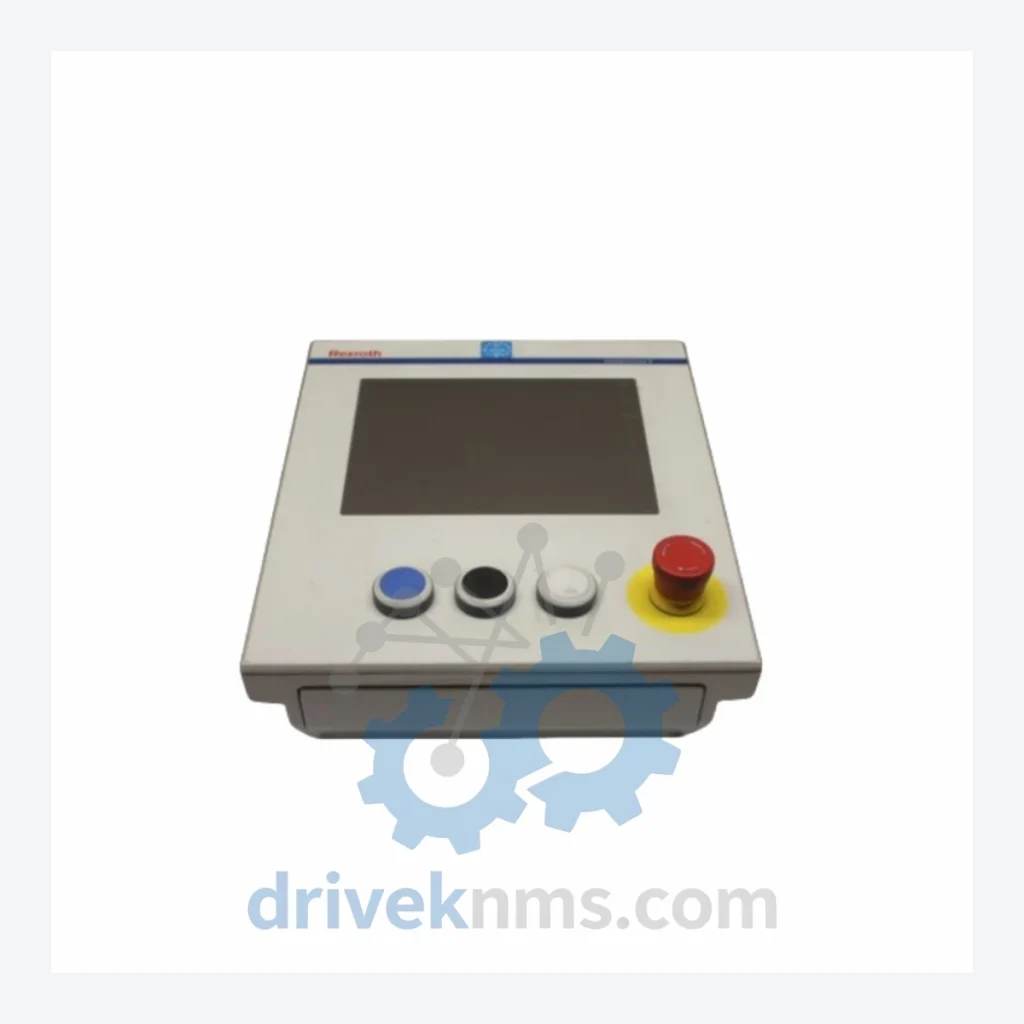

Bosch Rexroth VDP40.3DIN-D1-NN-CG Control Display Unit – Obsolete Indramat Spare Part

Technical Dossier

Product Details And Specifications

Bosch Rexroth VDP40.3DIN-D1-NN-CG Control Display Unit – Obsolete Indramat Spare Part

When a control display unit fails on a legacy Bosch Rexroth drive system, the consequences extend far beyond a single component. The VDP40.3DIN-D1-NN-CG is the operator interface backbone for Indramat-era servo drive platforms — systems that remain embedded in precision manufacturing lines, press automation, and machine tool operations worldwide. Replacing this unit with a modern equivalent is not a swap; it is a full engineering project. Rewriting PLC logic, reconfiguring drive parameters, retraining operators, and validating the new system against production tolerances can cost a facility anywhere from several hundred thousand to several million dollars in downtime, engineering fees, and lost output. DriveKNMS holds verified stock of the VDP40.3DIN-D1-NN-CG. Securing a spare now is the lowest-cost insurance policy available to any plant manager running this hardware.

Technical Specifications

Note: Electrical parameters not confirmed from verified documentation are intentionally omitted. Contact us for datasheet support.

Solving the Discontinued Hardware Crisis

The Bosch Rexroth Indramat product line — including the VDP40 display platform — was progressively discontinued as Rexroth transitioned its drive portfolio to the IndraDrive and Rexroth Electric Drives generations. Facilities that integrated Indramat TDM or DDS servo systems in the 1990s and early 2000s now face a hard reality: the OEM no longer manufactures replacement parts, authorized service channels have dried up, and the engineering knowledge required to migrate away from these platforms is both scarce and expensive.

The VDP40.3DIN-D1-NN-CG is not a peripheral accessory. It is the primary operator interface through which technicians monitor drive status, acknowledge faults, and initiate controlled shutdowns. A failed display unit renders the drive system non-operable. Without a direct replacement, the path forward involves either sourcing from the secondary market or committing to a full drive system retrofit — a project that routinely disrupts production for weeks and carries six-figure engineering costs at minimum.

For plant managers and maintenance engineers responsible for protecting capital assets, the calculus is straightforward: a verified spare unit sourced now costs a fraction of what a forced retrofit will cost under production pressure. Facilities running Indramat-based lines in automotive stamping, plastics injection molding, and precision machining have extended asset service life by 5 to 10 years through disciplined spare parts management. The strategy is not complicated — identify the single-point-of-failure components on each drive axis, secure verified replacements before failure occurs, and document the swap procedure so any qualified technician can execute it without specialist support. The VDP40.3DIN-D1-NN-CG is precisely the type of component that belongs in that critical spares inventory.

Condition & Reliability Assurance

Every VDP40.3DIN-D1-NN-CG unit processed by DriveKNMS passes a structured 5-step quality verification protocol before it is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Full external inspection for housing cracks, connector damage, and panel wear. Units with compromised enclosures are rejected.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in legacy display and control hardware. Each unit is evaluated for capacitor condition; units showing ESR degradation or visible swelling are flagged for recapping or rejected.
• Step 3 – Firmware Version Verification: Where accessible, firmware revision is documented and cross-referenced against known compatible versions for the target drive platform. Incompatible firmware configurations are disclosed prior to sale.
• Step 4 – Connector and Pin Integrity Check: All interface connectors are inspected for corrosion, bent pins, and contact oxidation. Affected contacts are cleaned or the unit is rejected.
• Step 5 – Functional Power-On Test: Units are powered and tested for display initialization and basic communication response where test infrastructure permits.

Condition grades (New, Refurbished-Tested, or Used-Tested) are disclosed on each order confirmation. No unit is shipped without a documented condition record.

Key Features for System Maintenance

• Drop-in Replacement: The VDP40.3DIN-D1-NN-CG is a direct hardware replacement for the same part number. No PLC reprogramming, no drive parameter reconfiguration, no wiring modifications required.
• No Engineering Rework: Unlike a platform migration, installing a like-for-like spare eliminates the need for system integrator involvement. A qualified maintenance technician can execute the swap using existing documentation.
• Production Continuity: Restoring the original hardware configuration means the drive system returns to its validated operating state. There is no re-commissioning risk, no new failure modes introduced by unfamiliar hardware, and no retraining burden on the operations team.
• Cost Containment: The cost of a verified spare unit is fixed and known. The cost of an unplanned retrofit under production pressure is neither. Facilities that maintain a critical spares buffer for legacy drive components consistently report lower total maintenance costs over a 5-year horizon than those that operate without one.

FAQ

What warranty applies to a discontinued part like the VDP40.3DIN-D1-NN-CG?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Warranty terms are confirmed in writing on each order. Extended coverage options are available — contact us to discuss.

How do I know the unit is genuine and not a counterfeit?
All units are sourced through verified industrial surplus and decommissioning channels. Bosch Rexroth part markings, serial number formats, and hardware construction are cross-checked against known-good reference units. We do not source from unverified brokers.

Should I buy more than one unit?
For any production line where this display unit is a single point of failure, holding at least one cold spare is standard practice. For multi-axis systems or facilities with multiple machines running the same platform, a minimum buffer of two to three units is a defensible position. Once OEM stock is exhausted from the secondary market, sourcing becomes progressively more difficult and expensive.

Can you source other Indramat or Rexroth legacy components?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components across the Bosch Rexroth, Indramat, Siemens, Allen-Bradley, and Fanuc ecosystems. Submit your parts list for a sourcing assessment.
