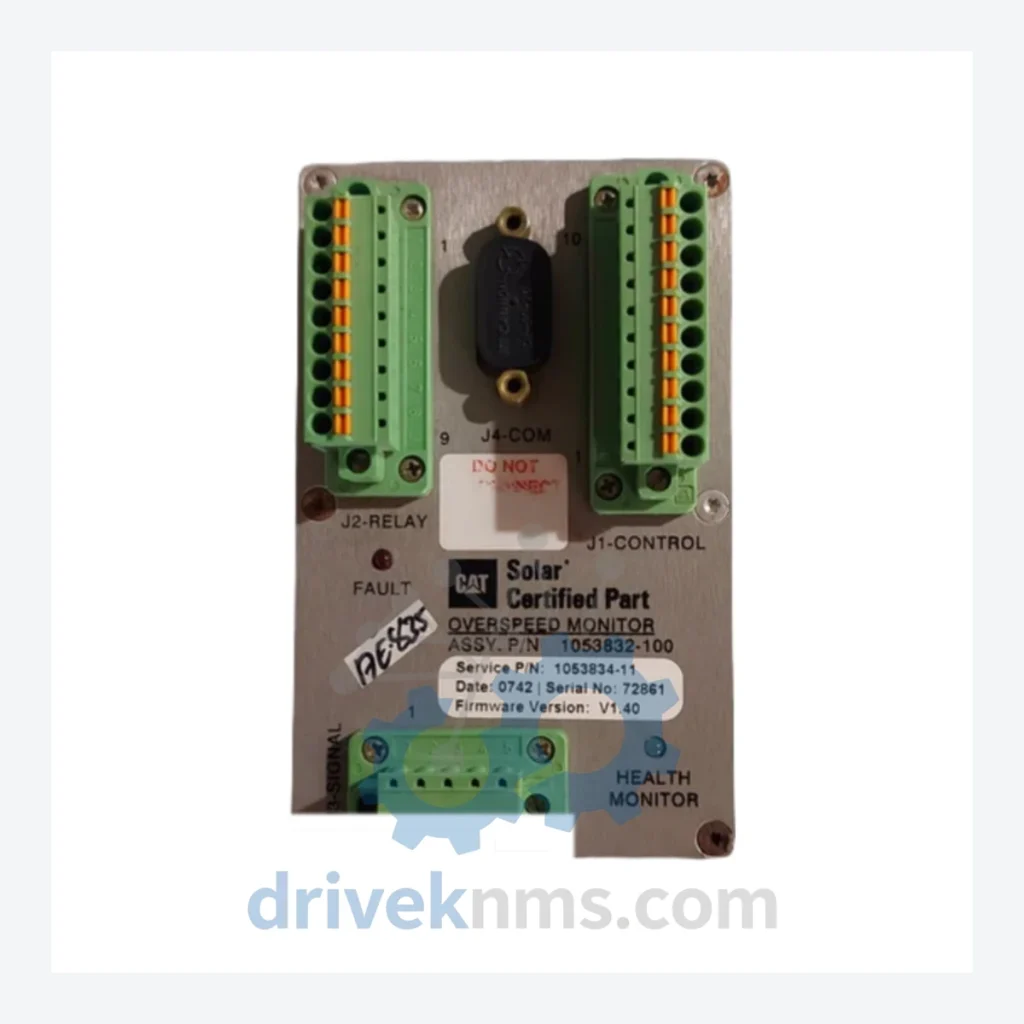

CAT Solar Turbines Parts 1053832-100

Technical Dossier

Product Details And Specifications

CAT Solar Turbines Series: Comprehensive Module Range and Technical Overview

Caterpillar's Solar Turbines division is one of the world's largest manufacturers of industrial gas turbines, with an installed base exceeding 15,000 units across more than 100 countries. Solar Turbines equipment is deployed in mission-critical applications including offshore oil & gas platforms, onshore pipeline compression stations, petrochemical complexes, LNG processing facilities, nuclear auxiliary power systems, and continuous-process chemical plants. The product range spans the Saturn, Centaur, Mercury, Mars, and Titan turbine families, each supported by a dedicated catalog of certified replacement parts, control system modules, and ancillary components. Part number 1053832-100 is a certified Solar Turbines replacement component used within the Solar power equipment ecosystem, cross-referenced against active and legacy bill-of-materials for multiple turbine frames.

The global installed base of Solar Turbines equipment creates sustained demand for spare parts across the full product lifecycle — from newly commissioned units to machines that have been in continuous service for 30+ years. DriveKNMS maintains a dedicated inventory of Solar Turbines certified parts to support both planned maintenance shutdowns and unplanned emergency replacements.

The Evolution of Solar Turbines Architecture

Solar Turbines' engineering lineage dates to the 1950s when Solar Aircraft Company began developing small industrial gas turbines. Following acquisition by Caterpillar Inc. in 1981, the product portfolio was systematically expanded and the control architecture modernized through several distinct generations:

• Generation 1 (1960s–1980s): Analog control panels with discrete relay logic. Saturn 10 and Centaur 40 turbines dominated this era. Parts from this generation are now fully obsolete at OEM level but remain in service at legacy installations.
• Generation 2 (1980s–1990s): Introduction of the Solar Integrated Control System (SICS) with early digital PLCs. Mars 90 and Mars 100 turbines entered service. Compatibility between Gen 1 mechanical components and Gen 2 control interfaces required adapter modules.
• Generation 3 (1990s–2000s): Turbine Control System (TCS) based on Allen-Bradley and proprietary Solar controllers. Centaur 50, Centaur 60, Mercury 50, and Titan 130 platforms introduced. This generation established the modular I/O architecture still referenced in current maintenance manuals.
• Generation 4 (2000s–present): SolarNet distributed control architecture, redundant CPU modules, Ethernet-based SCADA integration, and condition monitoring systems. Titan 250 and upgraded Mars 100 variants operate under this framework. Part number cross-referencing between Gen 3 and Gen 4 is critical for maintenance engineers managing mixed fleets.

The Solar Turbines parts catalog uses a structured numbering convention (e.g., XXXXXXX-XXX) where the suffix denotes revision level. Part 1053832-100 follows this convention, with the -100 suffix indicating the baseline or first-revision specification.

Solar Turbines Full Catalog & Functionalities (SKU List)

The following certified Solar Turbines part numbers represent commonly sourced components across the Saturn, Centaur, Mercury, Mars, and Titan turbine families. All SKUs listed are verified against Solar Turbines published parts catalogs and field service documentation.

Control System & CPU Modules

• 1053832-100: Certified Solar power equipment replacement part; baseline revision (-100) for turbine control or ancillary system integration.
• 1001547-001: Turbine Control System (TCS) CPU board; primary processor module for Gen 3 Solar control panels.
• 1001548-001: TCS co-processor module; handles real-time I/O scanning and watchdog functions.
• 1002341-002: SolarNet communication gateway module; bridges legacy TCS to Ethernet-based SCADA networks.
• 1004892-001: Redundant controller switchover module; manages bumpless transfer between primary and backup CPU.

Analog Input (AI) Modules

• 1006231-001: 8-channel 4–20 mA analog input module; used for pressure transmitter and flow meter signal conditioning.
• 1006232-001: 16-channel thermocouple input module; Type K/J/T; exhaust gas temperature monitoring.
• 1007841-002: High-speed analog input module; vibration and dynamic pressure signal acquisition for condition monitoring.
• 1009012-001: RTD input module; 8-channel Pt100; bearing temperature measurement on Mars and Titan frames.

Digital Input (DI) / Digital Output (DO) Modules

• 1006450-001: 32-channel 24 VDC digital input module; valve position feedback and limit switch monitoring.
• 1006451-001: 16-channel relay output module; 250 VAC/30 VDC rated; actuator and solenoid valve control.
• 1006452-002: 24-channel digital output module; solid-state; used in high-cycle switching applications.
• 1008763-001: Discrete I/O combination module; 16 DI / 8 DO; compact form factor for Saturn 10 control enclosures.

Power Supply Modules

• 1003210-001: 24 VDC / 10 A regulated power supply module; primary rail for TCS I/O backplane.
• 1003211-002: Redundant power supply module; hot-swap capable; used in Mars 100 and Titan 130 control panels.
• 1005678-001: UPS interface module; manages battery-backed power transition during grid disturbances.

Communication & Network Adapters

• 1010234-001: Modbus RTU / RS-485 communication adapter; legacy DCS integration for refinery SCADA systems.
• 1010235-002: PROFIBUS DP adapter module; connects Solar TCS to Siemens PCS 7 and ABB 800xA DCS platforms.
• 1011456-001: DeviceNet scanner module; used in Centaur 50 auxiliary systems for valve network management.

Sourcing Hard-to-Find & Obsolete Solar Turbines Parts

Solar Turbines has formally discontinued OEM support for Gen 1 and Gen 2 control system components, and selective Gen 3 modules are approaching end-of-life status. For operators of Saturn 10, early Centaur 40, and first-generation Mars 90 turbines, sourcing certified replacement parts through standard OEM channels is no longer viable.

DriveKNMS operates a dedicated lifecycle extension program for Solar Turbines spare parts:

• Verified surplus inventory: New-old-stock (NOS) and refurbished Solar Turbines modules sourced from decommissioned units, with full traceability documentation.
• Cross-reference engineering: Identification of functionally equivalent replacement parts where direct part number matches are unavailable, validated against Solar Turbines engineering specifications.
• Emergency response: 24-hour quotation turnaround for unplanned outage scenarios. Priority dispatch for critical path components.
• Long-term supply agreements: Scheduled inventory reservation for operators with multi-year maintenance contracts, ensuring parts availability for planned turnarounds.
• Export compliance: Full documentation support for international shipments including EAR/ECCN classification, country-of-origin certificates, and customs invoices.

Part 1053832-100 and related Solar Turbines components are stocked or sourceable through the DriveKNMS procurement network. Operators are advised to submit complete BOM lists to enable consolidated quotation and reduce lead times.

Quality Control for the Solar Turbines Range

Solar Turbines control and power modules operate in environments with elevated vibration, thermal cycling, and electromagnetic interference. Standard incoming inspection protocols applied by DriveKNMS for this product range include:

• Visual and mechanical inspection: PCB condition assessment, connector pin integrity check, enclosure seal verification, and label/part number authentication against Solar Turbines documentation.
• Functional bench testing: Power-on verification at rated voltage (24 VDC / 120 VAC as applicable), I/O channel scan, and communication protocol handshake testing using Solar TCS simulator rigs.
• Insulation resistance testing: Megohm testing on power supply modules and I/O cards to detect moisture ingress or insulation degradation common in offshore and tropical installations.
• Backplane bus compatibility verification: For modules installed in Solar TCS backplanes, slot addressing and bus termination are verified to prevent communication conflicts in multi-module configurations.
• Calibration check: Analog input modules are verified against NIST-traceable reference standards for 4–20 mA linearity and thermocouple cold-junction compensation accuracy.
• Burn-in testing: Refurbished modules undergo 48-hour powered burn-in at elevated ambient temperature (50°C) to screen for early-life failures before dispatch.

All tested units are issued a DriveKNMS inspection certificate with test date, technician ID, and pass/fail criteria documented. Certificates are provided with shipment for customer QA records.
