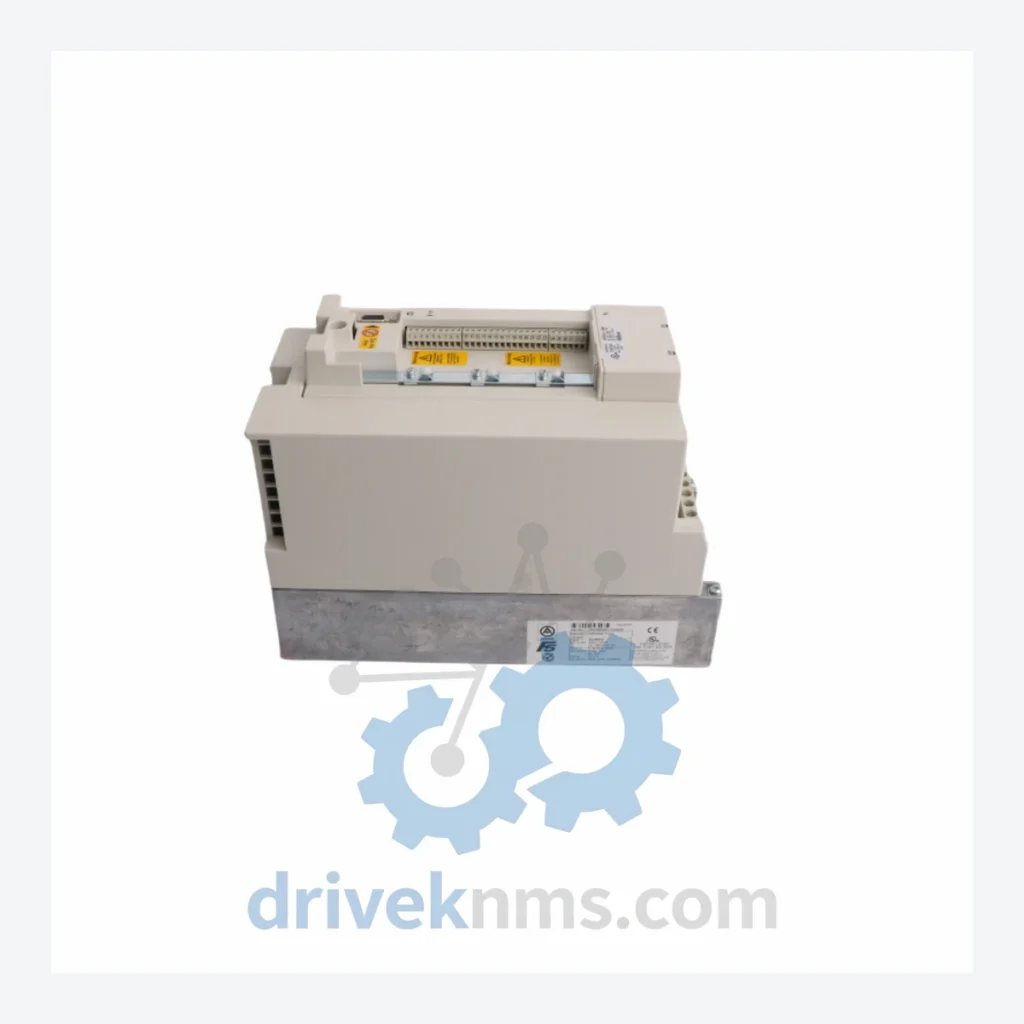

KEB COMBIVERT F5 Series Frequency Converters: 15F5G1E-Y001

Technical Dossier

Product Details And Specifications

KEB COMBIVERT F5 Series: Comprehensive Module Range and Technical Overview

The KEB COMBIVERT F5 is a general-purpose AC variable frequency drive (VFD) series manufactured by KEB Antriebstechnik (Karl E. Brinkmann GmbH), Germany. It occupies a dominant position in heavy industrial installations across chemical processing plants, nuclear auxiliary systems, oil refineries, and continuous-process manufacturing lines. The F5 series covers a power range from fractional kW to several hundred kW, supporting three-phase asynchronous and synchronous motor control via V/f, sensorless vector, and closed-loop flux vector modes. Its modular architecture — separating the power stage, control board, and I/O expansion — makes it a preferred platform for OEM machine builders and plant maintenance engineers who require long-term spare parts availability.

The Evolution of COMBIVERT F5 Architecture

KEB introduced the COMBIVERT F5 platform in the mid-1990s as a successor to the F3 and F4 series, consolidating control intelligence onto a single DSP-based control board. Early F5 variants (suffix -0000 through -Y000) used analog reference inputs and relay-based I/O with RS-232/RS-485 serial communication. The -Y001 and subsequent suffix revisions introduced enhanced EMC filtering, expanded fieldbus compatibility (CANopen, PROFIBUS-DP, DeviceNet), and improved thermal management with redesigned heatsink profiles.

By the mid-2000s, KEB released the F5-E (Enhanced) and F5-G (Global) sub-variants, extending the voltage range to 480V/60Hz North American grids and adding STO (Safe Torque Off) safety functions compliant with EN 61800-5-2. The F5 series entered its mature/end-of-active-production phase circa 2015, with KEB transitioning new designs to the COMBIVERT F6 platform. However, the installed base of F5 units in legacy plant infrastructure remains extensive, and KEB continues to supply spare control boards, power modules, and keypad assemblies through authorized distributors and third-party MRO suppliers.

COMBIVERT F5 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked models within the KEB COMBIVERT F5 series. Units are classified by functional role within the drive system.

Frequency Converter — Complete Drive Units

• 15F5G1E-Y001: 1.5 kW 3-phase 400V F5 drive, IP20, integrated EMC filter, RS-485
• 00F5G1E-Y001: 0.25 kW 3-phase 400V F5 entry-level drive, compact frame size A
• 01F5G1E-Y001: 0.37 kW 3-phase 400V F5 drive, frame size A, V/f and vector modes
• 02F5G1E-Y001: 0.55 kW 3-phase 400V F5 drive, frame size A, standard I/O complement
• 03F5G1E-Y001: 0.75 kW 3-phase 400V F5 drive, frame size A, relay output included
• 05F5G1E-Y001: 1.1 kW 3-phase 400V F5 drive, frame size B, enhanced cooling
• 22F5G1E-Y001: 2.2 kW 3-phase 400V F5 drive, frame size B, closed-loop vector capable
• 40F5G1E-Y001: 4.0 kW 3-phase 400V F5 drive, frame size C, dynamic braking transistor
• 55F5G1E-Y001: 5.5 kW 3-phase 400V F5 drive, frame size C, extended I/O option slots
• 75F5G1E-Y001: 7.5 kW 3-phase 400V F5 drive, frame size D, dual encoder feedback
• 11F5G1E-Y001: 11 kW 3-phase 400V F5 drive, frame size D, PROFIBUS-DP ready
• 15F5G1E-0000: 1.5 kW 3-phase 400V F5 drive, early revision, no fieldbus, analog I/O only
• 15F5G1E-Y000: 1.5 kW 3-phase 400V F5 drive, intermediate revision, RS-485 Modbus

Control & Option Boards

• 00F5A00-0000: F5 standard control board, DSP-based, analog/digital I/O, RS-232 port
• 00F5C00-0000: F5 CANopen communication option board, DS402 drive profile
• 00F5P00-0000: F5 PROFIBUS-DP option board, GSD file supported, up to 12 Mbit/s
• 00F5D00-0000: F5 DeviceNet option board, Group 2 slave, explicit and I/O messaging
• 00F5K00-0000: F5 operator keypad/display unit, 7-segment LED, parameter copy function

Sourcing Hard-to-Find & Obsolete COMBIVERT F5 Parts

The COMBIVERT F5 series is classified as a mature product line with active production of select models discontinued. DriveKNMS maintains a dedicated inventory of F5 control boards, power modules, IGBT assemblies, gate driver cards, and keypad units sourced through authorized surplus channels and direct OEM procurement. For plant operators running F5 drives in critical process loops — where a drive failure results in unplanned downtime measured in production loss per hour — DriveKNMS provides same-day quotation on stocked units and a 30-day lead time commitment on non-stocked assemblies. Cross-reference support is available for obsolete suffix variants (e.g., -0000, -Y000) to current -Y001 equivalents, including parameter migration guidance where firmware differences apply.
