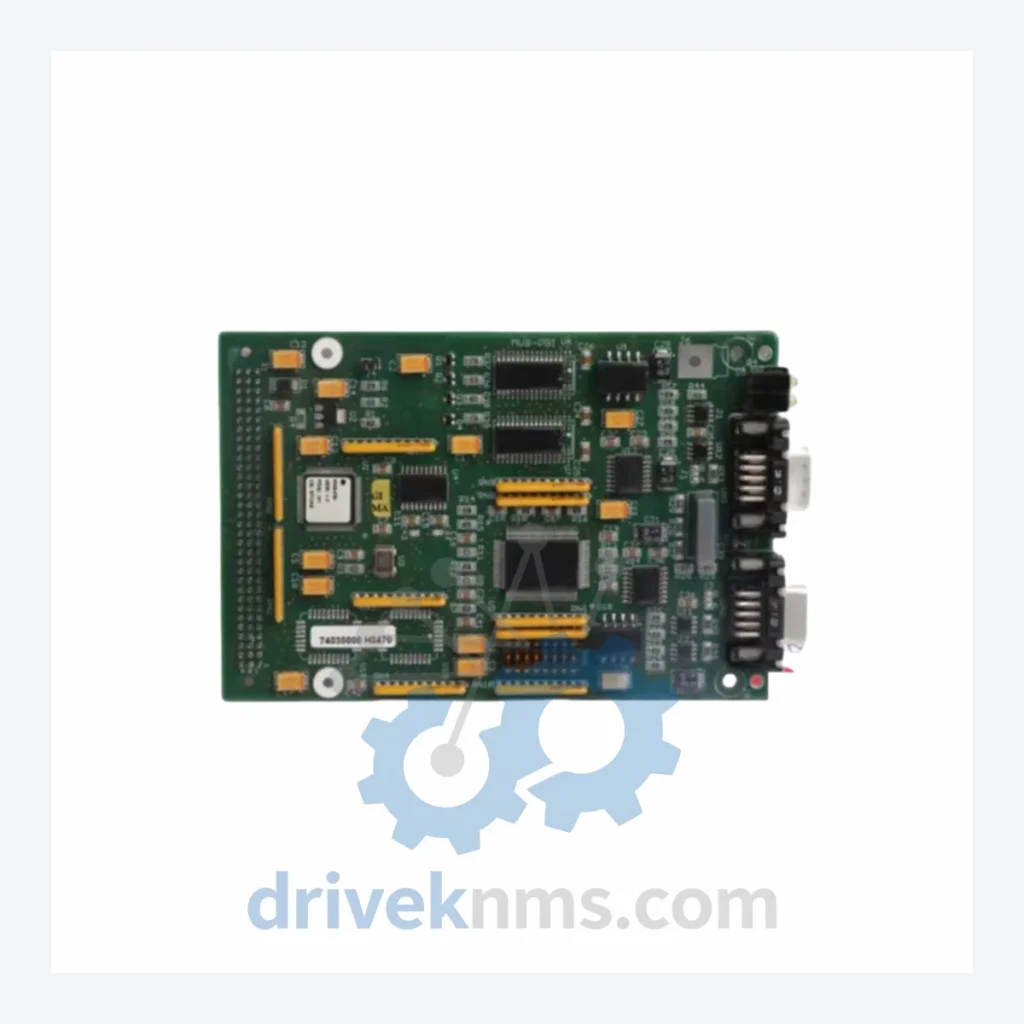

FAIVELEY 74030000 H3470 Control Board

Technical Dossier

Product Details And Specifications

FAIVELEY 74030000 H3470 Series: Comprehensive Module Range and Technical Overview

The FAIVELEY 74030000 H3470 Control Board is a rail and industrial automation control module produced by Faiveley Transport (now part of Wabtec Corporation), a French engineering group with a global installed base across heavy rail, metro systems, and industrial process control. The H3470 board operates within the 74030000 hardware family, a platform deployed extensively in traction control, door management, and auxiliary power systems across European and Asian rail fleets. Its architecture is found in service across SNCF, RATP, and various metro operators in China, making it a critical spare part for long-term fleet maintenance programs. The board is also referenced in industrial automation contexts where Faiveley's control electronics were integrated into process lines in chemical plants and energy facilities.

The Evolution of FAIVELEY 74030000 H3470 Architecture

The 74030000 hardware platform was developed during the late 1990s and early 2000s as Faiveley Transport expanded its electronics division to support onboard train control systems. The H3470 board represents a mid-generation revision within this platform, incorporating improved bus communication stability and enhanced thermal tolerance compared to earlier H34xx revisions (e.g., H3410, H3420). The board uses a proprietary backplane interface compatible with Faiveley's modular rack systems, which creates a closed ecosystem — replacement requires exact-match hardware rather than generic industrial substitutes.

As Faiveley was acquired by Wabtec in 2016, the 74030000 series entered a managed end-of-life phase. New production of H3470 boards has been discontinued by the OEM, shifting procurement responsibility to the aftermarket. Operators running fleets with 15–25 year service horizons must source boards through specialist distributors with verified test capability. Compatibility with successor Wabtec control architectures requires engineering evaluation and is not plug-and-play.

FAIVELEY 74030000 H3470 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the FAIVELEY 74030000 / H34xx control board family and associated modules. Each entry reflects a distinct functional role within the platform:

74030000 H3470: Main control board, central processing and I/O coordination unit
74030000 H3410: Early-generation control board, predecessor to H3470 with limited bus speed
74030000 H3420: Intermediate revision control board, improved thermal management over H3410
74030000 H3450: Control board variant with extended digital I/O channel count
74030000 H3480: High-reliability variant, conformal-coated for high-humidity environments
74030000 H3490: Final production revision in the H34xx line before platform EOL
74031000 H3470: Functionally equivalent board with revised PCB layout for rack slot B
74032000 H3200: Analog input acquisition module, 8-channel, 12-bit resolution
74032000 H3210: Analog input module, 16-channel variant for expanded sensor arrays
74033000 H3300: Digital output module, 24VDC, 16-channel relay-driven
74033000 H3310: Digital output module, high-current variant, 32-channel
74034000 H3400: Communication adapter module, RS-485 / MVB dual-port interface
74034000 H3410: Communication adapter, CANopen protocol variant
74035000 H3500: Power supply module, 24VDC / 5VDC dual-rail, 10A rated
74035000 H3510: Power supply module, redundant configuration, hot-swap capable
74036000 H3600: Backplane bus interface card, 8-slot rack configuration
74036000 H3610: Backplane bus interface card, 16-slot extended rack

Sourcing Hard-to-Find & Obsolete FAIVELEY 74030000 H3470 Parts

DriveKNMS maintains a dedicated inventory program for end-of-life Faiveley 74030000 series boards. The H3470 and its H34xx family variants are no longer manufactured by Wabtec/Faiveley, placing all procurement in the secondary market. DriveKNMS sources boards through decommissioned fleet teardowns, verified OEM surplus channels, and controlled exchange programs with rail operators in Europe and Asia.

Quality Control for the FAIVELEY 74030000 H3470 Range

The H3470 board presents specific test challenges due to its proprietary backplane bus protocol and multi-layer PCB construction. DriveKNMS applies the following verification procedures to all 74030000 series boards prior to dispatch:

Backplane Bus Integrity Test: Each board is seated in a Faiveley-compatible test rack and subjected to full bus communication cycling to verify address recognition and data throughput at rated speed. I/O Channel Verification: All digital and analog I/O channels are individually stimulated and read-back verified against factory tolerance bands. Power Rail Stability Check: On-board voltage regulators are load-tested at 80% rated current for 30 minutes with thermal monitoring. Visual and X-Ray Inspection: Solder joint integrity on BGA and fine-pitch components is verified; boards with cold joints or delamination are quarantined. Burn-In Cycle: Functional boards undergo a 48-hour powered burn-in at elevated ambient temperature (55°C) to screen for early-life failures. Final Functional Sign-Off: Each board receives a unique test report traceable to its serial number, shipped with the unit.
