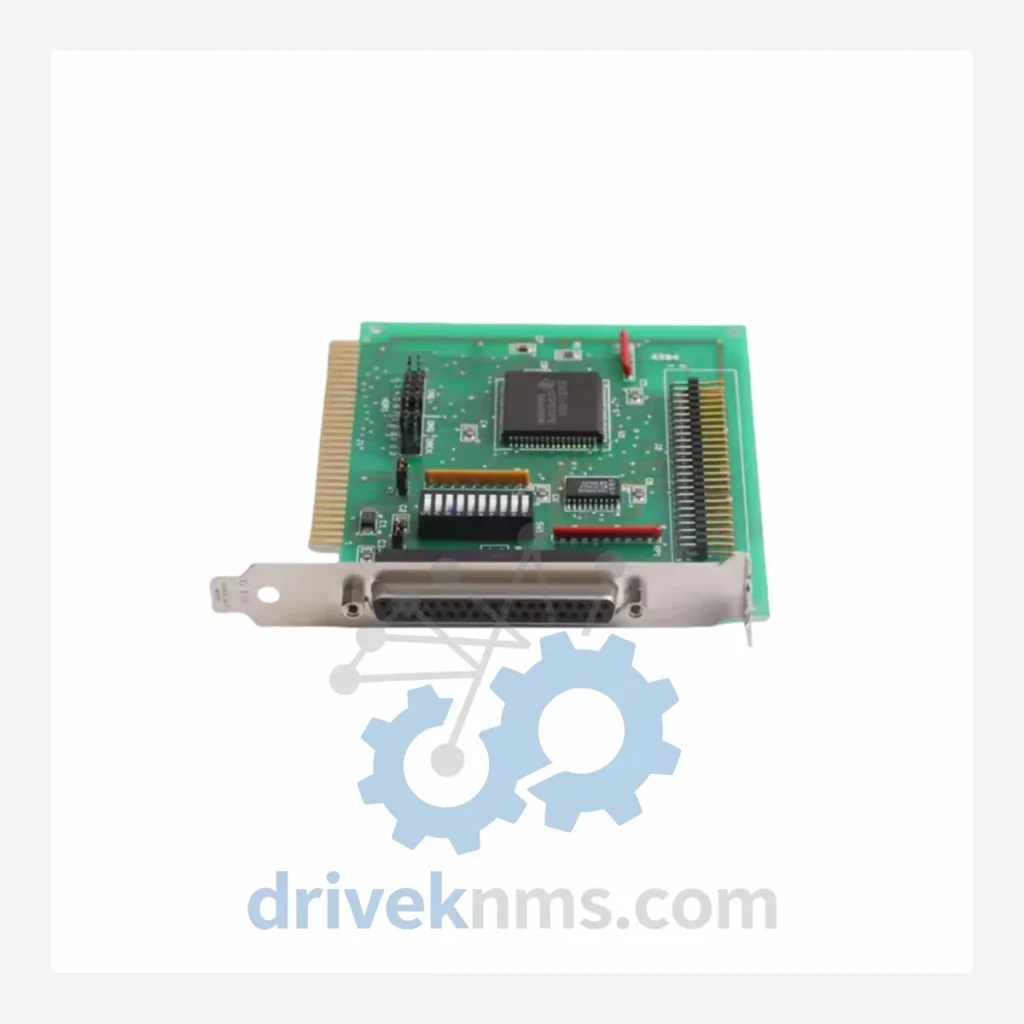

KLA 23663-001 FAB 23662-000 941302 Communications Board

Technical Dossier

Product Details And Specifications

KLA FAB 23662-000 Series: Comprehensive Module Range and Technical Overview

The KLA (KLA-Tencor) FAB 23662-000 series communications boards are precision control interface assemblies deployed within KLA's semiconductor process control and inspection equipment platforms. These boards serve as the primary communication backbone between host controllers and subsystem hardware in wafer inspection systems, metrology tools, and defect review stations. Installed across high-volume semiconductor fabs globally — including facilities operated by TSMC, Samsung, Intel, and ASML-adjacent process lines — the FAB 23662-000 series represents a mature, field-proven architecture with a substantial installed base in 200mm and 300mm wafer processing environments. The 23663-001 FAB 23662-000 941302 variant is a communications board responsible for managing data transfer, signal routing, and inter-module handshaking within the KLA equipment chassis.

The Evolution of FAB 23662-000 Architecture

KLA-Tencor's board-level communications architecture evolved through several generations tied to the company's inspection and metrology platform roadmap. Early-generation boards (pre-2000) relied on parallel bus architectures with discrete logic ICs for signal conditioning. The FAB 23662-000 series represents a mid-to-late generation design, incorporating surface-mount FPGA or ASIC-based communication controllers, multi-layer PCB construction, and standardized connector interfaces compatible with KLA's proprietary backplane systems.

Compatibility considerations are critical: FAB 23662-000 series boards are designed for specific chassis generations and are not hot-swappable across all platform revisions. Firmware revisions tied to the 941302 assembly code indicate a specific hardware spin that must be matched to the corresponding system software version. Substitution with earlier or later board revisions requires engineering validation. As KLA has transitioned newer platforms to updated communication standards, the FAB 23662-000 series has entered a maintenance and end-of-life support phase, making third-party sourcing the primary procurement channel for ongoing fab operations.

FAB 23662-000 Full Catalog & Functionalities (SKU List)

The following SKUs represent known assemblies and associated components within the KLA FAB 23662-000 communications board ecosystem. Each entry reflects a distinct functional role within the KLA equipment platform:

23663-001 FAB 23662-000 941302: Primary communications board assembly, inter-module data routing
FAB 23662-000: Base communications board, core signal interface layer
FAB 23662-001: Revised communications board, updated connector pinout revision
FAB 23662-002: Communications board with enhanced EMI shielding variant
FAB 23663-000: Parent assembly board, hosts FAB 23662-000 sub-assembly
FAB 23663-001: Revised parent assembly, updated firmware compatibility spin
FAB 23663-002: Parent assembly with alternate power regulation circuit
941302: Assembly revision code, identifies specific PCB spin and BOM
FAB 23660-000: Companion I/O interface board, parallel bus data acquisition
FAB 23660-001: Revised I/O board, updated analog front-end section
FAB 23661-000: Signal conditioning board, upstream of communications layer
FAB 23661-001: Signal conditioning board, revised filter network configuration
FAB 23664-000: Backplane interface adapter, connects FAB 23662 to chassis bus
FAB 23665-000: Power distribution board, supplies regulated voltages to FAB 23662
FAB 23666-000: Diagnostic interface board, supports in-system test and fault isolation
FAB 23667-000: Clock distribution module, synchronizes FAB 23662 communications timing
FAB 23668-000: Termination and protection board, bus line termination resistor array

Sourcing Hard-to-Find & Obsolete FAB 23662-000 Parts

The FAB 23662-000 series has reached end-of-active-production status with KLA. OEM replacement stock is no longer available through standard distribution channels. DriveKNMS maintains a dedicated inventory of tested, pull-from-service, and refurbished FAB 23662-000 series boards sourced from decommissioned KLA equipment. Our procurement network spans semiconductor equipment resellers, fab decommission auctions, and direct buyback programs from facilities upgrading to current-generation KLA platforms.

For fabs operating legacy KLA inspection or metrology tools on extended service contracts, DriveKNMS provides lifecycle extension support including: board-level repair and component replacement, functional testing against KLA-equivalent test parameters, and documentation of assembly revision and firmware compatibility. Lead times for FAB 23662-000 series boards vary by specific assembly code; contact our team with your full part number including revision suffix for accurate availability confirmation.

Quality Control for the FAB 23662-000 Range

Communications boards in the FAB 23662-000 series present specific test challenges due to their role as the signal routing layer between the KLA system controller and downstream subsystems. DriveKNMS applies the following test protocol to all FAB 23662-000 series boards prior to shipment:

Visual inspection of PCB surface, solder joints, connector pins, and component seating is performed under magnification. Functional power-on testing verifies regulated voltage rails within ±2% of nominal specification. Communications interface testing validates signal integrity on all active bus lines using protocol-appropriate test equipment. Backplane connector continuity and isolation testing confirms no cross-talk or short-circuit conditions between adjacent signal lines. Where applicable, firmware version is read and documented against the assembly revision code (e.g., 941302) to confirm compatibility with the customer's system software version. All boards are shipped with a test report documenting pass/fail status for each test parameter.
