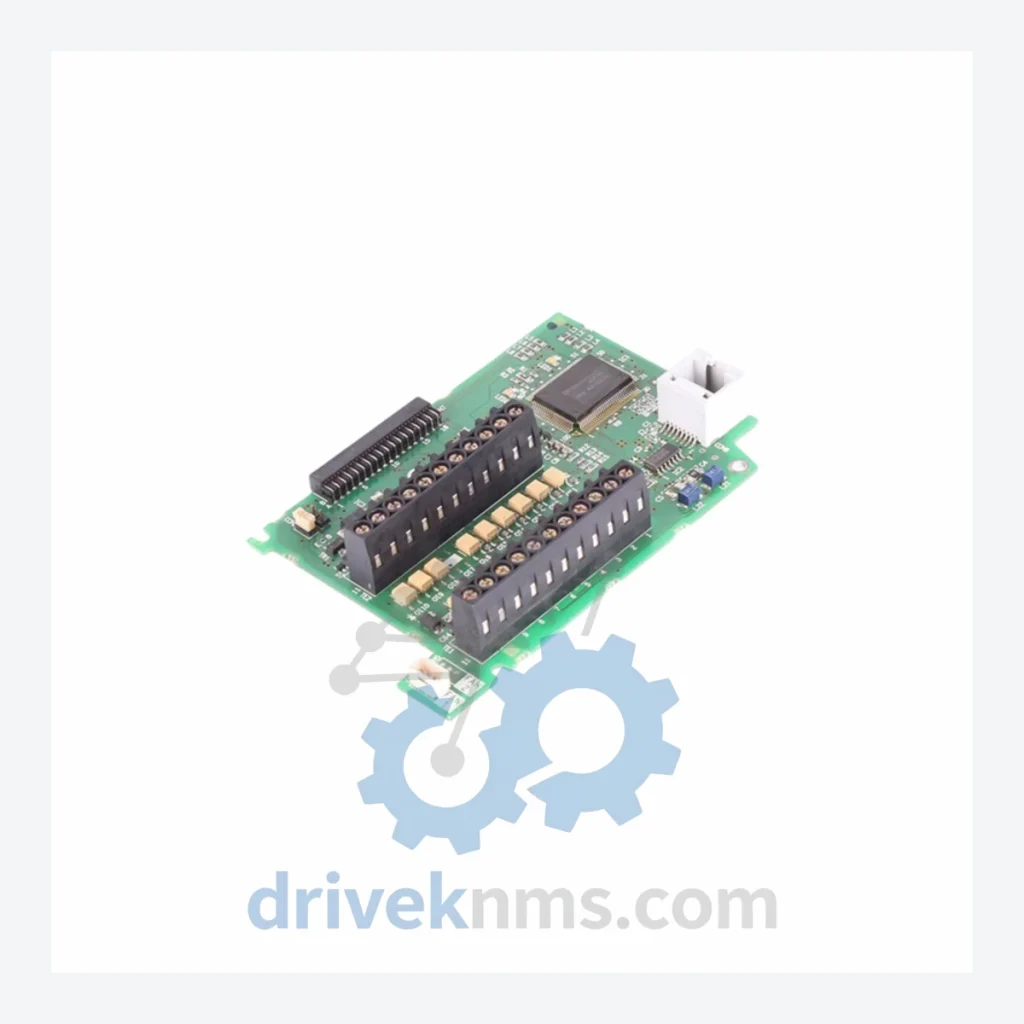

Mitsubishi BC186A Series Modules: BC186A512G53

Technical Dossier

Product Details And Specifications

Mitsubishi Electric BC186A Series Technical Notes

The Mitsubishi Electric BC186A series circuit boards are embedded control and interface modules deployed across heavy industrial environments including petrochemical refineries, nuclear power auxiliary systems, steel manufacturing lines, and large-scale water treatment facilities. The BC186A512G53 is a representative part number within this family, used in servo drive control and programmable controller backplane communication architectures. Mitsubishi Electric's installed base in global heavy industry is extensive, with BC186A-series boards found in legacy MELSERVO and MELSEC system configurations that have been in continuous operation for 15–25 years. The longevity of these deployments creates sustained demand for exact-match replacement boards, particularly in facilities where system-wide upgrades are cost-prohibitive or operationally disruptive.

BC186A Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed or closely associated part numbers within the Mitsubishi Electric BC186A and related legacy control board families. Each entry reflects a distinct functional role within servo drive, PLC backplane, or motion control subsystems.

BC186A512G53: Primary servo control circuit board, backplane interface, G53 hardware revision.
BC186A512G51: Earlier hardware revision of the G53; servo control board with legacy firmware ROM.
BC186A512G52: Intermediate revision; used in mid-generation MELSERVO MR-J2 series drives.
BC186A256G53: Reduced memory variant; applied in lower-axis-count servo configurations.
BC186A512G54: Later revision with updated ASIC; limited field deployment, primarily OEM-specific.
BC186A128G53: Minimal memory configuration; used in single-axis servo amplifier control boards.
BC186A512G50: Original production revision; found in earliest MELSERVO A-series installations.
BC186A512G55: Final production revision; enhanced thermal tolerance, rare in open market.
BC186A256G51: Low-memory, early-revision board; common in legacy packaging line servo systems.
BC186A512G53-A: Factory-modified variant with application-specific firmware; OEM-designated.
BC186A512G53-B: Secondary OEM variant; functionally equivalent to G53 with alternate connector pinout.
BC186A512G52-R: Refurbished/remanufactured designation used by authorized repair centers.
BC186A256G52: Mid-memory, mid-revision; deployed in MELSEC A2N and A3N CPU backplane systems.
BC186A512G51-R: Refurbished G51 revision; common sourcing option for legacy MR-J installations.
BC186A512G53-OEM: OEM-specific board with restricted firmware; requires OEM authorization for replacement.
BC186A128G51: Minimal-spec early board; found in single-phase servo control units in textile machinery.
BC186A256G53-A: Application-specific low-memory G53 variant; used in specialized motion indexing systems.
