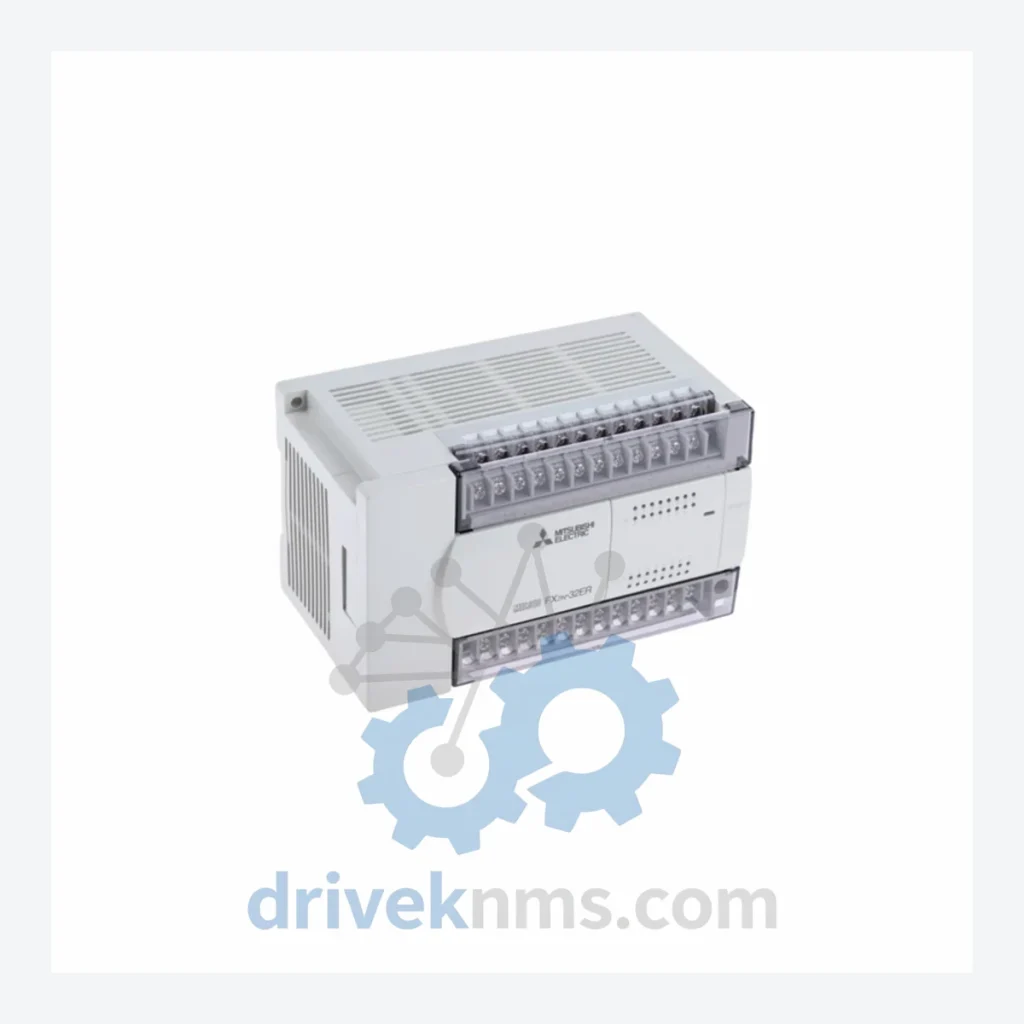

Mitsubishi FX2N-32ER Digital I/O Module – Obsolete MELSEC FX2N Spare Part

Technical Dossier

Product Details And Specifications

Mitsubishi FX2N-32ER Digital I/O Module – Obsolete MELSEC FX2N Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The MELSEC FX2N platform was deployed extensively throughout the 1990s and 2000s across global manufacturing. Its ladder logic architecture, deterministic scan cycle, and robust relay output design made it a default choice for machine builders across Asia, Europe, and North America. Many of those machines remain in production today — not because operators are unaware of the EOL status, but because the machines themselves continue to perform their function reliably.

The FX2N-32ER sits at the boundary between the main CPU and field devices. It handles discrete signal routing for sensors, actuators, solenoids, and safety interlocks. When this module degrades — typically through relay contact wear, input filter degradation, or bus connector fatigue — the symptoms appear as intermittent I/O faults, false triggering, or complete loss of output control. At that point, the facility faces a binary choice: source a replacement module or halt production pending a platform migration.

There is no software workaround for a failed relay output module. The FX2N-32ER must be physically replaced with an identical or functionally equivalent unit. Given that Mitsubishi no longer produces this module, the only viable path is sourcing from specialist distributors who maintain legacy inventory. DriveKNMS operates specifically within this segment of the supply chain.

How to Extend Automation Asset Life by 5–10 Years: A Maintenance Strategy for Plant Management

For plant managers and maintenance engineers operating FX2N-based systems, the following framework provides a structured approach to extending asset life without triggering a capital replacement cycle:

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

4. Negotiate Long-Term Supply Agreements. Specialist distributors like DriveKNMS can reserve allocated inventory against a facility's projected consumption over a 12–36 month horizon. This eliminates spot-market price volatility and ensures supply continuity as global legacy inventory depletes.

5. Document Firmware and Configuration Baselines. Before any module swap, ensure the PLC program, I/O mapping, and any special function parameters are fully backed up. For FX2N systems, this means maintaining a current GX Developer or GX Works2 project file with verified checksums. A module replacement should never require reprogramming — but configuration documentation must exist to confirm that.

Facilities that execute this framework consistently report 5–10 year extensions of operational life for FX2N-based systems, deferring platform migration costs until a planned capital cycle rather than an emergency response.

Condition & Reliability Assurance

Every FX2N-32ER unit shipped by DriveKNMS passes a documented 5-step inspection protocol:

Step 2 – Electrolytic Capacitor Assessment: Internal inspection for capacitor bulging, electrolyte leakage, or ESR deviation. Aged capacitors are a primary failure mode in legacy modules stored beyond 10 years.

Step 3 – Firmware Version Verification: Where accessible, firmware revision is confirmed against known FX2N-32ER release history to ensure compatibility with target system configurations.

Step 5 – Functional Power-On Test: The module is powered and I/O point activation is verified against specification. Units that fail any test stage are quarantined and not offered for sale.

Key Features for System Maintenance

Drop-in Replacement: The FX2N-32ER installs directly into the existing FX2N expansion bus without hardware modification. No rewiring of field terminals is required beyond standard module swap procedure.

Avoids Engineering Reconstruction Costs: A platform migration from FX2N to a current Mitsubishi iQ-F or iQ-R series system requires complete I/O remapping, HMI reconfiguration, and process revalidation. Sourcing a verified FX2N-32ER spare eliminates that cost entirely for the duration of the module's service life.

Q: How do I confirm the unit is genuine Mitsubishi and not a counterfeit?
A: All units are sourced through documented supply chains. Physical authenticity markers — including housing molding, label printing, and PCB markings — are verified during inspection. We provide full traceability documentation on request.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.

Q: Is the FX2N-32ER compatible with the FX2NC series?
A: The FX2N-32ER is designed for the FX2N expansion bus. FX2NC compatibility requires an FX2NC-CNV-IF adapter. Confirm your system configuration before ordering.
