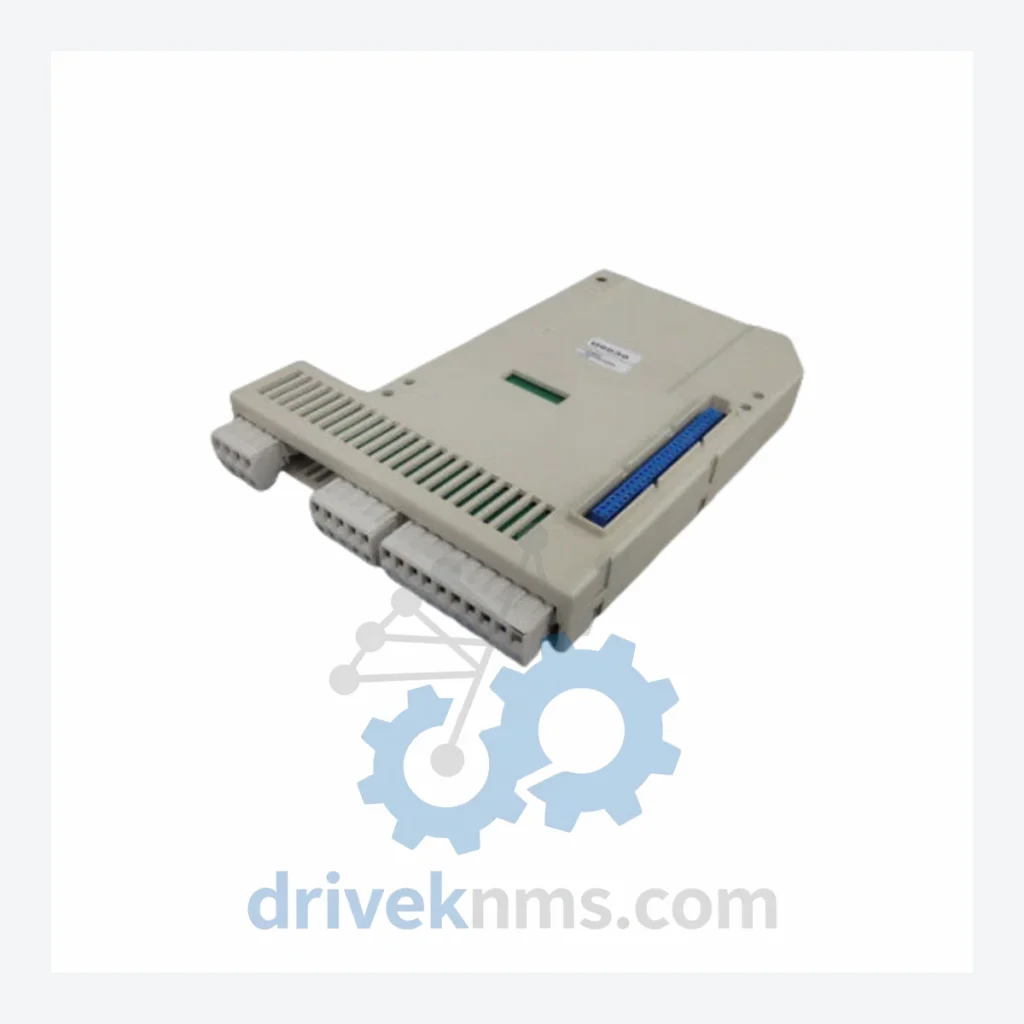

Schneider Electric VW3A Series I/O Extension Modules: VW3A66201

Technical Dossier

Product Details And Specifications

Schneider Electric VW3A Series: Comprehensive Module Range and Technical Overview

The Schneider Electric (Telemecanique) VW3A series represents the definitive accessory and I/O extension ecosystem for the Altivar (ATV) variable speed drive platform. Deployed across global heavy industry — including petrochemical complexes, nuclear power auxiliary systems, offshore drilling platforms, and continuous-process refineries — VW3A modules extend the functional envelope of ATV drives through standardized fieldbus communication, discrete and analog I/O expansion, encoder feedback, and safety relay integration. The series is engineered to IEC 61800-3 EMC requirements and is compatible across ATV312, ATV320, ATV340, ATV630, ATV650, ATV660, and ATV680 drive families, making it one of the most widely installed drive accessory platforms in industrial automation history.

The Evolution of VW3A Architecture

The VW3A designation was introduced by Telemecanique (acquired by Schneider Electric in 1988) as a structured accessory numbering system for the Altivar drive range. Early-generation modules (VW3A1xxx) addressed basic I/O expansion for ATV11 and ATV31 compact drives, using proprietary CANopen-based internal buses. The second generation (VW3A3xxx) introduced fieldbus gateway cards supporting Modbus RTU, PROFIBUS DP, DeviceNet, and CANopen for ATV312 and ATV32 platforms. The third generation (VW3A6xxx) — to which the VW3A66201 belongs — targets the ATV600/ATV900 high-power drive families, incorporating a backplane-mounted I/O exit board architecture that routes discrete and analog signals through a dedicated terminal block assembly, decoupling field wiring from the drive's main control board. This architectural shift significantly reduced commissioning time in multi-drive panel installations. As of 2024, the ATV600/900 platform is in its mature phase; Schneider Electric continues to supply VW3A6xxx accessories, but long-term lifecycle planning should account for the ATV6xx platform's eventual transition to next-generation drive architectures.

VW3A Series Full Catalog & Functionalities (SKU List)

I/O Extension & Exit Boards

• VW3A66201: I/O exit board for ATV630/650/660/680; routes analog/digital I/O to external terminal block
• VW3A66202: Extended I/O exit board with additional relay output terminals for ATV6xx series
• VW3A3201: I/O extension card for ATV312; adds 2 analog inputs, 1 analog output, 2 digital inputs
• VW3A3202: I/O extension card for ATV312; adds relay output and extended digital I/O channels
• VW3A3203: I/O extension card for ATV312 with PTC thermistor input for motor thermal protection

Fieldbus Communication Adapters

• VW3A3607: PROFIBUS DP communication card for ATV312/ATV32 drives; supports DP-V1 acyclic services
• VW3A3608: CANopen communication card for ATV312/ATV32; DS402 drive profile compliant
• VW3A3609: DeviceNet communication card for ATV312/ATV32; Group 2 only server
• VW3A3610: Modbus TCP / EtherNet/IP dual-protocol card for ATV312/ATV32
• VW3A3616: PROFINET IO communication card for ATV312/ATV32; RT Class 1 conformant
• VW3A3627: PROFIBUS DP card for ATV320 series drives
• VW3A3628: CANopen card for ATV320 series drives; supports NMT master/slave operation
• VW3A3629: DeviceNet card for ATV320 series drives
• VW3A3630: EtherNet/IP / Modbus TCP card for ATV320 series drives
• VW3A3636: PROFINET IO card for ATV320 series drives; supports MRP ring redundancy

Encoder & Feedback Modules

• VW3A3401: Incremental encoder feedback card for ATV312/ATV32; supports HTL/TTL encoders up to 500 kHz
• VW3A3402: Resolver feedback card for ATV312/ATV32; 2–36 pole resolver compatible
• VW3A3501: Encoder feedback card for ATV320; HTL/TTL, 5V/24V supply selectable

Safety & Braking Modules

• VW3A3210: Safety I/O card for ATV320; STO (Safe Torque Off) and SS1 function integration
• VW3A9410: Dynamic braking resistor assembly kit for ATV630/650 series, IP20 panel-mount

Sourcing Hard-to-Find & Obsolete VW3A Series Parts

Quality Control for the VW3A Range

VW3A modules present specific test challenges due to their backplane-bus interface architecture and mixed analog/digital signal routing. DriveKNMS applies the following verification protocol to all VW3A units processed through its facility: (1) Visual inspection of PCB, connector pins, and conformal coating integrity under 10x magnification. (2) Backplane connector continuity test using a dedicated ATV-series drive simulator jig, verifying all 26-pin or 40-pin interface signals against Schneider Electric's internal bus specification. (3) Functional I/O verification: each analog input channel is stimulated at 0–10V and 4–20mA ranges; digital I/O channels are cycled at 24VDC; relay outputs are load-tested at rated current. (4) Fieldbus communication cards undergo protocol-layer testing using a certified PROFIBUS/CANopen/EtherNet analyzer to confirm correct telegram structure, node addressing, and error-frame handling. (5) Burn-in at 40°C ambient for 4 hours prior to final packaging. All test records are retained and available upon request with each shipment.
