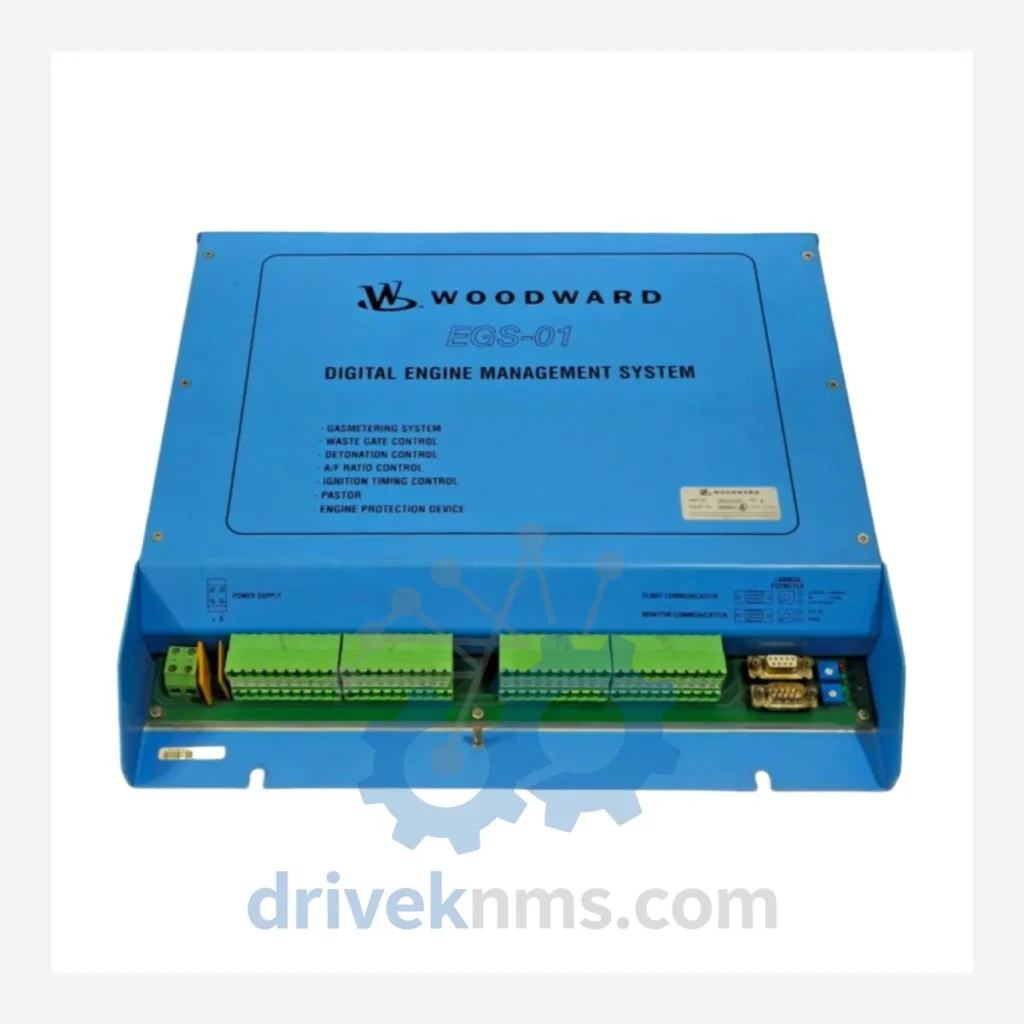

WOODWARD EGS-01(VM2104.0000) Electronic Governor System

Technical Dossier

Product Details And Specifications

WOODWARD EGS-01 Series Technical Notes

The WOODWARD EGS-01 Electronic Governor System is a field-proven control platform deployed across heavy industrial sectors including petrochemical refineries, natural gas compression stations, hydroelectric power plants, and nuclear auxiliary systems. Designed to regulate prime mover speed with high precision, the EGS-01 series occupies a critical position in turbine and engine governor control architectures globally. Its modular design allows integration into both standalone governor panels and distributed control system (DCS) environments, making it a long-cycle asset in facilities where control system replacement carries significant operational risk. The VM2104.0000 variant represents the core analog governor module within this platform, widely specified in OEM turbine packages from the 1990s through the 2010s.

The Evolution of EGS-01 Architecture

The EGS-01 platform was introduced by WOODWARD as part of its analog-to-digital transition strategy for industrial governor controls. Early variants relied on discrete analog circuitry for speed sensing, droop adjustment, and actuator output — characteristics that made them highly compatible with legacy magnetic pickup (MPU) sensors and electro-hydraulic actuators already installed in the field.

As industrial automation advanced through the 2000s, WOODWARD progressively introduced digital overlay modules and communication adapters to extend EGS-01 compatibility with SCADA and DCS networks operating on Modbus RTU and HART protocols. The VM2104.0000 module specifically addresses analog proportional-integral-derivative (PID) governor control, with field-adjustable gain, droop, and isochronous/droop mode switching.

EGS-01 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the WOODWARD EGS-01 and directly associated governor module ecosystem. Each entry reflects a distinct functional role within the governor control architecture:

EGS-01(VM2104.0000): Core analog PID electronic governor module, isochronous/droop selectable, MPU speed input.
EGS-01(VM2104.0001): Variant with extended temperature range for outdoor enclosure installations.
EGS-01(VM2104.0002): Dual-channel speed input version for redundant MPU configurations.
EGS-01(VM2104.0010): Governor module with integrated actuator current output 4–20 mA, direct valve drive.
EGS-01(VM2104.0020): High-gain variant for fast-response turbine applications, adjustable derivative term.
EGS-01(VM2105.0000): Digital interface overlay module, Modbus RTU RS-485, mounts on EGS-01 backplane.
EGS-01(VM2105.0001): HART communication adapter for EGS-01 series, loop-powered, DCS integration.
EGS-01(VM2106.0000): Power supply module, 24 VDC regulated output, dedicated EGS-01 rack supply.
EGS-01(VM2106.0001): Redundant power supply module, auto-switchover, for critical governor panels.
EGS-01(VM2107.0000): Speed reference input module, analog setpoint 0–10 VDC, remote speed control.
EGS-01(VM2107.0001): Frequency reference module, 50/60 Hz selectable, grid synchronization support.
EGS-01(VM2108.0000): Load sharing module, droop compensation for parallel generator sets.
EGS-01(VM2108.0001): Isochronous load sharing module, active load division, CAN bus interconnect.
EGS-01(VM2109.0000): Overspeed detection module, independent relay output, hardwired trip circuit.
EGS-01(VM2109.0001): Dual-channel overspeed module, SIL-2 rated, for safety-instrumented system integration.
EGS-01(VM2110.0000): Actuator driver module, PWM output, compatible with WOODWARD series actuators.
EGS-01(VM2111.0000): Diagnostic and configuration interface module, RS-232 port, parameter upload/download.

Quality Control for the EGS-01 Range

Each EGS-01 module processed by DriveKNMS undergoes a structured inspection and functional verification protocol specific to analog governor control hardware. The procedure addresses the known failure modes of this platform, including electrolytic capacitor degradation on the PID regulation board, potentiometer wear on gain and droop adjustment circuits, and backplane connector oxidation on the VM21xx module series.

Functional testing is performed using a dedicated governor test bench configured to simulate MPU speed signal inputs across the full operating frequency range (0–10,000 Hz), actuator load conditions, and droop/isochronous mode transitions. Output linearity, response time, and trip threshold accuracy are verified against WOODWARD factory test specifications. Modules exhibiting parameter drift outside tolerance are recalibrated using original WOODWARD calibration procedures before release. All tested units are logged with a unique test record number traceable to the specific module serial number.
