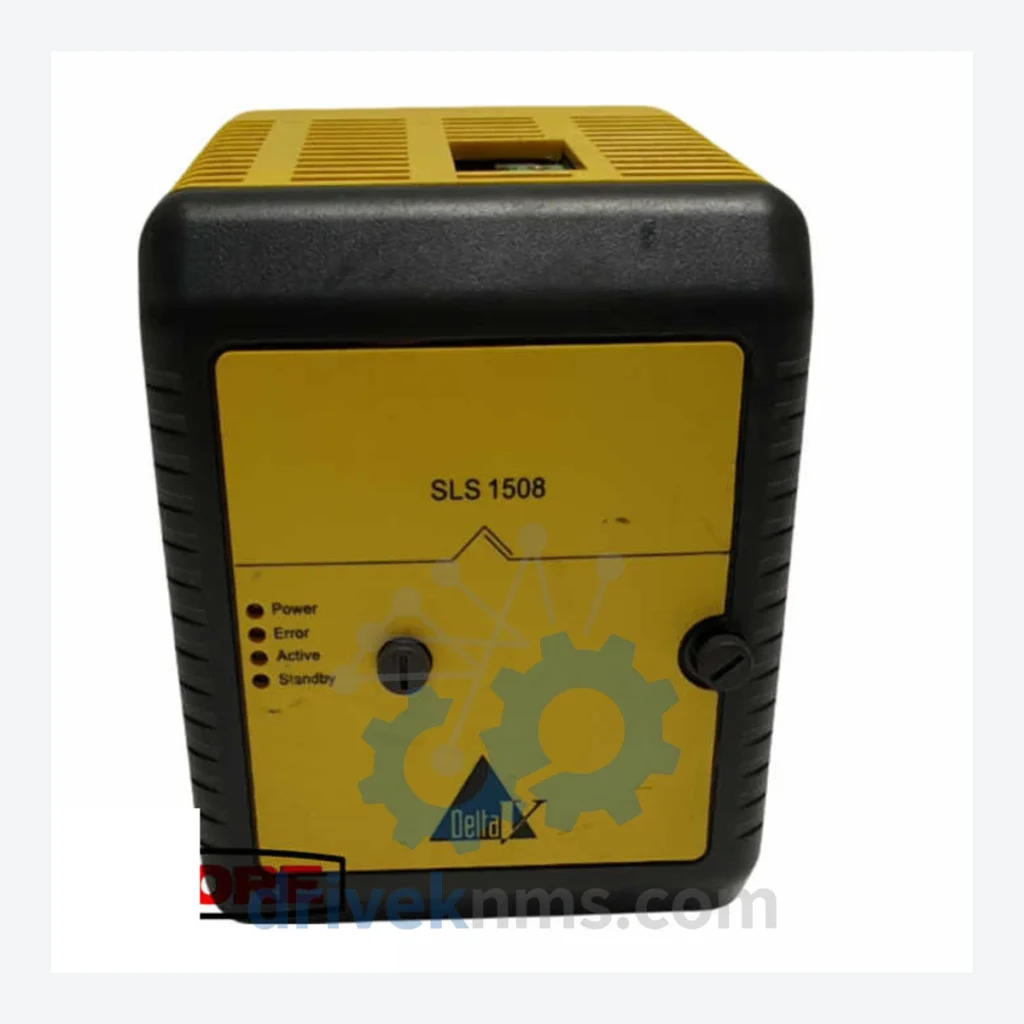

Emerson SLS1508 Modules KJ2201X1-BA1 12P3162X162

Technical Dossier

Product Details And Specifications

Emerson SLS1508 Series Technical Notes

The Evolution of SLS1508 Architecture

The SLS1508 platform was introduced as Emerson's dedicated safety layer within the DeltaV ecosystem, succeeding earlier standalone SIS solutions that required separate engineering tools and communication bridges. Early SLS1508 deployments used hardwired I/O with limited diagnostics coverage. Subsequent hardware revisions introduced enhanced self-diagnostic routines, improved HART pass-through on analog input channels, and tighter integration with DeltaV SIS workstations running v11.x and later. The KJ2201X1-BA1 logic solver controller module represents the core processing unit of the SLS1508 chassis, executing the safety application logic and managing inter-module communication over the SLS backplane bus. As DeltaV SIS has evolved toward the DeltaV SIS with Electronic Marshalling architecture, the SLS1508 remains in active service at legacy sites, with Emerson providing extended lifecycle support. Compatibility constraints exist between early SLS1508 firmware revisions and DeltaV v14+ workstations; firmware alignment must be verified before any module replacement.

SLS1508 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Emerson SLS1508 Safety Logic Solver platform, organized by functional category:

Logic Solver Controllers

• KJ2201X1-BA1: SLS1508 primary logic solver controller module, SIL 2/3 rated, DeltaV SIS backplane interface
• KJ2201X1-BA2: Revised logic solver controller, enhanced diagnostic coverage, drop-in replacement for BA1 revision
• KJ2201X1-BA3: Logic solver controller with updated firmware compatibility for DeltaV v13.3+

Digital Input (DI) Modules

• KJ2211X1-BA1: 8-channel 24 VDC digital input module, SIL 2, field device monitoring
• KJ2211X1-BA2: 8-channel DI module, enhanced short-circuit detection, SIL 2 rated
• KJ2221X1-BA1: 16-channel 24 VDC digital input module, high-density field wiring

Digital Output (DO) Modules

• KJ2231X1-BA1: 8-channel 24 VDC digital output module, SIL 2, de-energize-to-trip logic
• KJ2231X1-BA2: 8-channel DO module, improved output driver diagnostics
• KJ2241X1-BA1: 4-channel relay output module, dry contact, SIL 2 rated

Analog Input (AI) Modules

• KJ2251X1-BA1: 8-channel 4–20 mA analog input module, HART pass-through, SIL 2
• KJ2251X1-BA2: 8-channel AI module, enhanced HART communication, loop diagnostics
• KJ2261X1-BA1: 4-channel RTD/thermocouple input module, temperature measurement, SIL 2

Power Supply Modules

• KJ2291X1-BA1: SLS1508 chassis power supply module, 24 VDC input, redundant-capable
• KJ2291X1-BA2: Revised power supply, improved inrush current limiting, hot-swap capable

Communication & Chassis

• 12P3162X162: SLS1508 12-slot baseplate/chassis, backplane bus, mounts all SLS1508 I/O and controller modules
• KJ2271X1-BA1: SLS1508 communication adapter, DeltaV SIS network interface module

Quality Control for the SLS1508 Range

SLS1508 modules present specific test challenges due to their proprietary backplane communication protocol and integrated safety diagnostics. DriveKNMS employs a multi-stage verification process for all SLS1508 units. Each logic solver controller (KJ2201X1 series) undergoes power-on self-test (POST) verification, backplane communication handshake testing using a reference SLS1508 chassis, and firmware version identification. I/O modules are tested under simulated field load conditions: DI modules are verified for correct state detection at both 0 VDC and 24 VDC; DO modules are tested for output switching integrity and de-energize-to-trip response; AI modules are calibrated across the 4–20 mA range with HART command response verification. Power supply modules are load-tested at 80% rated capacity for a minimum burn-in period. The 12P3162X162 baseplate is inspected for backplane connector integrity, slot keying, and bus continuity. All units that pass testing are issued a DriveKNMS inspection report and are shipped with ESD-protective packaging.
