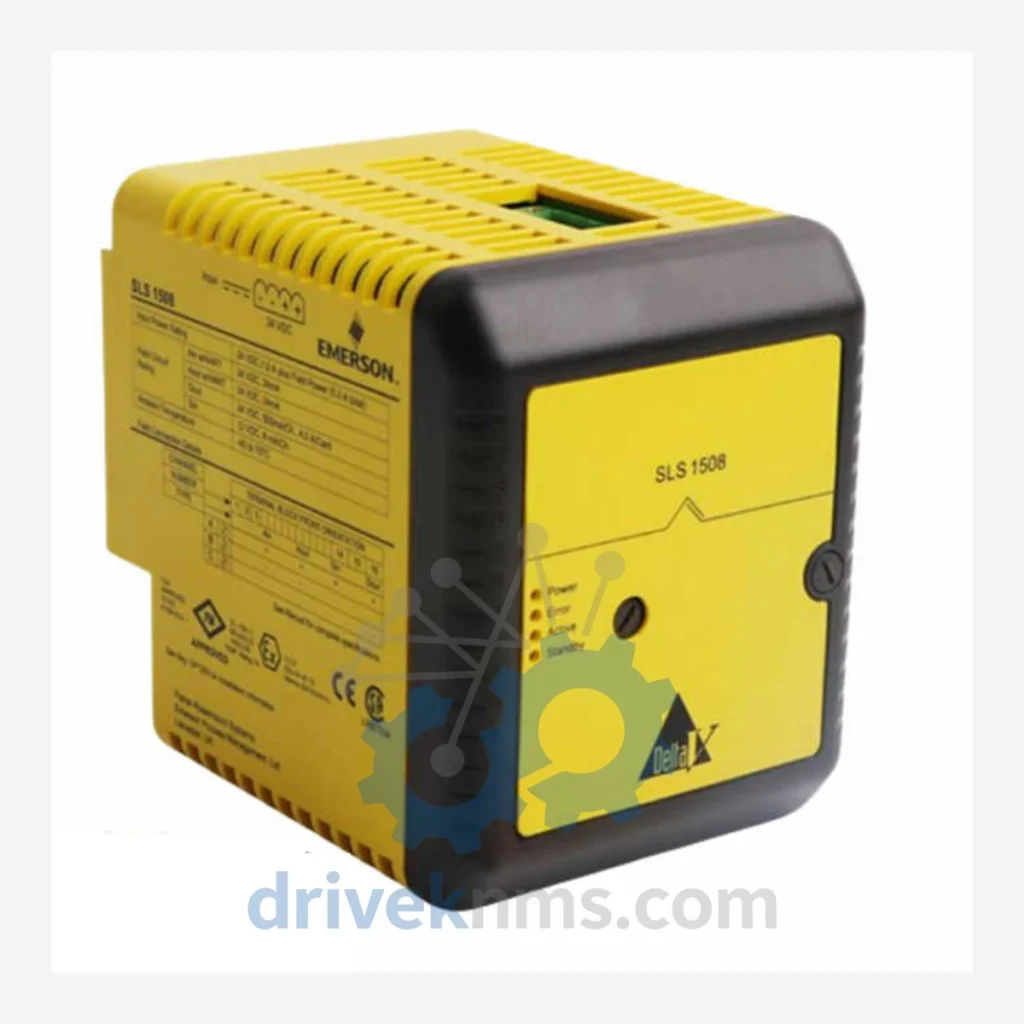

Emerson SLS1508 Modules: KJ2201X1-BA1 12P3162X202

Name: Emerson SLS1508 Modules: KJ2201X1-BA1 12P3162X202
Brand: Emerson

Model: SLS1508 KJ2201X1-BA1 12P3162X202

Brand Emerson

Series SLS1508

Model SLS1508 KJ2201X1-BA1 12P3162X202

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Emerson SLS1508 Series Technical Notes

The Evolution of SLS1508 Architecture

The architecture centers on a redundant logic solver chassis (the SLS1508 base unit) accommodating up to eight I/O module slots. Communication with the DeltaV DCS host is handled via the SLS CHARM I/O subsystem or legacy hardwired interfaces. As the platform matured, Emerson introduced CHARM-based I/O (Characterization Modules) to reduce field wiring complexity, though the SLS1508 chassis itself remains a fixed-slot, backplane-based design. The series is now in a mature/end-of-active-development lifecycle; Emerson's current SIS offering transitions toward the DeltaV SIS with Electronic Marshalling (CHARM SIS), making long-term spare parts availability for SLS1508 a critical operational concern for existing installations.

SLS1508 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Emerson SLS1508 and associated DeltaV SIS ecosystem. Modules are classified by functional category:

Logic Solver / Controller Modules

KJ2201X1-BA1 12P3162X202: SLS1508 Smart Logic Solver base unit, 8-slot chassis, SIL 2/3 rated, redundancy-capable.
KJ2201X1-BA1: Logic solver controller card, primary CPU for SLS1508 chassis, dual-ported backplane interface.
KJ2202X1-BA1: Redundant logic solver controller, hot-standby configuration, automatic failover.
KJ2224X1-BA1: SLS1508 power conditioner module, 24 VDC input, internal bus regulation.

Digital Input (DI) Modules

KJ3001X1-BA1: 8-channel digital input module, 24 VDC, SIL 2 certified, line fault detection.
KJ3002X1-BA1: 16-channel digital input module, 24 VDC, high-density I/O, diagnostic per channel.
KJ3221X1-BA1: 8-channel digital input, NAMUR sensor compatible, intrinsically safe barrier interface.
KJ3222X1-BA1: 16-channel digital input, NAMUR, IS-rated, for Zone 1/Zone 2 field devices.

Digital Output (DO) Modules

KJ3011X1-BA1: 8-channel digital output module, 24 VDC, solid-state relay, SIL 2 rated.
KJ3012X1-BA1: 16-channel digital output, 24 VDC, short-circuit protected, diagnostic feedback.
KJ3231X1-BA1: 8-channel digital output, high-current capacity, for solenoid valve actuation.

Analog Input (AI) Modules

KJ3101X1-BA1: 8-channel analog input, 4–20 mA HART, SIL 2, per-channel open-circuit detection.
KJ3102X1-BA1: 16-channel analog input, 4–20 mA, high-density, HART pass-through.
KJ3221X1-BA2: 8-channel analog input, thermocouple/RTD, temperature measurement, cold junction compensation.

Analog Output (AO) Modules

KJ3111X1-BA1: 8-channel analog output, 4–20 mA, SIL 2, loop-powered, HART compatible.
KJ3112X1-BA1: 16-channel analog output, 4–20 mA, high-density, diagnostic readback.

Communication / Adapter Modules

KJ2005X1-BA1: DeltaV SIS network interface card, Ethernet-based, redundant port configuration.
KJ2006X1-BA1: SLS1508 to DeltaV DCS gateway module, OPC-compatible, dual-redundant link.

Quality Control for the SLS1508 Range

SLS1508 modules present specific testing challenges due to their safety-rated backplane bus architecture and deterministic logic execution requirements. Standard functional testing is insufficient for safety instrumented system components. DriveKNMS applies a structured QC protocol for all SLS1508 units:
