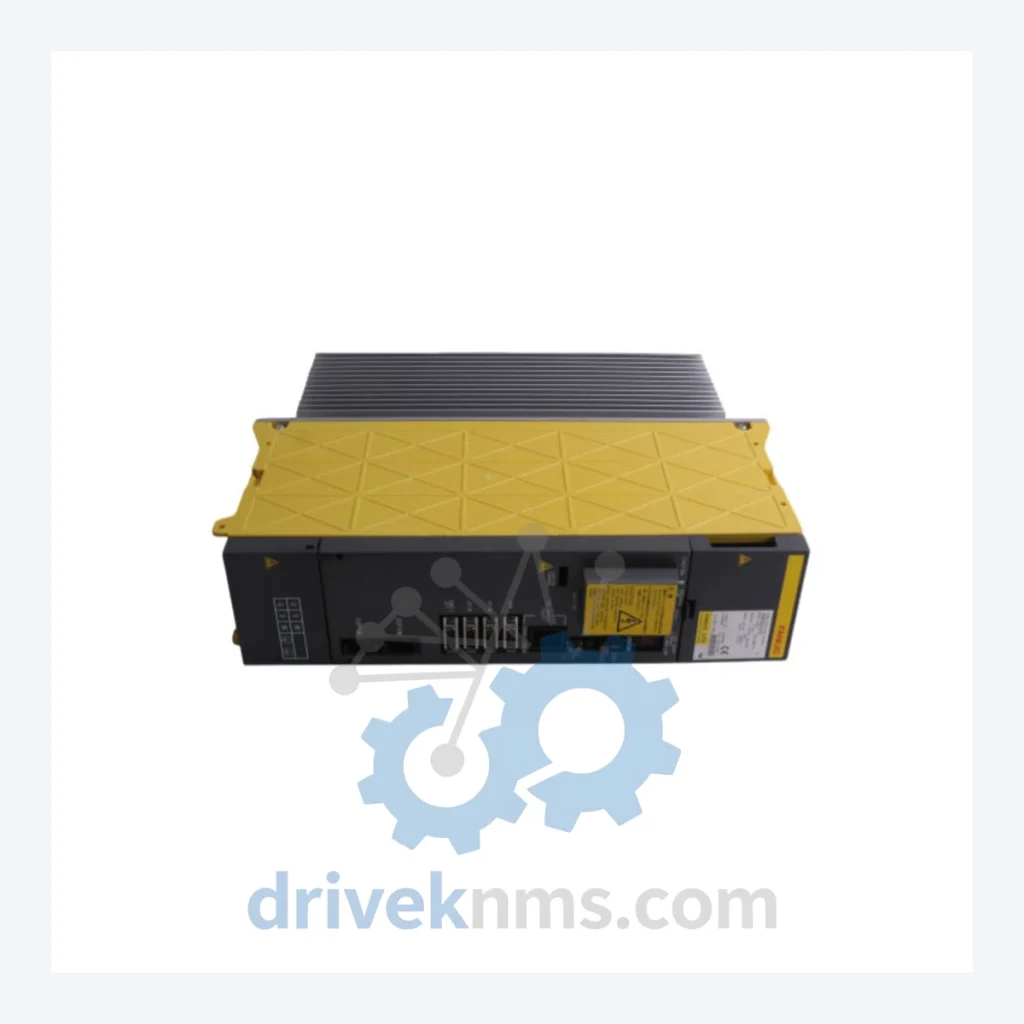

FANUC A06B-6096 Series Servo Amplifier Modules — A06B-6096-H106

Technical Dossier

Product Details And Specifications

FANUC A06B-6096 Series: Comprehensive Module Range and Technical Overview

The FANUC A06B-6096 series represents a core family of AC servo amplifier modules deployed across heavy industrial environments globally, including petrochemical refineries, nuclear power plant auxiliary systems, automotive body-in-white lines, and precision machining centers. These units serve as the power conversion and motion control backbone within FANUC's 0i, 16i, 18i, 21i, and 30i/31i/32i CNC controller ecosystems. Installed base counts for this series run into the hundreds of thousands of units across Asia-Pacific, Europe, and North America, making long-term parts availability a critical operational concern for plant maintenance engineers and MRO procurement teams.

The Evolution of A06B-6096 Architecture

The A06B-6096 series was introduced as part of FANUC's transition from analog servo drive technology (A06B-6047, A06B-6058 families) to fully digital, high-efficiency PWM-controlled servo amplifiers. Early units in this series used discrete IGBT modules with external regenerative resistor assemblies. Mid-generation revisions integrated on-board regenerative braking circuits and expanded the communication interface to support FSSB (FANUC Serial Servo Bus), enabling high-speed, fiber-optic-linked axis control with reduced wiring complexity.

Later variants introduced compatibility with the αi (alpha-i) servo motor series, requiring matched amplifier-motor pairing for correct encoder feedback resolution. Units from this series are not forward-compatible with the newer A06B-6240 (αi-B) amplifier architecture without hardware and parameter migration. For facilities running mixed-generation FANUC systems, cross-compatibility mapping is a mandatory step before any amplifier substitution.

A06B-6096 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked models within the A06B-6096 series. Each unit is classified by its functional role within the servo drive system:

A06B-6096-H101: Single-axis αi servo amplifier, 3A continuous output, for small-frame αi motors.
A06B-6096-H102: Single-axis αi servo amplifier, 6A continuous output, standard spindle auxiliary axis.
A06B-6096-H103: Single-axis αi servo amplifier, 10A continuous output, mid-range axis drive.
A06B-6096-H104: Single-axis αi servo amplifier, 15A continuous output, heavy-duty feed axis.
A06B-6096-H105: Single-axis αi servo amplifier, 20A continuous output, high-inertia load axis.
A06B-6096-H106: Single-axis αi servo amplifier, 30A continuous output, large-frame motor drive — this listing.
A06B-6096-H107: Single-axis αi servo amplifier, 40A continuous output, high-torque axis application.
A06B-6096-H108: Single-axis αi servo amplifier, 60A continuous output, heavy milling/turning axis.
A06B-6096-H201: Dual-axis αi servo amplifier, 3A+3A, compact twin-axis configuration.
A06B-6096-H202: Dual-axis αi servo amplifier, 6A+6A, standard twin-axis feed drive.
A06B-6096-H203: Dual-axis αi servo amplifier, 10A+10A, mid-range twin-axis module.
A06B-6096-H204: Dual-axis αi servo amplifier, 15A+15A, high-load twin-axis drive.
A06B-6096-H205: Dual-axis αi servo amplifier, 20A+20A, dual heavy-duty axis module.
A06B-6096-H301: Triple-axis αi servo amplifier, 3A+3A+3A, three-axis compact unit.
A06B-6096-H302: Triple-axis αi servo amplifier, 6A+6A+6A, three-axis standard feed module.
A06B-6096-H303: Triple-axis αi servo amplifier, 10A+10A+10A, three-axis mid-range drive.
A06B-6096-H401: PSM (Power Supply Module) companion unit, 11kW DC bus supply for αi amplifier stacks.
A06B-6096-H402: PSM companion unit, 22kW DC bus supply, high-power multi-axis systems.

Sourcing Hard-to-Find & Obsolete A06B-6096 Parts

The A06B-6096 series has entered the mature-to-declining phase of its product lifecycle. FANUC has progressively shifted new machine tool builds toward the A06B-6240 (αi-B) and A06B-6320 (βi-B) amplifier families. As a result, OEM new-stock availability for many A06B-6096 variants is constrained, and lead times through authorized FANUC distributors can extend to 16–26 weeks for less common current ratings.

DriveKNMS maintains a dedicated inventory buffer for A06B-6096 series units, sourced through verified industrial surplus channels, decommissioned machine tool auctions, and direct factory-refurbishment pipelines. All units are cataloged by current rating, axis count, and firmware revision level. For facilities requiring long-term maintenance support contracts covering A06B-6096 amplifiers, DriveKNMS offers multi-year spare parts reservation agreements with guaranteed unit availability windows.

Quality Control for the A06B-6096 Range

The A06B-6096 series presents specific test challenges due to its integrated FSSB fiber-optic communication interface, multi-layer PCB construction, and IGBT power stage architecture. DriveKNMS applies the following test protocol to all A06B-6096 units prior to shipment:

Each unit undergoes DC bus pre-charge verification to confirm inrush current limiting circuit integrity. IGBT gate drive signals are verified under load using a calibrated servo motor test bench matched to the amplifier's rated current output. FSSB communication link integrity is confirmed via loopback test with a FANUC 30i-B controller. Encoder feedback signal quality (A/B/Z differential signals) is measured at rated speed using a reference αi motor. Thermal imaging is performed during a 30-minute full-load burn-in cycle to identify latent solder joint failures or component drift. Units exhibiting any parameter deviation outside FANUC's published tolerance bands are quarantined and not released for sale.
