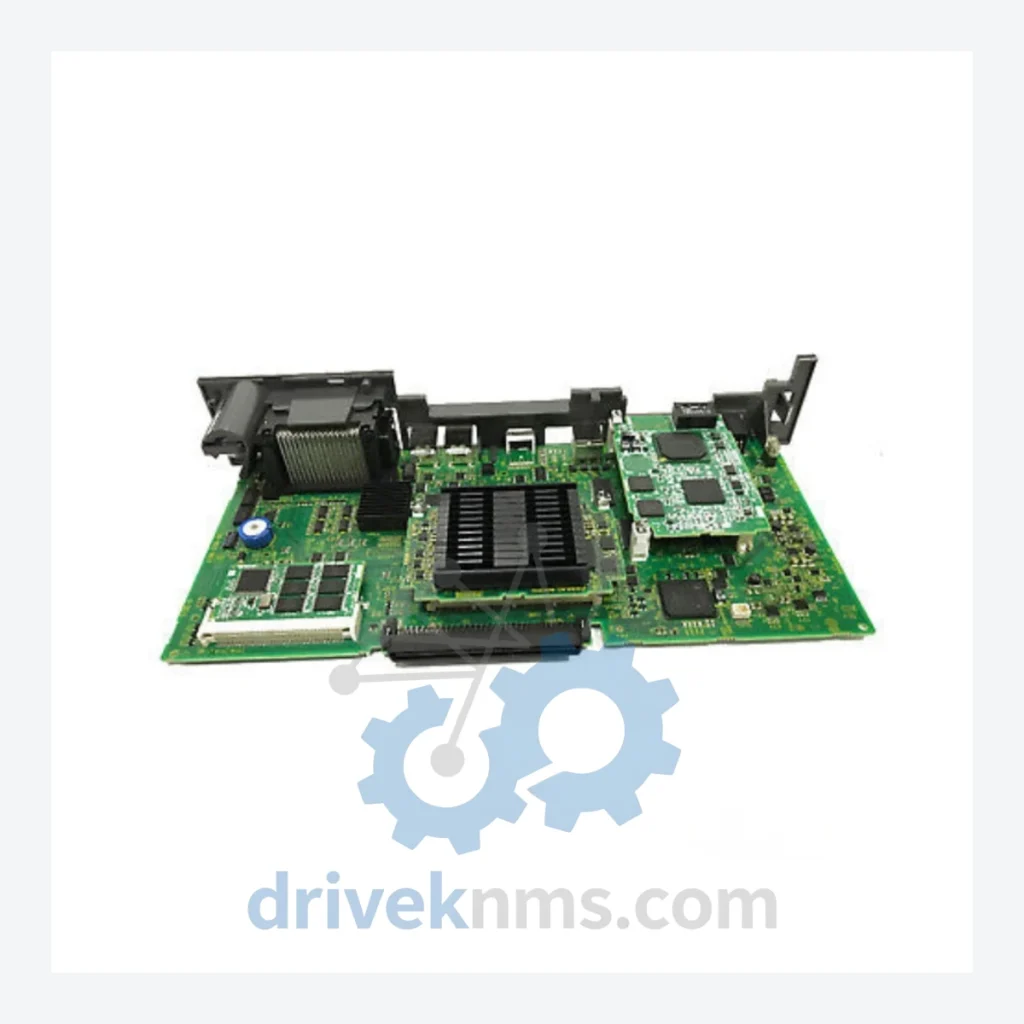

FANUC A16B-3200-0810 Main PCB – Obsolete R-30iB Plus Spare Part

Technical Dossier

Product Details And Specifications

FANUC A16B-3200-0810 Main PCB – Obsolete R-30iB Plus Spare Part

When the main PCB of a FANUC R-30iB Plus controller fails, the production line stops. Not for hours — for weeks. Sourcing a replacement through official channels for a discontinued board means navigating end-of-life notices, minimum order quantities, and engineering assessments that can stretch into months. The downstream cost of a full robot cell upgrade — new controller, re-integration, re-programming, safety re-certification — routinely exceeds USD $150,000 per unit. For a multi-robot line, that figure multiplies accordingly.

DriveKNMS holds verified physical stock of the A16B-3200-0810. This is not a catalog listing. If it is listed, it is on the shelf.

Technical Specifications

Note: Electrical parameters such as voltage ratings and bus specifications are board-level and vary by system configuration. We do not publish unverified figures. Contact us for configuration-specific technical consultation.

Solving the Discontinued Hardware Crisis

The FANUC R-30iB Plus platform was deployed extensively across automotive, electronics, and heavy manufacturing sectors through the 2010s. Many of these installations remain mechanically sound — the robots themselves have decades of service life remaining. The controller, however, is the single point of failure that can render an entire cell inoperable.

FANUC's official end-of-life policy means that once a board like the A16B-3200-0810 exits the production schedule, the only sanctioned path is a full controller upgrade. That upgrade is not simply a hardware swap. It requires re-integration of the teach pendant, re-validation of all motion programs, updated safety circuit mapping, and in many jurisdictions, a fresh CE or OSHA compliance review. The engineering hours alone — before a single robot moves — can exceed 400 hours per cell.

The A16B-3200-0810 is a direct board-level replacement. It restores the controller to operational status without touching the software stack, the motion programs, or the safety architecture. For plant managers operating under capital expenditure freezes or mid-cycle production commitments, this is not a workaround. It is the only rational path.

Facilities that have extended their R-30iB Plus installations by 5 to 10 years through strategic spare board procurement report total maintenance costs that are a fraction of the upgrade alternative. The board cost is a rounding error against the avoided capital expenditure.

Condition & Reliability Assurance

Obsolete boards sourced from the secondary market carry real risk. DriveKNMS applies a 5-stage inspection protocol before any A16B-series board is offered for sale:

• Stage 1 – Visual and Physical Inspection: Full board examination for mechanical damage, burn marks, cracked solder joints, and corrosion on edge connectors and pin headers.
• Stage 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary age-related failure point on FANUC main boards. Each capacitor is checked for bulging, leakage, and ESR deviation. Boards with degraded capacitors are either recapped or rejected.
• Stage 3 – Firmware Version Verification: The firmware revision is documented and cross-referenced against known compatible versions for the R-30iB Plus platform. Mismatched or corrupted firmware is flagged before shipment.
• Stage 4 – Pin and Connector Integrity: All I/O connectors, bus connectors, and inter-board connectors are inspected for oxidation, bent pins, and contact resistance anomalies.
• Stage 5 – Functional Bench Test (where applicable): Boards are powered and tested on compatible test rigs where test infrastructure permits. Test results are documented and available on request.

Units are classified as New Old Stock (NOS), Tested Serviceable, or Refurbished – each classification is disclosed at point of sale.

Key Features for System Maintenance

• Drop-in replacement: The A16B-3200-0810 installs directly into the R-30iB Plus controller cabinet without mechanical modification.
• No re-programming required: Existing motion programs, system variables, and I/O mappings remain intact. Downtime is limited to the physical swap and system restart.
• No engineering re-certification triggered: A like-for-like board replacement does not constitute a system modification under most regulatory frameworks, avoiding the compliance overhead of a controller upgrade.
• Preserves existing tooling investment: End-effectors, fixtures, and peripheral equipment calibrated to the existing robot cell continue to function without adjustment.
• Immediate dispatch: Stock on hand ships within 1–3 business days. No lead time negotiation, no minimum order quantity.

FAQ

What warranty applies to an obsolete part?
DriveKNMS provides a 90-day warranty against defects in materials and workmanship on all tested and refurbished units. New Old Stock units are sold with a 30-day DOA guarantee. Warranty terms are confirmed in writing at point of sale.

How do I know the board is genuine FANUC and not a counterfeit?
All A16B-series boards sourced by DriveKNMS are inspected for FANUC OEM markings, board revision codes, and component date codes consistent with the manufacturing period. We do not handle boards that fail OEM authentication checks.

Should I buy one spare or multiple?
For any installation with more than two R-30iB Plus controllers, holding a minimum of one spare A16B-3200-0810 on-site is a defensible maintenance strategy. The board is discontinued. Secondary market availability will decrease over time, and prices will rise as remaining stock is absorbed. Procurement now, at current pricing, is a straightforward asset protection decision.

Can you source other FANUC A16B-series boards?
Yes. DriveKNMS specializes in obsolete and hard-to-find FANUC, Siemens, ABB, Mitsubishi, and Yaskawa control system components. Contact us with your part number.
