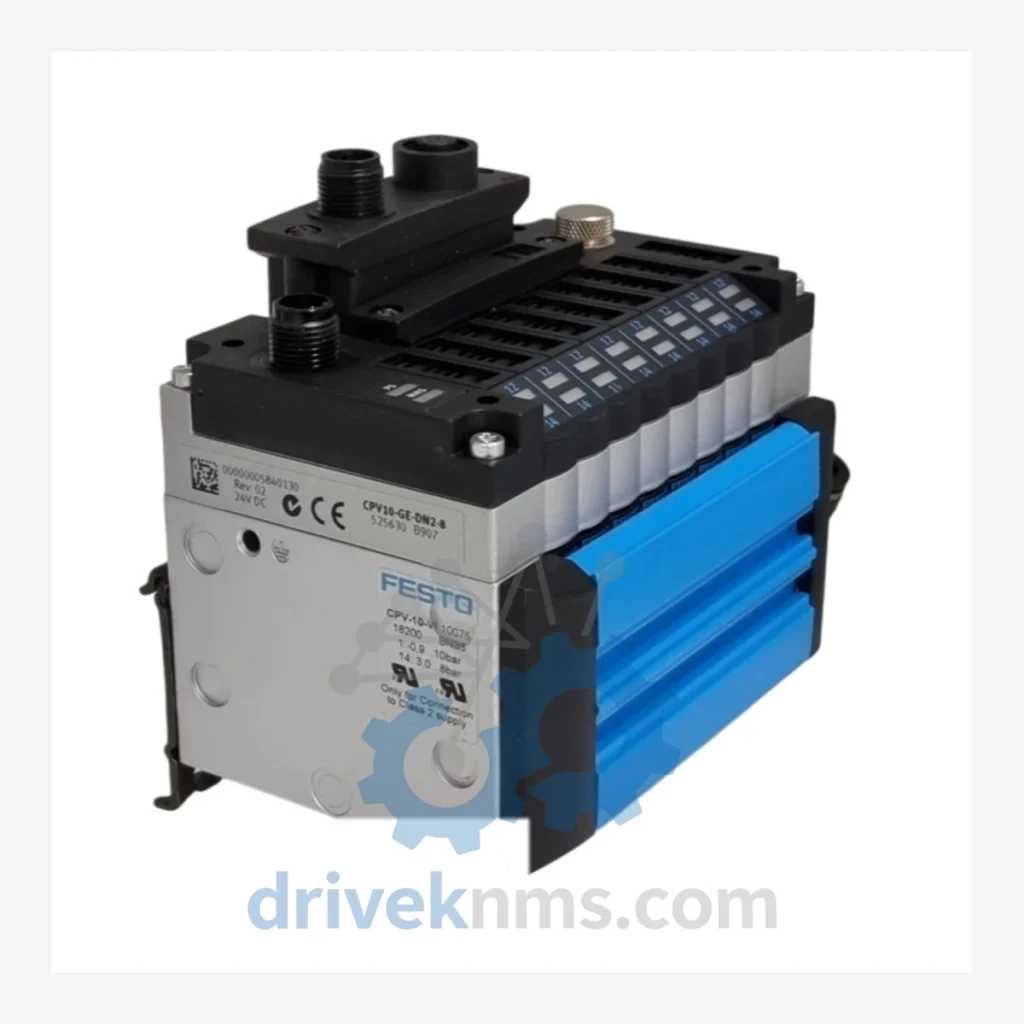

Festo CPV10-GE-DN2-8 525630 Electrical Interface – DeviceNet CPV10 Series Platform

The Festo CPV10-GE-DN2-8 (Part No. 525630) is a DeviceNet fieldbus electrical interface module engineered for the CPV10 compact valve terminal platform. Within a distributed control architecture, this interface node serves as the critical communication bridge between the pneumatic valve island and the upper-level Distributed Control System (DCS) or Programmable Logic Controller (PLC) network. It handles real-time I/O data exchange over the DeviceNet (DN2) protocol, enabling deterministic control of up to 8 solenoid valve positions with sub-millisecond cycle response — a requirement in process-critical applications where valve actuation timing directly impacts safety interlock performance.

Within the IEC 61511 / IEC 61508 functional safety framework, the CPV10-GE-DN2-8 operates as a final element interface component in Safety Instrumented Systems (SIS). Its integration with DeviceNet-capable safety PLCs allows engineers to implement structured valve control within a validated SIL architecture. The module's compatibility with the broader CPV10 ecosystem — including multi-pin connectors, sub-base assemblies, and end plates — ensures seamless system expansion while maintaining compliance with process safety management (PSM) documentation requirements. When deployed alongside certified safety controllers, this interface contributes to the overall Probability of Failure on Demand (PFD) budget of the Safety Instrumented Function (SIF).

Technical Specifications

Specifications are for reference only, subject to official datasheet. Please verify parameters against your system documentation before installation.

Technical Architecture & Design Principles

The CPV10-GE-DN2-8 implements a DeviceNet Group 2 Slave architecture, operating on a CAN (Controller Area Network) physical layer at configurable baud rates (125 / 250 / 500 kbps). The module's MAC ID (node address) is set via onboard rotary switches, enabling straightforward network commissioning without software tools. In a typical DeviceNet segment, the interface participates in polled I/O messaging, where the master scanner cyclically reads/writes the 8-bit output image corresponding to the 8 valve solenoid channels.

Fault Detection & Isolation (FDI): The module incorporates bus-off detection and node guarding / heartbeat mechanisms per the DeviceNet specification. In the event of communication loss, the module transitions valve outputs to a configurable fail-safe state (de-energized by default), which is a fundamental requirement for Emergency Shutdown (ESD) system design under IEC 61511.

Online Diagnostics: The CPV10-GE-DN2-8 provides real-time network status indication via onboard LEDs (Module Status / Network Status), conforming to DeviceNet indicator standards. These diagnostics allow maintenance engineers to identify bus faults, duplicate MAC ID conflicts, or power supply anomalies without interrupting the process.

SIS Integration: When integrated with a certified Safety PLC (e.g., Siemens S7-300F, Rockwell GuardLogix, or Triconex TRICON), the interface enables structured valve control within a validated Safety Instrumented Function (SIF). The deterministic DeviceNet cycle time supports the response time budget required for SIL 2 final element verification per IEC 61511-1 Clause 11.

MTBF & System Availability: High Mean Time Between Failures (MTBF) is essential for maintaining system availability (A = MTBF / (MTBF + MTTR)) in continuous process operations. Engineers should obtain the official Festo MTBF figure from the product datasheet and incorporate it into the overall SIL verification calculation using tools such as EXIDA SERH or similar functional safety assessment software.

Industrial Applications & System Context

The Festo CPV10-GE-DN2-8 525630 is deployed across a wide range of process and discrete manufacturing environments where reliable, fieldbus-integrated pneumatic valve control is required:

• DCS Architecture: Positioned as a remote I/O node on the DeviceNet fieldbus segment, the module receives valve actuation commands from the DCS controller (e.g., Emerson DeltaV, Honeywell Experion PKS, ABB 800xA) via a DeviceNet scanner card. Data flows from the DCS process controller → DeviceNet master → CPV10-GE-DN2-8 → solenoid valve coil → pneumatic actuator.
• ESD / F&G Systems: In Emergency Shutdown (ESD) and Fire & Gas (F&G) systems, the interface enables the safety PLC to de-energize valve solenoids on demand, driving actuators to their safe position. The fail-safe de-energization behavior is critical for compliance with IEC 61511 SIL 2/3 loop requirements.
• SCADA Integration: Via the DeviceNet master scanner, valve status and diagnostic data are surfaced to the SCADA HMI layer, enabling operators to monitor valve positions and network health in real time.
• Turbomachinery Control: In compressor anti-surge and turbine trip systems, the sub-10 ms response time of the CPV10 platform meets the real-time actuation requirements for rotating equipment protection.
• Typical Project Environments: Petroleum refining (CDU, HDS, FCC units), LNG liquefaction trains, offshore production platforms (FPSO, fixed platforms), chemical batch reactors, and nuclear auxiliary systems.
• Functional Safety Standards: IEC 61511 (Process Sector SIS), IEC 61508 (Generic Functional Safety), NFPA 72 (F&G), API 670 (Machinery Protection).

System Integration & Compatible Parts

The CPV10-GE-DN2-8 is designed for direct integration within the Festo CPV10 modular valve terminal ecosystem. Engineers specifying replacement or expansion modules should verify the following compatibility parameters:

• Sub-base / Manifold: CPV10-VI-P4-B (4-station) / CPV10-VI-P8-B (8-station) — confirm station count matches solenoid channel requirement
• End Plates: CPV10-AP-...-... series — required for bus termination and pressure zone separation
• Power Supply Module: 24 V DC regulated supply; verify current capacity against total solenoid load (typically 0.5–1.0 A per station)
• DeviceNet Cable: Thick or thin DeviceNet trunk/drop cable per ODVA specification; verify segment length and termination resistors (121 Ω)
• Firmware / Revision Compatibility: Confirm EDS (Electronic Data Sheet) file version matches the DeviceNet master scanner configuration tool (e.g., Rockwell RSNetWorx, Siemens NCM)
• System Configuration: Please send your complete system BOM (Bill of Materials) and network topology to [email protected] for compatibility verification before ordering.

Browse all Festo products on DriveKNMS →

Every Festo CPV10-GE-DN2-8 525630 unit shipped by DriveKNMS undergoes a rigorous 5-step quality assurance process:

1. Visual Inspection: Physical damage assessment, corrosion check, connector pin integrity verification, and anti-counterfeiting label authentication against known Festo genuine part markings.
2. Power-On Functional Test: Module energized on a CPV10-compatible test bench; DeviceNet communication established, I/O output channels individually actuated and verified for correct solenoid response and output signal accuracy.
3. Model & Revision Verification: Part number label cross-referenced against Festo internal part database; firmware revision and hardware revision code confirmed and documented.
4. ESD-Safe Packaging: Module packed in anti-static (ESD) shielding bag, placed in shock-absorbing foam insert within a double-wall corrugated carton. Fragile and orientation labels applied.
5. 12-Month Functional Warranty: Covers functional defects under normal operating conditions. Warranty claim process initiated via [email protected] with test report documentation.

Global Logistics: Shipments dispatched via FedEx International Priority, DHL Express, or UPS Worldwide Expedited. Real-time tracking number provided upon dispatch. Export documentation (commercial invoice, packing list, COO) prepared for customs clearance.

Technical Support from DriveKNMS

• 🔧 Selection & Compatibility Verification: Our engineering team reviews your system architecture and confirms CPV10-GE-DN2-8 suitability for your DeviceNet network configuration.
• 🔄 Cross-Reference Service: Identify equivalent or replacement models across Festo CPV series and competing valve terminal platforms (SMC, Parker, Norgren).
• 📋 Firmware & Revision Confirmation: We verify hardware revision codes and EDS file versions to ensure compatibility with your DeviceNet master scanner software.
• 📄 Test Reports & Inspection Certificates: Available upon request; includes functional test data and visual inspection records.
• 🔁 Obsolescence & Replacement Assessment: Technical evaluation of alternative modules for discontinued CPV10 variants, including migration path recommendations.
• 💬 24/7 WhatsApp Technical Consultation: Immediate response for urgent plant maintenance and shutdown scenarios. Contact: +86 18359293191

Frequently Asked Questions

Q1: What communication protocols does the CPV10-GE-DN2-8 support?
The CPV10-GE-DN2-8 supports DeviceNet (DN2) — a CAN-based industrial fieldbus protocol operating at 125, 250, or 500 kbps. It functions as a Group 2 Slave device. For other protocol variants (Profibus, CANopen, AS-Interface), Festo offers separate GE interface modules within the CPV10 series.

Q3: Has the refurbished unit undergone SIL-related functional testing?
All units undergo a structured functional test protocol covering DeviceNet communication establishment, individual channel I/O verification, and fail-safe state confirmation. For SIL-loop validation, we recommend supplementing with your site's Proof Test Procedure per IEC 61511-1 Clause 16.
