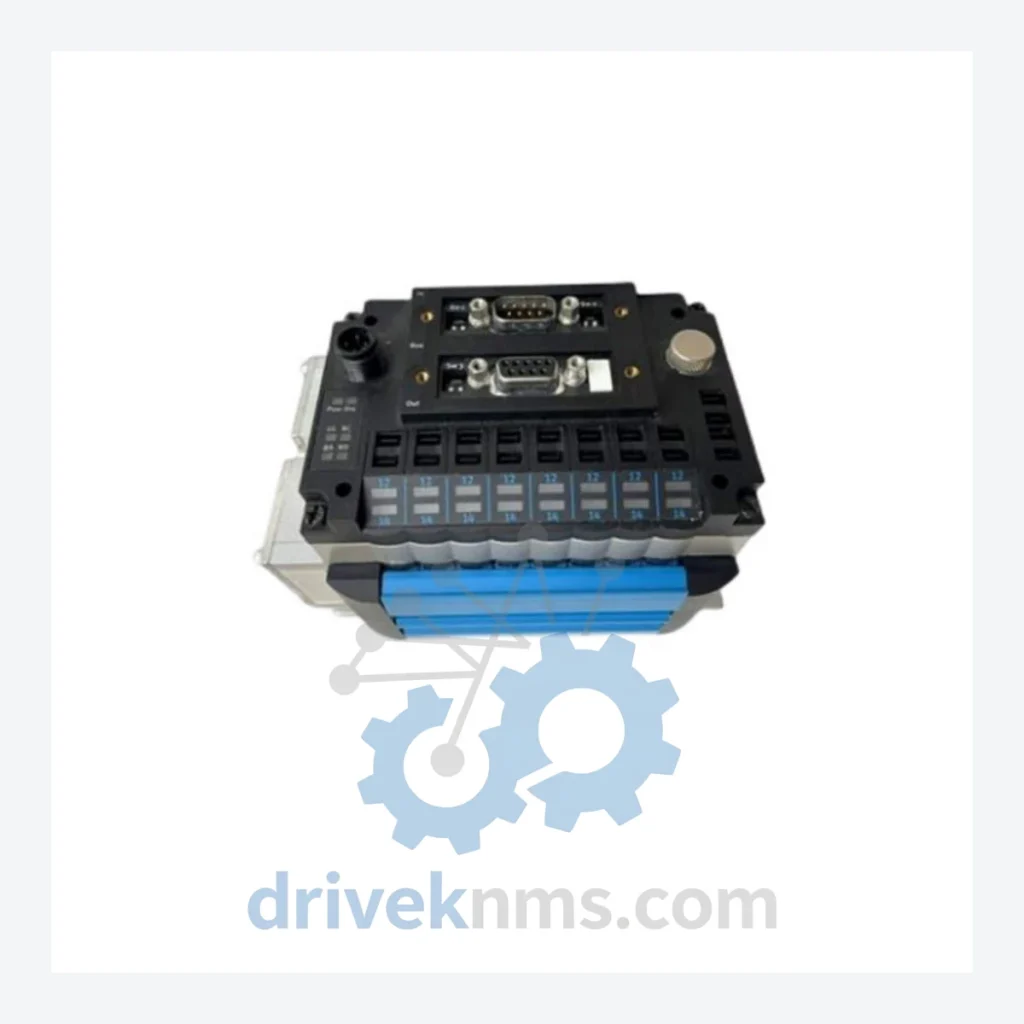

Festo CPV10-VI 18200 Valve Manifold – Obsolete CPV Series Spare Part

Technical Dossier

Product Details And Specifications

Festo CPV10-VI 18200 Valve Manifold – Obsolete CPV Series Spare Part

A single failed valve manifold does not merely halt one actuator. In a multi-zone pneumatic control architecture, the CPV10-VI 18200 is the distribution backbone. When this module fails and no replacement is available, plant managers face a binary choice: source the part, or commit to a full pneumatic system redesign. That redesign — including new PLC programming, re-commissioning, and production downtime — routinely exceeds USD 500,000 on a mid-scale automated line. DriveKNMS maintains verified stock of the Festo CPV10-VI 18200 precisely to eliminate that forced decision.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Festo CPV series was a dominant pneumatic valve platform across European and Asian manufacturing lines throughout the 1990s and 2000s. Automotive body shops, food packaging lines, and semiconductor handling equipment were built around CPV10 terminals as the standard pneumatic interface. Festo has since migrated its product roadmap to the MPA and VTSA series, leaving CPV10-based installations without a direct factory-supported upgrade path.

For a plant running 24/7 operations, the CPV10-VI 18200 sub-base is not a peripheral component — it is the structural interface between the valve solenoids and the pneumatic manifold block. Damage to this module disables the entire valve station. Sourcing a like-for-like replacement from the open market is the only option that avoids a full station rebuild.

How to extend the service life of your CPV10-based system by 5 to 10 years:

• Maintain a minimum two-unit buffer stock of the CPV10-VI 18200 per production line. The cost of two spare units is a fraction of one hour of unplanned downtime on an automated line.
• Implement a scheduled inspection cycle every 12 months: check sub-base sealing surfaces for micro-cracks, verify port thread integrity, and inspect solenoid connector pins for oxidation.
• Document your current firmware and PLC program versions tied to the CPV10 station. When a sub-base is swapped, the electrical interface is identical — no reprogramming is required — but having documentation prevents configuration drift over time.
• Negotiate a long-term supply agreement with a specialist distributor such as DriveKNMS. Spot-market pricing for obsolete Festo parts increases significantly as global stock depletes. Locking in units now protects against future price escalation.
• Avoid cross-brand substitution without engineering sign-off. Pneumatic sub-base geometry and port sizing are manufacturer-specific. An incorrect substitute creates leak paths and pressure imbalances that degrade actuator response and accelerate downstream wear.

For plant managers under pressure to justify continued operation of legacy pneumatic infrastructure, the arithmetic is straightforward: a verified spare part at current market price versus a six-figure system migration. The CPV10-VI 18200 is a documented, low-cost insurance policy against forced capital expenditure.

Condition & Reliability Assurance

Every CPV10-VI 18200 unit shipped by DriveKNMS passes a structured 5-step inspection protocol before dispatch:

1. Visual and dimensional inspection: Sub-base body examined for cracks, warping, and port damage. Sealing surfaces measured against OEM tolerances.
2. Electrolytic capacitor assessment: Where applicable on associated electronics, capacitors are checked for bulging, leakage, and ESR drift — a primary failure mode in components stored beyond five years.
3. Firmware and configuration verification: Unit identity and any embedded configuration data are confirmed against the CPV10-VI 18200 specification.
4. Pin and connector corrosion audit: All electrical contacts inspected under magnification. Oxidized pins are treated or the unit is rejected from stock.
5. Functional pressure test: Where test equipment permits, pneumatic port integrity is verified under controlled pressure to confirm no internal leakage paths.

Units that do not pass all five stages are not offered for sale. Stock condition (new surplus or professionally refurbished) is disclosed at the time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The CPV10-VI 18200 installs directly into existing CPV10 valve terminal assemblies. No mechanical modification to the manifold block is required.
• No reprogramming required: The sub-base is a passive pneumatic and electrical interface. Replacing it does not alter PLC logic, solenoid addressing, or valve sequencing. Maintenance technicians can complete the swap without engineering department involvement.
• Avoids engineering reconstruction costs: Migrating from a CPV10 platform to a current Festo MPA or VTSA system requires new manifold blocks, new solenoid valves, new tubing, and PLC I/O remapping. Total project cost on a 20-station line typically exceeds USD 80,000 before accounting for lost production. A verified CPV10-VI 18200 replacement eliminates that expenditure entirely.
• Supports multi-year asset protection strategy: Holding verified spare stock of this module is a recognized practice in reliability-centered maintenance (RCM) for facilities committed to operating legacy pneumatic infrastructure through the end of its planned service life.

FAQ

What warranty applies to an obsolete part like the CPV10-VI 18200?
DriveKNMS provides a 90-day warranty covering defects identified under normal operating conditions. Warranty terms for refurbished units are confirmed in writing at the time of sale.

How do I confirm the unit is genuine Festo and not a counterfeit?
All units are sourced through documented supply channels. Festo part markings, date codes, and material traceability are verified during intake inspection. Documentation is available upon request.

Should I buy more than one unit?
For any production line where the CPV10-VI 18200 is a single point of failure, holding a minimum of two units is the standard recommendation. Global stock of discontinued Festo CPV10 components is finite and diminishing. Procurement cost today is materially lower than spot-market cost in 12 to 24 months.

Can this part be used with non-Festo control systems?
The CPV10-VI 18200 sub-base is compatible with any control system that interfaces with the CPV10 valve terminal via standard solenoid wiring. It is not dependent on Festo-proprietary communication protocols at the sub-base level.
