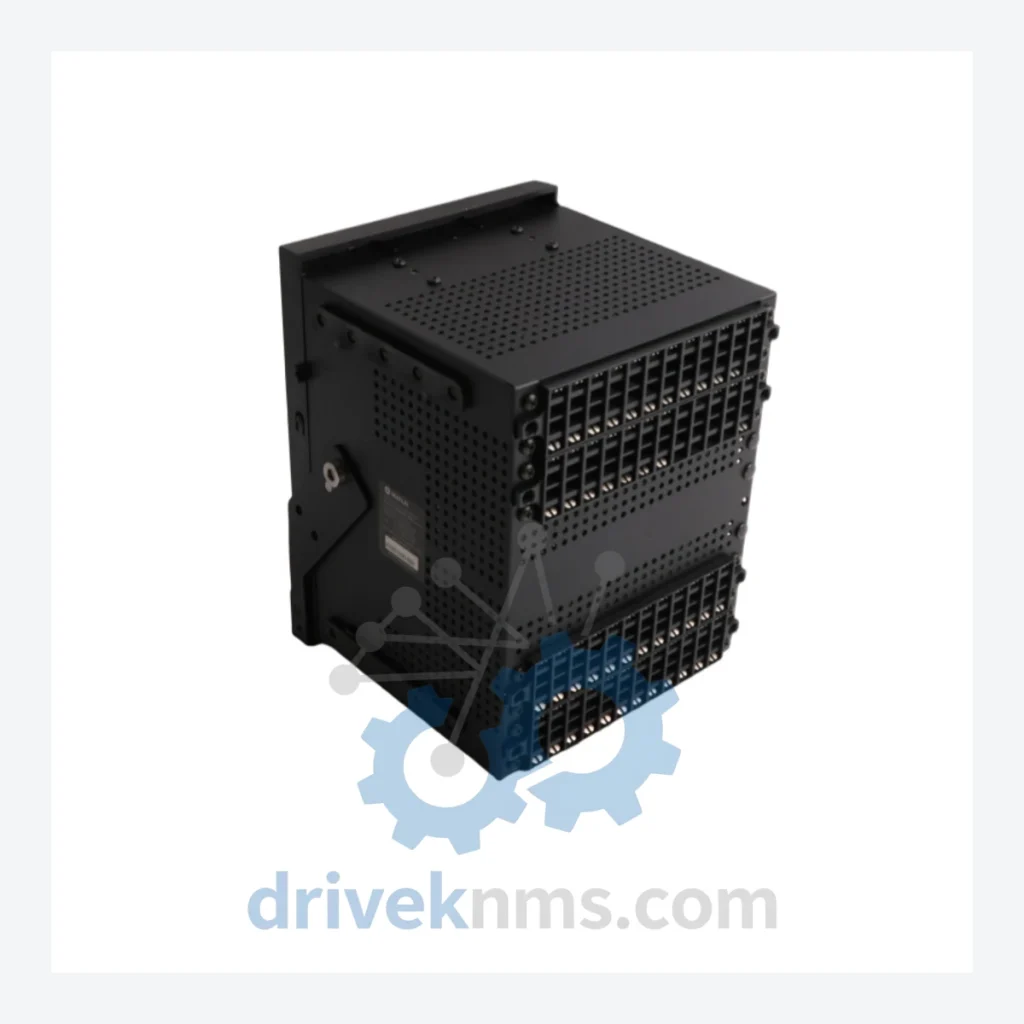

GE 750-P5-G5-D5-HI-A20-R Feeder Management Relay – Obsolete Multilin 750 Series Spare Part

Technical Dossier

Product Details And Specifications

GE 750-P5-G5-D5-HI-A20-R Feeder Management Relay – Obsolete Multilin 750 Series Spare Part

DriveKNMS reviews sourcing status and documentation for this model during RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters specific to this order code (P5/G5/D5/HI/A20/R suffix configuration) are confirmed against GE Multilin 750 Series Instruction Manual. No parameters are stated beyond what is verifiable from published documentation. Buyers requiring full parameter sheets should request documentation at time of inquiry.

Solving the Discontinued Hardware Crisis

The GE Multilin 750 Series was deployed extensively across utility substations, industrial plant feeders, and co-generation facilities throughout the 1990s and 2000s. Its protection logic — overcurrent, earth fault, negative sequence, and reclosing — was engineered into site-specific protection coordination studies that took months to develop and validate.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

For plant engineering teams managing 10, 20, or 50 feeder bays still running 750-series relays, the calculus is straightforward: a single verified spare relay held in the storeroom eliminates the risk of an unplanned multi-week outage while a migration project is scoped, funded, and executed. The cost of the spare is a rounding error against the cost of the alternative.

Asset Life Extension Strategy — How to Keep GE Multilin 750 Systems Running for 5–10 More Years:

• Maintain a minimum two-unit spare pool per relay variant. One unit in service, one on the shelf. When the shelf unit is consumed, source a replacement immediately — do not wait for a second failure.
• Audit firmware versions across all installed 750-series relays. Mismatched firmware between relays in the same protection scheme can cause inconsistent behavior during fault events. Standardize on the highest stable firmware version available for your hardware revision.
• Establish a 5-year relay inspection cycle. Internal inspection should cover electrolytic capacitor condition (look for bulging or electrolyte leakage on the power supply board), contact resistance on output relays, and terminal torque verification. These are the primary failure modes in relays of this age.
• Preserve your setting files and documentation. GE EnerVista 750 Setup software is no longer distributed by GE. Ensure your engineering team retains working copies of the software, all .750 setting files, and the original protection coordination studies. Loss of this documentation significantly increases migration cost.
• Negotiate a deferred migration timeline with your protection engineer. With a verified spare pool in place, most protection engineers will support a 5–7 year deferral of full platform migration, allowing capital budgets to be allocated to higher-priority projects.

Condition & Reliability Assurance

Sourcing obsolete protection relays from the secondary market carries real risk. DriveKNMS applies a structured 5-step quality process to every 750-series unit before it is offered for sale:

1. Visual and mechanical inspection: Full external inspection for physical damage, corrosion on terminals, and case integrity. Units with evidence of field damage are rejected at intake.
2. Electrolytic capacitor assessment: Power supply boards are inspected for capacitor bulging, electrolyte leakage, and ESR degradation — the most common age-related failure point in relays of this vintage.
3. Firmware version verification: The installed firmware version is recorded and disclosed to the buyer. We do not flash or modify firmware. What you receive is what is documented.
4. Pin and terminal corrosion check: Rear connector pins and terminal blocks are inspected under magnification for oxidation and corrosion. Affected contacts are cleaned to IPC standards where remediation is possible; units with structural pin damage are rejected.
5. Functional power-up test: Each unit is powered and verified to complete its self-test sequence without fault codes. Communication port response is verified where test equipment permits.

Key Features for System Maintenance

• Drop-in replacement: The 750-P5-G5-D5-HI-A20-R is a direct form-fit-function replacement for any existing 750-series unit with the same order code. Rear terminal assignments are identical. No panel re-wiring is required.
• Setting file compatibility: Existing .750 setting files load directly into a replacement unit via GE EnerVista 750 Setup software. No protection re-coordination is required for a like-for-like swap.
• No engineering re-work: Because the replacement relay is identical to the installed unit, protection coordination studies, relay test records, and SCADA tag assignments remain valid. The cost of the swap is limited to the relay price and field labor for the physical exchange.
• SCADA continuity: RS-485 Modbus RTU and DNP3 communication profiles are preserved. No changes to RTU polling tables or SCADA displays are required.
• Avoids capital project trigger: Replacing a failed relay with an identical spare keeps the installation within its existing approved design basis. A platform migration, by contrast, typically triggers a full protection review, new drawings, and regulatory notification in many jurisdictions.

Q: Should I buy one spare or multiple?
A: For facilities with more than three 750-series bays in service, we recommend holding a minimum of two spares per order code variant. The 750-P5-G5-D5-HI-A20-R is no longer manufactured. Each unit sold from the secondary market reduces the global available pool. Prices for remaining units will increase as supply contracts. Purchasing ahead of need is the lower-cost strategy.
