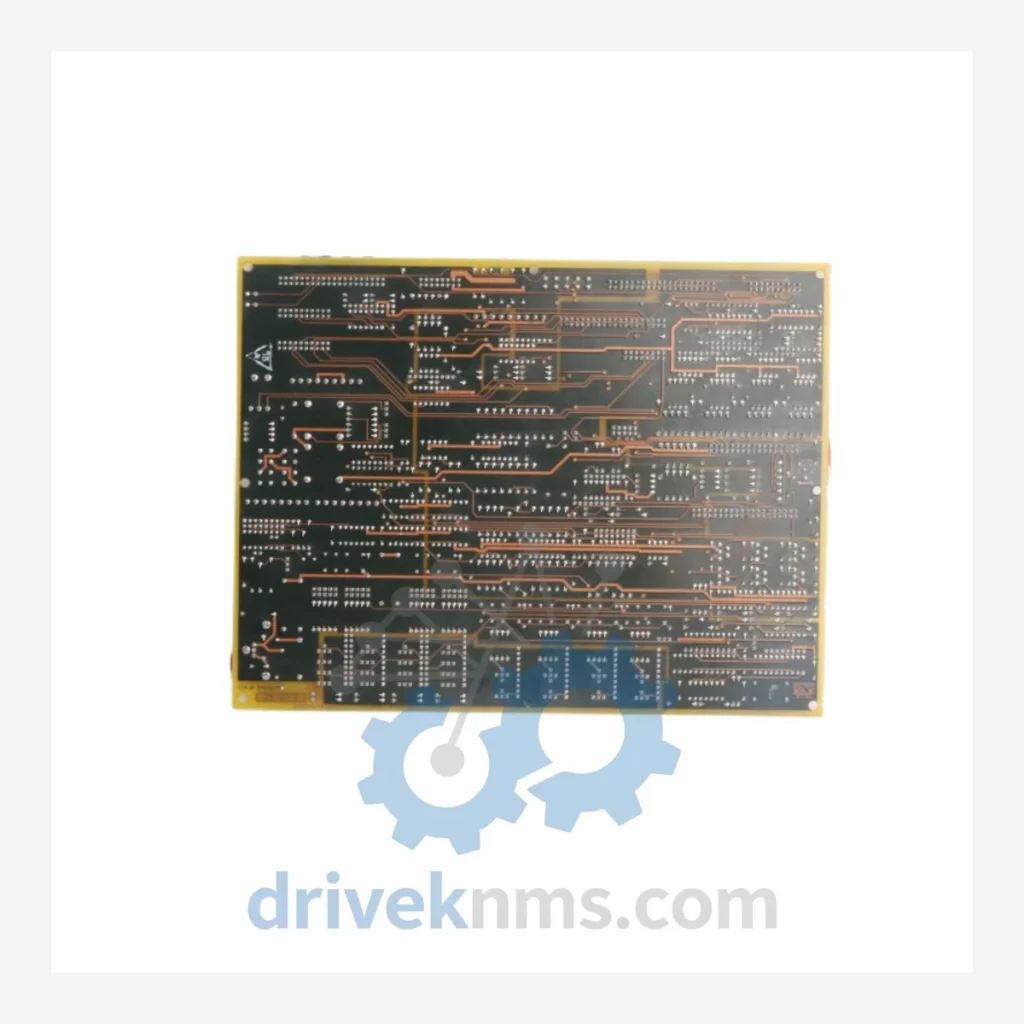

GE DS200 Series Modules: DS200TCCBG1BED Analog Board

Technical Dossier

Product Details And Specifications

GE DS200 Series Technical Notes

The Evolution of DS200 Architecture

The DS200 module family was introduced as part of GE's Mark V control platform in the late 1980s and continued through the Mark VI transition in the mid-1990s. Early DS200 boards operated on a VME-based backplane with proprietary GE serial communication protocols (IONet and ARCNET). As the Mark VI platform matured, GE introduced enhanced versions with improved EMI shielding, revised EPROM firmware, and updated connector standards, while maintaining backward compatibility with existing Mark V racks in most configurations.

The transition from Mark V to Mark VI introduced significant architectural changes: the Mark VI adopted a triple-redundant (TMR) control architecture as standard, whereas Mark V offered both simplex and TMR configurations. DS200 boards designed for Mark V simplex systems are not directly interchangeable with Mark VI TMR racks without engineering review. Firmware revision levels (denoted by the suffix codes such as G1, G2, BED, AEF) are critical compatibility identifiers — mismatched firmware between a replacement board and the existing rack controller will result in communication faults or system rejection of the module.

GE has formally declared the Mark V platform end-of-life, with Mark VI support transitioning to the Mark VIe platform. This lifecycle status makes DS200 spare parts increasingly difficult to source through OEM channels, driving demand for certified aftermarket and refurbished inventory.

DS200 Full Catalog & Functionalities (SKU List)

Controllers & Processor Boards

• DS200TCQAG1BHF: Mark V TMR I/O controller, triple-redundant processing core
• DS200TCQCG1BHF: Mark V TMR controller with enhanced diagnostics firmware
• DS200TCCBG1BED: Analog I/O board, signal conditioning for turbine control loops
• DS200TCDAG1AHF: Mark V simplex controller, single-channel process control
• DS200TCDAH1BHF: Mark V controller with high-density I/O expansion

Analog & Digital I/O Modules

• DS200DTBAG1AAA: Digital terminal board, field wiring interface for discrete I/O
• DS200DTBCG1AAA: Digital terminal board, enhanced version with surge protection
• DS200ATBAG1A: Analog terminal board, 4–20 mA loop interface
• DS200ATBCG1A: Analog terminal board, thermocouple and RTD input configuration
• DS200IIBDG1A: Intelligent interface board, dual-channel analog input
• DS200SIOBG1A: Serial I/O board, RS-422/RS-485 communication interface

Power Supply Modules

• DS200PCCAG1A: Power conditioning and control board, 28 VDC regulated output
• DS200PCAAG1A: Primary power supply board, rack-level DC distribution
• DS200PSBAG1A: Power supply board, auxiliary 5 VDC and 15 VDC rails

Communication & Network Adapters

• DS200CPCAG1A: Communication processor board, IONet/ARCNET interface
• DS200EXPSG1A: Expansion serial board, multi-drop network connectivity
• DS200TCRAG1AHF: Redundancy controller board, automatic failover management

Sourcing Hard-to-Find & Obsolete DS200 Parts

All DS200 inventory at DriveKNMS is cataloged by full part number including revision suffix (e.g., G1BED, G1AHF), which is the primary compatibility determinant for Mark V and Mark VI rack integration. Customers are advised to provide the complete part number from the board label, not the rack documentation, as revision levels may have been updated during prior maintenance cycles.

Quality Control for the DS200 Range

DS200 modules present specific test challenges due to their proprietary backplane communication protocols and firmware-dependent initialization sequences. Standard bench power application is insufficient to validate board functionality — each module requires integration into a compatible Mark V or Mark VI rack environment, or a dedicated test fixture that replicates the backplane signal environment.

DriveKNMS applies the following test protocol to DS200 inventory:

• Visual inspection: component-level examination for capacitor degradation, solder joint integrity, and connector pin condition
• Backplane communication test: module is seated in a live test rack and IONet/ARCNET communication handshake is verified
• Analog channel calibration: for analog I/O boards (including DS200TCCBG1BED), all input and output channels are verified against NIST-traceable reference signals at 0%, 25%, 50%, 75%, and 100% of rated range
• Firmware revision verification: EPROM contents are read and compared against GE revision documentation to confirm the board matches the labeled suffix code
• Thermal cycle soak: boards are operated through a minimum 4-hour thermal cycle to screen for intermittent failures
• Final functional sign-off: test results are documented and retained with each unit's serial record
