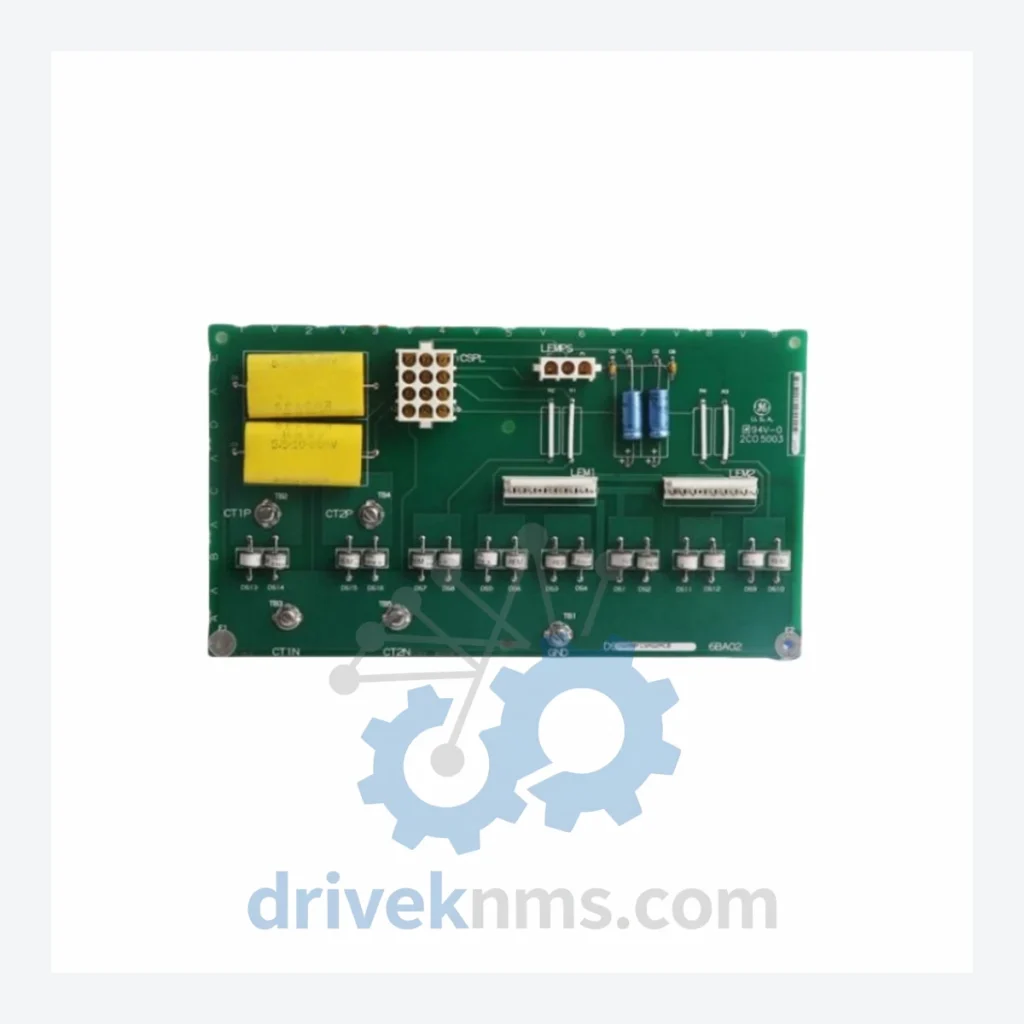

GE IS200 Series Modules: IS200VSV0H1BED

Technical Dossier

Product Details And Specifications

GE IS200 Series Technical Notes

The GE IS200 series represents the core I/O, control, and communication module family deployed within GE's Mark VIe Distributed Control System (DCS) platform. Installed across global heavy industry — including petrochemical complexes, nuclear power stations, offshore platforms, LNG terminals, and crude oil refineries — the IS200 series forms the backbone of turbine control, generator excitation, and plant-wide process automation. Mark VIe systems utilizing IS200 modules are documented in active service at facilities operated by ExxonMobil, Shell, Saudi Aramco, and major nuclear utilities across North America, Europe, and Asia-Pacific. The modular architecture supports hot-standby redundancy, triple modular redundancy (TMR), and simplex configurations, making IS200 modules a long-term infrastructure commitment for any facility that has adopted the GE Mark VIe platform.

The Evolution of IS200 Architecture

The IS200 module family was introduced as part of the Mark VIe control system, which succeeded the Mark VI (IS200 predecessor modules used the IS200 prefix under the earlier Mark VI platform as well). Early-generation IS200 modules communicated via the IONet Ethernet-based I/O network, a proprietary GE protocol operating at 100 Mbps. Later revisions introduced dual-redundant IONet ports and enhanced diagnostics firmware. The series spans multiple hardware revisions (A, B, C, D suffix variants) reflecting PCB layout changes, component substitutions driven by semiconductor EOL events, and firmware compatibility updates. Compatibility between hardware revisions is generally maintained within the same functional module type, but cross-revision substitution must be validated against the site's Mark VIe toolset (ToolboxST) version. As GE transitioned to GE Vernova following the 2023 corporate restructuring, the IS200 series entered a managed lifecycle phase: new installations favor the IS420 and IS410 successor families, while IS200 modules remain the only compatible option for existing Mark VIe racks without a full system upgrade.

IS200 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the GE IS200 series, organized by functional category:

Servo / Valve Driver Modules

• IS200VSV0H1BED: Servo valve driver module; provides analog output signals to electrohydraulic servo valves for turbine control applications.
• IS200VSVOH1B: Alternate revision of the servo valve driver; functionally equivalent to H1BED with minor PCB revision differences.
• IS200VSVO H1A: Early A-revision servo valve output module; used in initial Mark VIe deployments prior to H1B hardware update.

Analog I/O Modules

• IS200AAIAH1A: Analog input module; 16-channel, 4–20 mA / 0–10 V configurable inputs for process variable monitoring.
• IS200AAOAH1A: Analog output module; 8-channel isolated analog outputs for final control element positioning.
• IS200ATAIH1A: Thermocouple input module; 12-channel, supports J, K, T, E, R, S, B type thermocouples with cold junction compensation.
• IS200ERTDH1A: RTD input module; 12-channel, supports PT100/PT1000 resistance temperature detectors.

Digital I/O Modules

• IS200DAIAH1A: Digital input module; 24 VDC, 32-channel discrete input for contact and proximity sensor interfacing.
• IS200DAOAH1A: Digital output module; 24 VDC, 16-channel relay and transistor output for solenoid and actuator control.
• IS200EDCFH1A: Enhanced digital contact input module; 32-channel, wet contact inputs with configurable debounce filtering.

CPU / Controller Modules

• IS200UCVEH2A: Mark VIe unit controller; primary CPU module executing turbine control application logic, supports dual IONet.
• IS200UCVEH1A: Earlier H1A revision of the unit controller; compatible with Mark VIe simplex and TMR configurations.
• IS200EPDMH1A: Ethernet-based process data module; handles high-speed data acquisition and historian interfacing.

Communication / Network Modules

• IS200ENEGH1A: Ethernet network gateway module; bridges IONet to plant Ethernet (MODBUS TCP, OPC-DA).
• IS200EPCTG1A: Profibus DP communication module; enables IS200 rack integration with third-party Profibus field devices.
• IS200IOCIH1A: IONet communication interface module; manages redundant IONet segment switching and diagnostics.

Power Supply Modules

• IS200EPSMH1A: Mark VIe rack power supply module; 24 VDC regulated output, supports redundant power feed configuration.
• IS200BPPBH1A: Backplane power distribution board; distributes regulated DC power across IS200 I/O rack slots.
