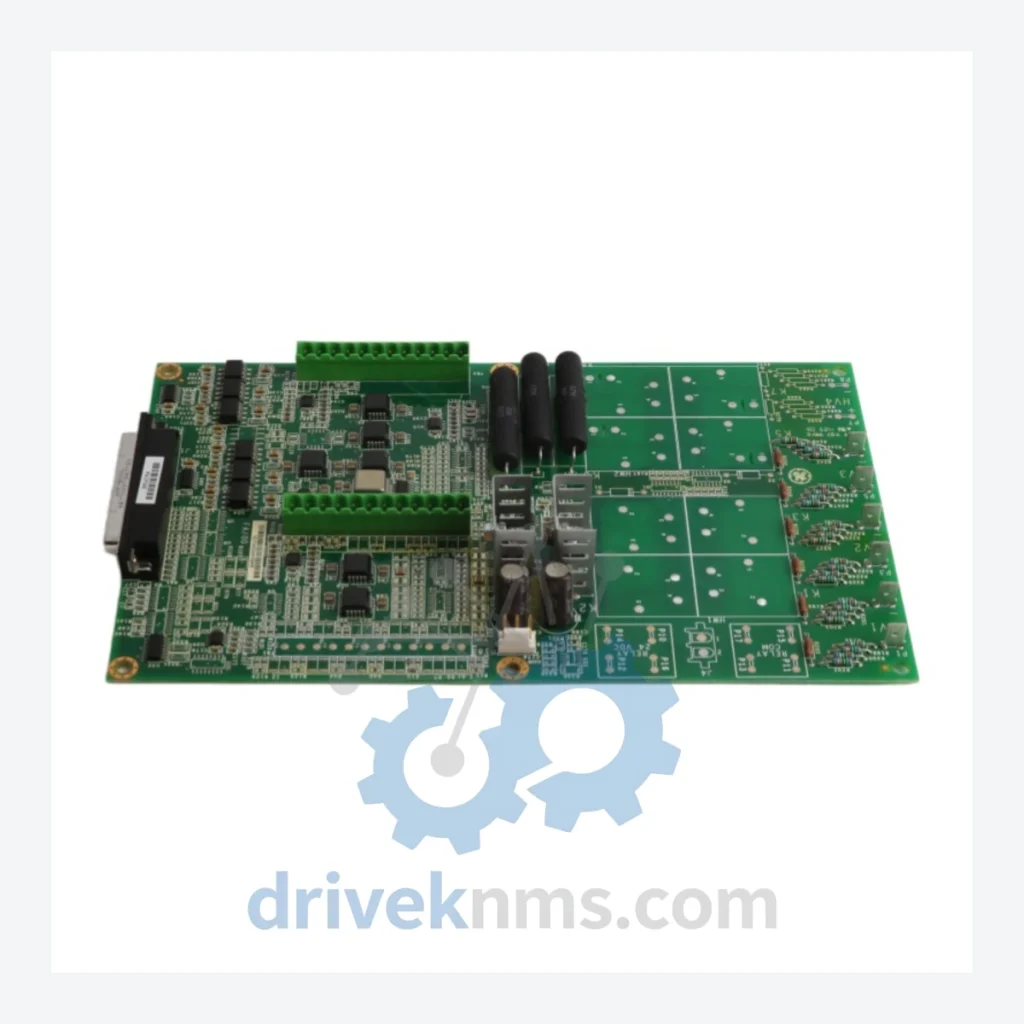

GE IS210AEAAH2BJE Module – IS210 Series

Technical Dossier

Product Details And Specifications

GE IS210 Series Technical Notes

The GE IS210 series represents the core I/O and control module family deployed within GE's Mark VI Turbine Control System and EX2100 Excitation Control platform. These systems are installed across the global heavy industrial base — including combined-cycle gas turbine plants, nuclear auxiliary systems, petroleum refinery compressor trains, and petrochemical reactor control loops. The IS210 designation covers a broad range of printed circuit board assemblies (PCBAs) that interface directly with the VME-based backplane architecture of the Mark VI cabinet. Installed base estimates place Mark VI and EX2100 systems in service at thousands of sites across North America, Europe, the Middle East, and Asia-Pacific, with many units commissioned between 1995 and 2015 now entering extended lifecycle or end-of-support phases.

The Evolution of IS210 Architecture

The IS210 module family was introduced as part of GE's transition from the earlier Mark V platform (IS200 series) to the fully digital, triple-redundant Mark VI architecture in the mid-1990s. The Mark VI system uses a TMR (Triple Modular Redundancy) or simplex configuration, with IS210 boards occupying defined slots in the VCMI, VTUR, VPRO, and VAUX I/O packs. Early IS210 revisions (suffix A, B) used through-hole and mixed SMT construction; later revisions (suffix E, F, H) transitioned to full SMT with conformal coating options (suffix J in the part number indicates conformal coat). The IS210 architecture communicates over the Mark VI IONet (a proprietary Ethernet-based I/O network) and the ARCNET serial bus for legacy compatibility. As GE transitioned to the Mark VIe platform post-2010, IS210 boards were not forward-compatible, creating a permanent installed-base dependency on original or equivalent replacement modules. Many IS210 variants are now classified as obsolete by GE Vernova (formerly GE Gas Power), making third-party sourcing the primary procurement channel for maintenance and emergency replacement.

IS210 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced IS210 series modules. Each entry reflects the module's primary functional role within the Mark VI or EX2100 system architecture.

Analog & Digital I/O Boards

• IS210AEAAH2BJE: Conformal-coated analog/digital I/O board for Mark VI turbine control, mixed signal interface.
• IS210AEAAH1B: Standard (non-coated) analog/digital I/O board, Mark VI VTUR/VPRO rack compatible.
• IS210AEBAH1B: Analog input board, 16-channel, 4–20 mA and thermocouple input, Mark VI excitation.
• IS210BAIAH1BED: Analog input board with enhanced EMI filtering, used in high-noise refinery environments.
• IS210DAIAH1A: Digital-to-analog interface board, 8-channel DAC output, EX2100 excitation control.
• IS210DSPXH1A: Digital signal processing board, high-speed interrupt handling for turbine speed sensing.

Digital Input / Output Modules

• IS210DTBAH1A: Digital terminal board, 24 VDC discrete I/O, field wiring termination for VTUR pack.
• IS210DTBCH1A: Digital terminal board, 125 VDC contact input version, substation-grade isolation.
• IS210DCBAH1A: Digital contact input board, 32-channel, dry contact and wet contact configurable.
• IS210DSVOH1A: Digital servo output board, 4-channel, ±200 mA servo valve drive for fuel control.

CPU & Controller Boards

• IS210CPNBH1A: Mark VI main controller board (VCMI), hosts the primary control processor and IONet interface.
• IS210CPNBH1B: Revised VCMI controller, improved DRAM capacity and watchdog timer resolution.
• IS210HSLAH1A: High-speed link adapter board, peer-to-peer communication between Mark VI controllers.

Communication & Network Adapters

• IS210ENETAH1A: Ethernet network interface board, 10/100 Mbps, HMI and historian connectivity.
• IS210ACLAH1A: ARCNET communication link board, legacy serial bus interface for Mark VI I/O packs.
• IS210CCSAH1A: Cross-controller synchronization board, used in TMR configurations for vote arbitration.

Power Supply Modules

• IS210PSVBH1A: 28 VDC power supply board, internal rack power distribution for Mark VI I/O packs.
• IS210PSVCH2A: Dual-redundant power input board, automatic switchover, 24/28 VDC field supply.

Quality Control for the IS210 Range

IS210 boards present specific test challenges due to their VME backplane interface, proprietary ARCNET/IONet communication stacks, and mixed analog-digital signal paths. DriveKNMS applies a structured test protocol to all IS210 units prior to dispatch. Visual inspection covers solder joint integrity, conformal coat condition, and component-level damage assessment under 10× magnification. Functional testing uses a dedicated Mark VI rack simulator to verify backplane communication, I/O channel response, and firmware version compatibility. Analog I/O boards are tested against calibrated signal sources across the full 4–20 mA and thermocouple input ranges. Digital I/O boards are verified for contact wetting voltage thresholds and output drive current. Communication boards are tested for ARCNET node addressing and Ethernet link negotiation. All units are assigned a test record with pass/fail data retained for traceability.
