GE IS200 Series Modules: IS210MVRBH1A IS200MVRBH1ACC

Technical Dossier

Product Details And Specifications

GE IS200 Series Technical Notes

The GE IS200 series represents the core I/O and control module family deployed within GE's Mark VI Turbine Control System — one of the most widely installed distributed control platforms in global heavy industry. IS200 series boards are found in gas turbine power plants, combined-cycle facilities, petrochemical refineries, offshore platforms, and nuclear auxiliary systems across North America, Europe, the Middle East, and Asia-Pacific. The Mark VI platform, which the IS200 series underpins, controls GE Frame 6, Frame 7, Frame 9, and LM-series gas turbines, as well as steam turbines and generators. Installed base estimates exceed tens of thousands of units globally, making IS200 series spare parts among the most consistently demanded components in the industrial MRO market.

The Evolution of IS200 Series Architecture

The IS200 series was introduced as part of the Mark VI control system in the mid-1990s, succeeding the earlier Mark V platform (TCCA, TCPS, TCCB boards). The Mark VI architecture is built on a triple-redundant (TMR) or simplex (S) hardware configuration, with IS200 boards serving as the physical interface layer between the controller backplane and field instrumentation.

Early IS200 revisions (Rev A–C) used through-hole and mixed SMT construction. Later revisions (Rev D onward) transitioned to full SMT with improved FPGA firmware for higher-speed I/O scanning. The IS210 sub-series (e.g., IS210MVRBH1A) represents a hardware revision of the IS200 base design, maintaining backward compatibility at the backplane connector level while incorporating updated component sourcing and minor circuit revisions.

IS200 Series Full Catalog & Functionalities (SKU List)

Controllers & Processor Modules

• IS200DSPXH1A: Mark VI digital signal processor board, primary control execution module.
• IS200DSPXH1B: Revised DSP board, updated FPGA firmware, drop-in replacement for H1A.
• IS200EXHSG1A: Exciter hardware signal board, interfaces generator excitation control loops.
• IS200EACFG1A: Exciter AC feedback board, processes AC voltage/current feedback signals.

I/O Interface Modules

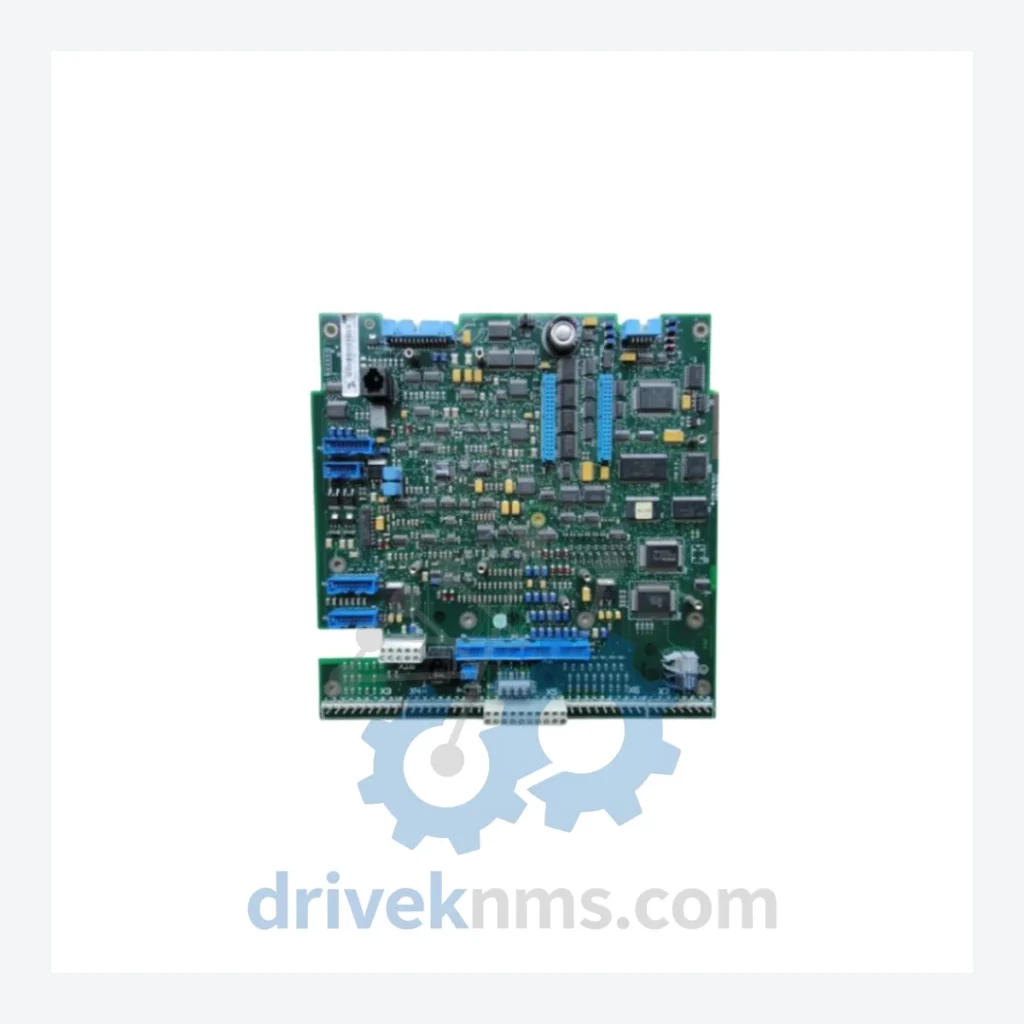

• IS210MVRBH1A: Motor/valve relay board, 24-relay output interface for actuator control circuits. (Current page SKU)
• IS200MVRBH1ACC: Alternate configuration of the MVRB relay board with connector variant C. (Current page SKU)
• IS200AIBHG1A: Analog input board, 16-channel 4–20 mA/0–10 V differential input module.
• IS200AOBHG1A: Analog output board, 8-channel isolated 4–20 mA output for final control elements.
• IS200BIOBH1A: Binary I/O board, 32 discrete inputs and 16 relay outputs, mixed-signal interface.
• IS200TRPGH1A: Triple redundancy protection board, manages TMR voting logic for critical I/O.
• IS200VRTDH1C: Vibration and RTD input board, 16-channel thermocouple/RTD and 4-channel vibration input.
• IS200ECTBG1A: Exciter CT/PT interface board, processes current and potential transformer signals.

Communication & Network Adapters

• IS200STCIH1A: Serial/Ethernet communication interface board, supports Modbus RTU and TCP/IP.
• IS200IOCIH1A: I/O controller interface board, manages backplane communication between I/O packs and controller.
• IS200GDDBG1A: Gate drive distribution board, interfaces IGBT gate signals for static excitation systems.

Power Supply Modules

• IS200PSCDG1A: 28 VDC power supply and conditioning board, primary rack power distribution module.
• IS200EPCTG1A: Exciter power conversion and transformer board, manages AC/DC conversion for excitation bus.
• IS200BPPBG1A: Backplane power and protection board, provides over-voltage and short-circuit protection for IS200 rack.

Quality Control for the IS200 Series Range

IS200 series boards present specific test challenges due to their multi-layer backplane connectors, FPGA-based I/O scanning logic, and relay output circuits that degrade under high-cycle conditions. DriveKNMS applies a structured test protocol for all IS200 units prior to shipment:

• Visual Inspection: 10× magnification inspection of all SMT solder joints, connector pins, and relay coil assemblies. Boards with cracked solder, corroded contacts, or damaged FPGA packages are rejected at intake.
• Powered Functional Test: Each board is installed in a live Mark VI test rack and subjected to full I/O scan cycle verification. Relay outputs are actuated through 500 cycles minimum to confirm contact integrity.
• Backplane Communication Verification: IONet and ARCNET communication protocols are verified using GE Toolbox software. All boards must pass TMR voting simulation before release.
• Firmware Revision Logging: FPGA firmware version is read and recorded. Boards with outdated firmware are updated where applicable, or clearly marked with revision level for customer compatibility assessment.
• Burn-In: High-risk boards (MVRB, BIOB) undergo 48-hour thermal burn-in at 50°C ambient to screen for early-life failures.
