GE Multilin 489 Series: Comprehensive Module Range and Technical Overview

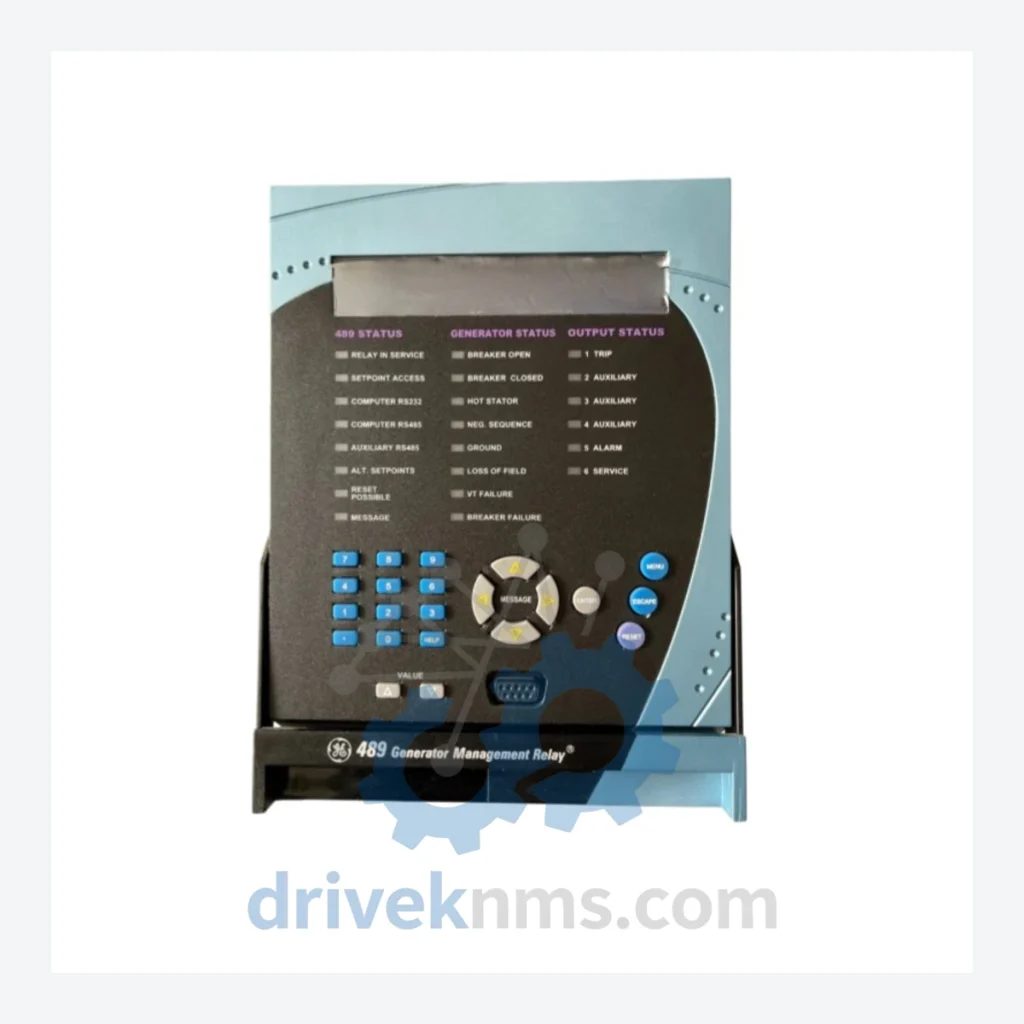

The GE Multilin 489 Generator Management Relay is a purpose-built protection and control device deployed across heavy industrial sectors including petrochemical plants, nuclear power stations, offshore platforms, and oil refineries. First introduced in the 1990s under GE Multilin's industrial protection portfolio, the 489 established itself as a standard-specification relay for medium-voltage generator sets rated from 1 kV to 15 kV. Its integrated protection functions—covering differential, overcurrent, undervoltage, reverse power, loss-of-field, and synchronism check—eliminated the need for discrete relay panels in many installations, reducing panel footprint and wiring complexity. Installed base estimates place the 489 in tens of thousands of generating units globally, spanning utility-scale backup generators, cogeneration facilities, and distributed energy installations. The relay communicates via RS-485 Modbus RTU and DNP3.0, making it compatible with legacy SCADA architectures that remain operational in brownfield plants. Its continued presence in active installations—despite the availability of successor platforms—reflects both the capital cost of relay replacement and the stability requirements of critical generation assets.

The Evolution of 489 Architecture

The 489 platform progressed through several firmware and hardware revisions across its production lifecycle. Early units (pre-2000) shipped with limited front-panel HMI capability and required EnerVista 489 Setup software for full configuration. Subsequent revisions introduced expanded I/O counts, improved CT input accuracy, and enhanced communication stack support for DNP3.0 Level 2. The hardware platform is built around a fixed-function DSP core rather than a programmable logic engine, which distinguishes it from later GE Multilin products such as the 869 and the Universal Relay (UR) series. This architecture decision has direct implications for compatibility: 489 units cannot be field-upgraded to UR-series firmware, and replacement of a failed 489 with an 869 requires reconfiguration of all protection settings, I/O wiring, and communication parameters. The relay's analog input section uses dedicated CT and VT input transformers, and the output relay contacts are hardwired to fixed function assignments—a design that simplifies commissioning but limits post-installation reconfiguration. Units manufactured after approximately 2005 incorporated revised power supply modules with wider input voltage tolerance (85–265 VAC/VDC universal input on HI-A20 variants). The 489 entered end-of-active-development status as GE Multilin transitioned its generator protection portfolio to the 869 platform, though the 489 remains listed for spare parts and repair support through authorized channels and independent MRO suppliers.

489 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented production variants of the GE Multilin 489 Generator Management Relay. Each model designation encodes the hardware configuration: power supply type, I/O count, communication options, and panel mounting format.

489-P5-HI-A20-E: Standard 489, 5A CT input, high-range VT, universal AC/DC PSU, RS-485 Modbus/DNP3, drawout case
489-P5-HI-A20-E-H: Identical to -E variant with conformal coating for high-humidity environments
489-P5-LO-A20-E: 5A CT input, low-range VT input (for lower voltage generator applications), universal PSU, drawout
489-P1-HI-A20-E: 1A CT input version, high-range VT, universal PSU, RS-485, drawout case
489-P1-LO-A20-E: 1A CT input, low-range VT, universal PSU, drawout case
489-P5-HI-A20-F: 5A CT, high-range VT, universal PSU, fiber optic communication port variant
489-P5-HI-A20-E-L: 5A CT, high-range VT, universal PSU, RS-485, flush/panel-mount case (non-drawout)
489-P5-HI-A20-E-R: 5A CT, high-range VT, universal PSU, rack-mount configuration
489-P5-HI-A00-E: 5A CT, high-range VT, standard PSU (120 VAC fixed), RS-485, drawout
489-P1-HI-A00-E: 1A CT, high-range VT, standard 120 VAC PSU, RS-485, drawout
489-P5-LO-A00-E: 5A CT, low-range VT, standard 120 VAC PSU, RS-485, drawout
489-P1-LO-A00-E: 1A CT, low-range VT, standard 120 VAC PSU, RS-485, drawout
489-P5-HI-A20-E-T: 5A CT, high-range VT, universal PSU, RS-485, with extended temperature rating (-40°C to +70°C)
489-P5-HI-A20-E-C: 5A CT, high-range VT, universal PSU, RS-485, drawout with enhanced EMC shielding
489-P5-HI-A20-E-D: 5A CT, high-range VT, universal PSU, dual RS-485 port configuration for redundant SCADA links
489-P5-HI-A20-E-G: 5A CT, high-range VT, universal PSU, IRIG-B time synchronization input variant
489-P5-HI-A20-E-S: 5A CT, high-range VT, universal PSU, enhanced surge withstand capability (SWC) per IEEE C37.90.1

Sourcing Hard-to-Find & Obsolete 489 Series Parts

The GE Multilin 489 is classified as a mature/end-of-active-production platform. GE Grid Solutions (formerly GE Multilin) has transitioned primary development resources to the 869 Generator Management Relay, and new 489 unit production is limited to fulfillment of existing long-term service agreements. This creates a defined supply constraint for operators who require like-for-like replacement of failed units without undertaking a full protection system upgrade. DriveKNMS maintains a dedicated inventory position in 489 series units and sub-assemblies, including power supply boards, display modules, communication interface cards, and output relay contact assemblies. Sourcing strategy for the 489 encompasses three channels: new-old-stock (NOS) units from original production runs, factory-reconditioned units returned through authorized service programs, and component-level repaired units tested to original GE Multilin factory acceptance criteria. For operators managing fleets of 489-equipped generators, DriveKNMS offers bulk inventory reservation agreements that guarantee unit availability against scheduled maintenance windows and unplanned failures. Requests for specific firmware versions (required for compatibility with existing EnerVista configuration files) are accommodated where stock permits. All units are supplied with full traceability documentation including serial number, firmware revision, and test date.

Quality Control for the 489 Range

The GE Multilin 489 presents specific test challenges due to its integrated protection architecture and analog input signal chain. DriveKNMS applies a structured acceptance test procedure to all 489 units prior to dispatch, covering the following functional domains. CT input accuracy is verified across the full measurement range (0.05–20× CT rating) using a calibrated current injection test set, with results compared against GE Multilin factory tolerance specifications (±0.5% at rated current). VT input channels are tested at both low-range and high-range configurations as applicable to the unit variant. All protection elements—overcurrent (51/51N), differential (87G), reverse power (32), undervoltage (27), overvoltage (59), loss-of-field (40), and synchronism check (25)—are individually exercised using a relay test set programmed with the element pickup and time-delay settings specified in GE Multilin application note AN-489. Output relay contacts are tested for continuity, isolation resistance (>100 MΩ at 500 VDC), and rated breaking capacity. The RS-485 communication port is verified for correct Modbus RTU register mapping using a protocol analyzer, and DNP3.0 data object responses are validated against the 489 DNP3 device profile document. Power supply modules are load-tested at 100% rated output current for a minimum of 30 minutes with input voltage varied across the full specified range. Units exhibiting any out-of-tolerance condition are quarantined for component-level repair before re-test. Final test records are retained and supplied with each unit on request.
