HIMA F8000 Series Modules: F8641 CPU,

Technical Dossier

Product Details And Specifications

HIMA F8000 Series: Comprehensive Module Range and Technical Overview

The HIMA F8000 series represents one of the most widely deployed safety-rated programmable controller platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, and refinery process units, the F8000 architecture is certified to IEC 61508 SIL 3 and operates as the backbone of Safety Instrumented Systems (SIS) where failure is not an option. Its modular backplane design allows integration of CPU, I/O, power supply, and communication modules within a single rack, supporting both simplex and redundant (1oo2D) configurations. The platform's deterministic scan cycle and hardware-based fault detection make it a reference standard for functional safety engineering in EPC projects worldwide.

The Evolution of F8000 Architecture

The F8000 series was introduced by HIMA Paul Hildebrandt GmbH as a successor to earlier relay-based and first-generation PES (Programmable Electronic System) safety controllers. The architecture evolved through three distinct phases. In its initial deployment phase (late 1990s–early 2000s), the F8000 established its modular rack topology with dedicated CPU and I/O separation, enabling hot-standby redundancy without process interruption. The mid-cycle evolution introduced enhanced communication adapters supporting PROFIBUS-DP and Modbus RTU, allowing the F8000 to interface with DCS platforms from Honeywell, Emerson, and ABB without gateway hardware. The mature phase introduced the HIMatrix and HIMax platforms as forward-compatible successors, but the F8000 remains in active service at thousands of installed sites due to its proven reliability record and the prohibitive cost of full SIS replacement. Compatibility between F8000 I/O modules and the backplane bus is version-sensitive; mixing firmware generations without HIMA-certified validation is a known source of diagnostic faults. Engineers maintaining legacy F8000 installations must account for EPROM version alignment between CPU and I/O modules.

F8000 Full Catalog & Functionalities (SKU List)

CPU & Central Processing Modules

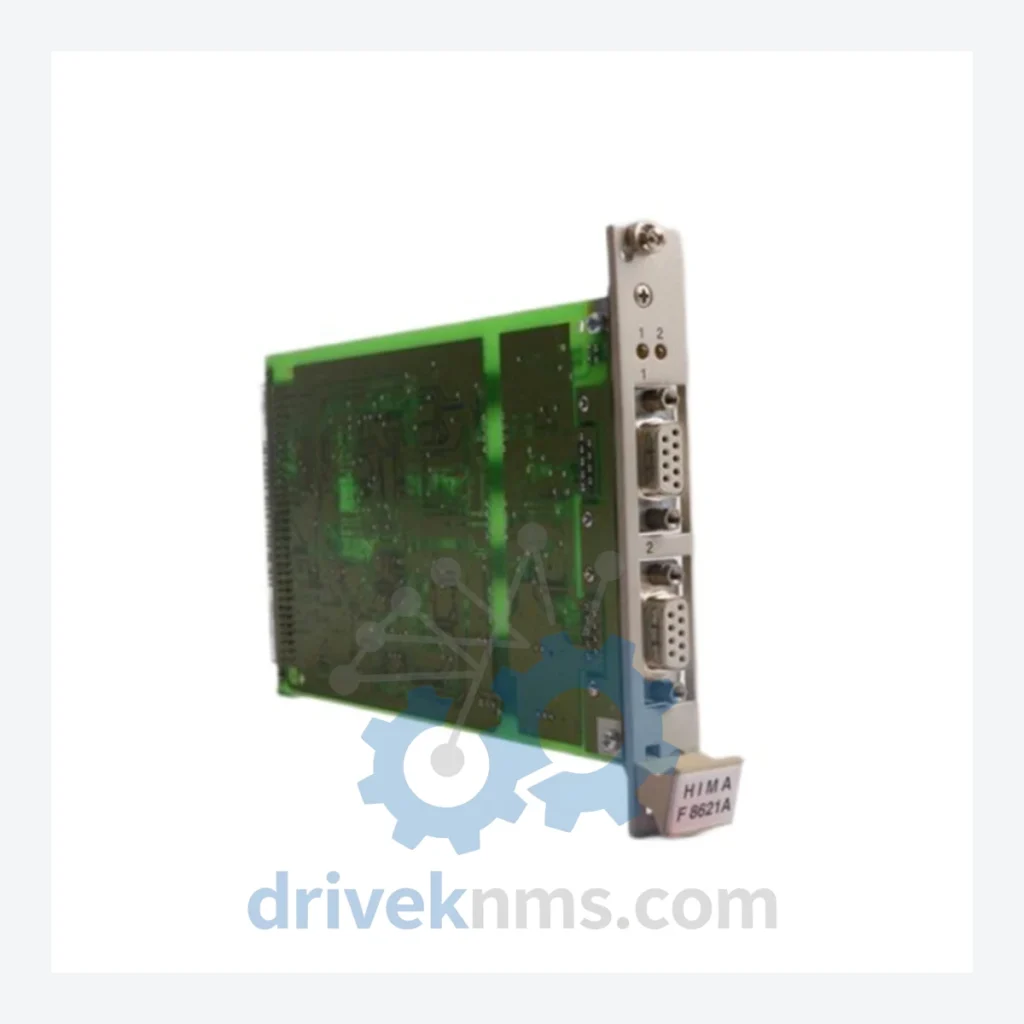

• F8641: Central processing unit for F8000 safety controller, SIL 3 rated, 1oo2D architecture support
• F8621: CPU module, simplex configuration, standard scan cycle, F8000 rack compatible
• F8627: High-speed CPU module with extended memory for large I/O point counts
• F8628: Redundant CPU module, hot-standby capable, bumpless switchover on fault detection

Digital Input (DI) Modules

• F3236: 16-channel 24 VDC digital input module, SIL 2 rated, field-side diagnostics
• F3330: 32-channel digital input, 24 VDC, high-density I/O for large process units
• F3237: 16-channel DI module with line fault detection per channel
• F3238: 8-channel digital input, 120 VAC rated, suitable for legacy field wiring

Digital Output (DO) Modules

• F3416: 16-channel 24 VDC digital output, solid-state, short-circuit protected
• F3422: 8-channel relay output module, 230 VAC rated, for high-voltage actuator interfaces
• F3430: 16-channel DO module with per-channel diagnostics and readback verification

Analog Input (AI) Modules

• F3236AI: 8-channel 4–20 mA analog input, HART pass-through capable, SIL 2
• F3221: 4-channel analog input module, ±10 V / 4–20 mA configurable, 12-bit resolution
• F3222: 8-channel AI with internal reference channel for drift compensation

Communication & Network Adapter Modules

• F8652: PROFIBUS-DP master/slave communication module for F8000 rack
• F8627COM: Modbus RTU/TCP gateway module, dual-port Ethernet, DCS integration
• F8631: Safeethernet module for peer-to-peer F8000 controller communication

Power Supply Modules

• F8061: 24 VDC rack power supply module, redundant-capable, 10 A output
• F8062: Dual-redundant power supply module with automatic failover, status relay output

Sourcing Hard-to-Find & Obsolete F8000 Parts

HIMA has transitioned its primary development focus to the HIMatrix and HIMax platforms. As a result, several F8000 modules — including the F8641, F8621, and F3236 — are classified as mature or end-of-active-production by the OEM. Standard distribution channels no longer carry buffer stock for these part numbers. DriveKNMS maintains a dedicated inventory of tested F8000 modules sourced from decommissioned systems, controlled factory overstock, and verified third-party refurbishment pipelines. Each unit is cataloged by firmware revision and hardware revision code to ensure compatibility matching before shipment. For operators running F8000-based SIS under long-term service agreements, DriveKNMS provides multi-year supply commitments with documented traceability records suitable for functional safety audits. Requests for obsolete or low-availability F8000 part numbers are processed within one business day.

Quality Control for the F8000 Range

The F8000 backplane uses a proprietary parallel bus architecture that requires module-level electrical validation before installation in a live safety system. DriveKNMS applies a structured test protocol to all F8000 modules prior to dispatch. CPU modules such as the F8641 undergo power-on self-test (POST) verification, EPROM integrity check, and communication bus loopback testing using HIMA-compatible rack fixtures. I/O modules are tested under simulated field load conditions: DI modules are verified for threshold voltage accuracy and channel isolation; DO modules are tested for switching response time and short-circuit protection activation; AI modules are calibrated against a traceable reference standard with full-range linearity verification. Communication modules are validated for protocol handshake integrity on both PROFIBUS and Ethernet interfaces. All test results are documented and shipped with each unit as a test certificate. Modules that fail any parameter are quarantined and not released for sale.
