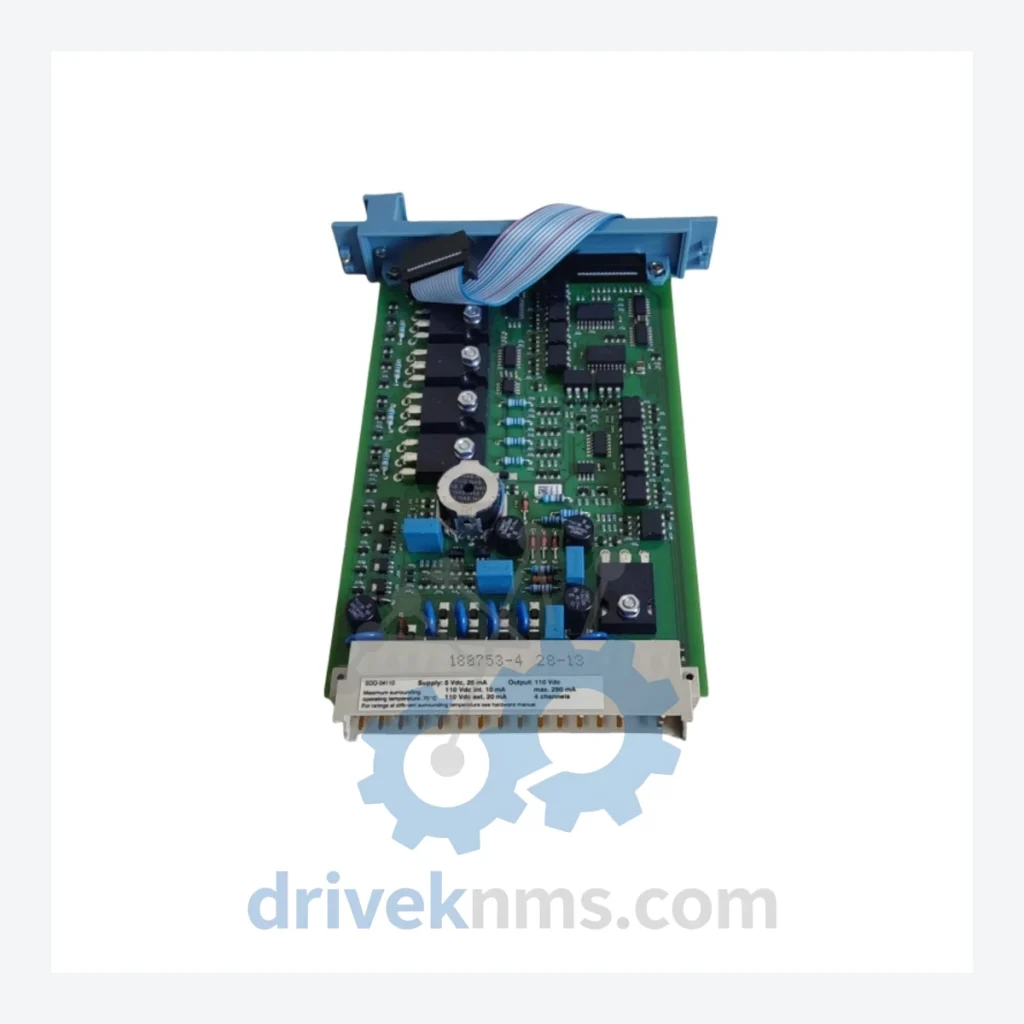

Honeywell FSC Modules 10102/2/1 10006/2/1 10106/2/1 – Diagnostic & Battery Module

Technical Dossier

Product Details And Specifications

Honeywell FSC Series Technical Notes

The Evolution of FSC Architecture

The Honeywell FSC platform was introduced in the late 1980s as a dedicated hardware-based safety controller, predating the widespread adoption of software-configurable SIS platforms. Early FSC generations used fixed-function logic modules with hardwired relay-based I/O, operating on a proprietary backplane bus. The architecture evolved through several hardware revisions:

Generation 1 (FSC Classic): Fixed-function modules, relay output boards, and discrete wiring. No fieldbus integration. Designed for standalone ESD applications.

Generation 2 (FSC Enhanced): Introduction of the 10002/2/1 CPU module family, expanded I/O density, and support for redundant processor configurations. Diagnostic coverage improved to meet IEC 61508 SIL 2 requirements.

Modern Transition: Honeywell has positioned the Safety Manager (SM) and Safety Manager SC as the forward migration path from FSC. However, the FSC platform remains supported under Honeywell's Extended Lifecycle Program, and direct hardware replacement is the standard maintenance strategy for installed FSC systems due to the cost and complexity of full SIS migration projects.

FSC Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced components within the Honeywell FSC platform. Each entry reflects the module's primary functional role within the FSC chassis and backplane architecture.

10102/2/1: Diagnostic module; monitors FSC system health, self-test status, and fault annunciation across the safety controller chassis.

10006/2/1: Battery backup module; provides uninterruptible power continuity to FSC CPU and memory during mains supply interruption.

10106/2/1: Enhanced diagnostic and status module; extends fault detection coverage for redundant FSC processor configurations.

10002/2/1: Central processing unit (CPU) module; executes FSC safety logic programs and manages I/O bus communication.

10001/2/1: Redundant CPU module; paired with 10002/2/1 for hot-standby processor redundancy in SIL 3 applications.

10005/2/1: Power supply module; provides regulated DC power to FSC backplane and installed I/O modules.

10201/2/1: Digital input (DI) module; 24 VDC discrete input, 16-channel, used for field device status monitoring in ESD loops.

10202/2/1: Digital output (DO) module; 24 VDC discrete output, 16-channel, drives solenoid valves and relay coils in shutdown circuits.

10204/2/1: Analog input (AI) module; 4–20 mA, 8-channel, for pressure transmitter and flow meter integration in safety loops.

10205/2/1: Analog output (AO) module; 4–20 mA, 4-channel, for positioner and control valve feedback in FSC-managed loops.

10301/2/1: Communication interface module; supports Modbus RTU serial communication to DCS historian and operator interface systems.

10302/2/1: Ethernet gateway module; provides Modbus TCP/IP connectivity for FSC integration with Experion PKS and third-party SCADA systems.

10401/2/1: Backplane bus terminator module; required at the end of each FSC chassis expansion segment to maintain signal integrity.

10501/2/1: I/O expansion chassis interface module; connects additional I/O racks to the primary FSC processor chassis via the FSC bus.

10601/2/1: Watchdog and system reset module; provides hardware-level watchdog timer function and manual system reset capability for FSC maintenance operations.

10701/2/1: Relay output module; 8-channel, volt-free contacts rated for 250 VAC/5A, used in high-current ESD actuator circuits.

10801/2/1: HART multiplexer interface module; enables HART device diagnostics from field instruments connected to FSC analog input channels.

Quality Control for the FSC Range

FSC modules present specific quality verification challenges due to their safety-critical function and the complexity of their internal backplane communication logic. DriveKNMS applies the following test procedures to all FSC modules prior to dispatch:

Visual and Physical Inspection: Each module is inspected for PCB corrosion, capacitor condition, connector pin integrity, and housing damage. Modules with evidence of thermal stress or moisture ingress are rejected at intake.

Power-On Self-Test (POST) Verification: Modules are powered in an FSC test chassis to confirm that the onboard POST sequence completes without fault codes. For diagnostic modules (10102/2/1, 10106/2/1), the self-test output is logged and compared against known-good reference data.

Battery Module Load Test: The 10006/2/1 battery module is subjected to a timed discharge test under rated load to verify residual battery capacity. Modules with battery capacity below 80% of rated specification are reconditioned or battery-replaced before dispatch.

Backplane Communication Test: I/O modules are installed in a live FSC chassis and exercised through a full channel scan to verify bus communication integrity and channel-level response.

Firmware Revision Verification: Module firmware versions are recorded and disclosed to the customer prior to shipment to confirm compatibility with the target FSC system software version.
