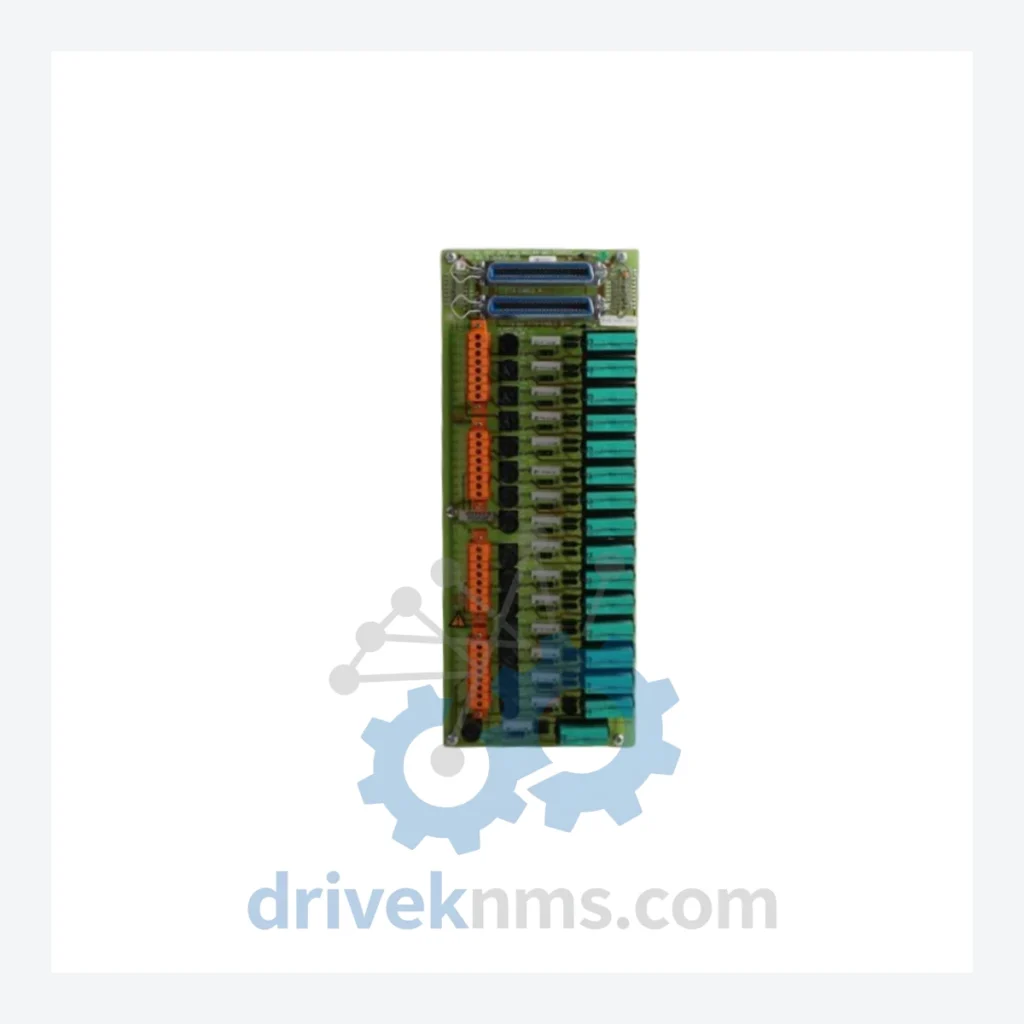

Honeywell 51304516-200 Interface Processor – Obsolete TDC 3000 Spare Part

Technical Dossier

Product Details And Specifications

Honeywell 51304516-200 Interface Processor – Obsolete TDC 3000 Spare Part

DriveKNMS reviews sourcing options for this model during RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications are based on publicly available legacy documentation. Do not rely on unconfirmed data for safety-critical applications — contact us for datasheet support.

Solving the Discontinued Hardware Crisis

The Honeywell TDC 3000 platform entered service in the 1980s and remained the backbone of process control in petroleum refining, chemical manufacturing, and power generation for decades. Honeywell officially discontinued hardware support for the TDC 3000 series, yet thousands of these systems remain operational globally — because the cost of replacing them is prohibitive and the operational risk of a cutover is unacceptable during peak production cycles.

The 51304516-200 Interface Processor sits at the communication boundary between field I/O and the supervisory network. Its failure does not degrade performance gradually; it causes an abrupt loss of process visibility or control for the connected loop group. There is no software patch, no firmware workaround, and no modern substitute that installs without engineering intervention. The only solution is a like-for-like hardware replacement.

Plant managers facing end-of-life pressure from corporate asset teams have a documented, low-cost alternative to full system replacement: a structured spare parts reserve strategy. Maintaining two to three verified spare modules for each critical card type in the TDC 3000 cabinet extends the operational life of the entire system by five to ten years at a fraction of the capital expenditure required for migration. This approach has been validated across facilities in the Middle East, Southeast Asia, and Europe where TDC 3000 systems continue to operate reliably under a disciplined maintenance regime.

Condition & Reliability Assurance

Every 51304516-200 unit supplied by DriveKNMS passes a five-stage inspection protocol before it is offered for sale:

• Visual and mechanical inspection: Board surface, connector pins, and housing are examined for physical damage, corrosion, and pin deformation. Units with oxidized or bent pins are rejected at this stage.
• Electrolytic capacitor assessment: Aging electrolytic capacitors are the primary failure mode in legacy industrial boards stored for extended periods. Each unit is assessed for capacitor bulging, leakage, and ESR deviation. Units with suspect capacitors are either reconditioned or removed from inventory.
• Firmware and label verification: The hardware revision and firmware label are cross-referenced against known compatible revision levels for the TDC 3000 / TPS platform to confirm drop-in compatibility.
• Functional bench test: Where test fixtures are available, units undergo powered functional verification prior to packaging.
• Packaging and ESD protection: Units are packaged in anti-static bags with foam cushioning and labeled with inspection date and technician ID for full traceability.

Key Features for System Maintenance

• Drop-in replacement: The 51304516-200 installs directly into the existing TDC 3000 / TPS card slot with no hardware modification required.
• No reprogramming required: Configuration data resides in the system database, not the module. Replacement does not require re-engineering of control logic or loop parameters.
• Avoids engineering reconstruction costs: A like-for-like swap eliminates the need for I/O mapping, loop checkout, and operator requalification that a platform migration would demand.
• Immediate operational restoration: Facilities with a spare unit on-site can restore affected loops within hours of a failure event, compared to weeks or months if sourcing begins after the failure.
• Supports long-term asset protection strategy: Holding verified spares for critical modules is the most cost-effective method of extending the productive life of a TDC 3000 installation by five to ten years beyond the OEM support window.

How do I confirm the unit is new surplus or quality-refurbished — not a field-pull in unknown condition?
Each unit is accompanied by an inspection report detailing condition grade, test results, and technician sign-off. We do not ship units that have not passed our five-stage QA process. Condition grade is disclosed in full before order confirmation.
