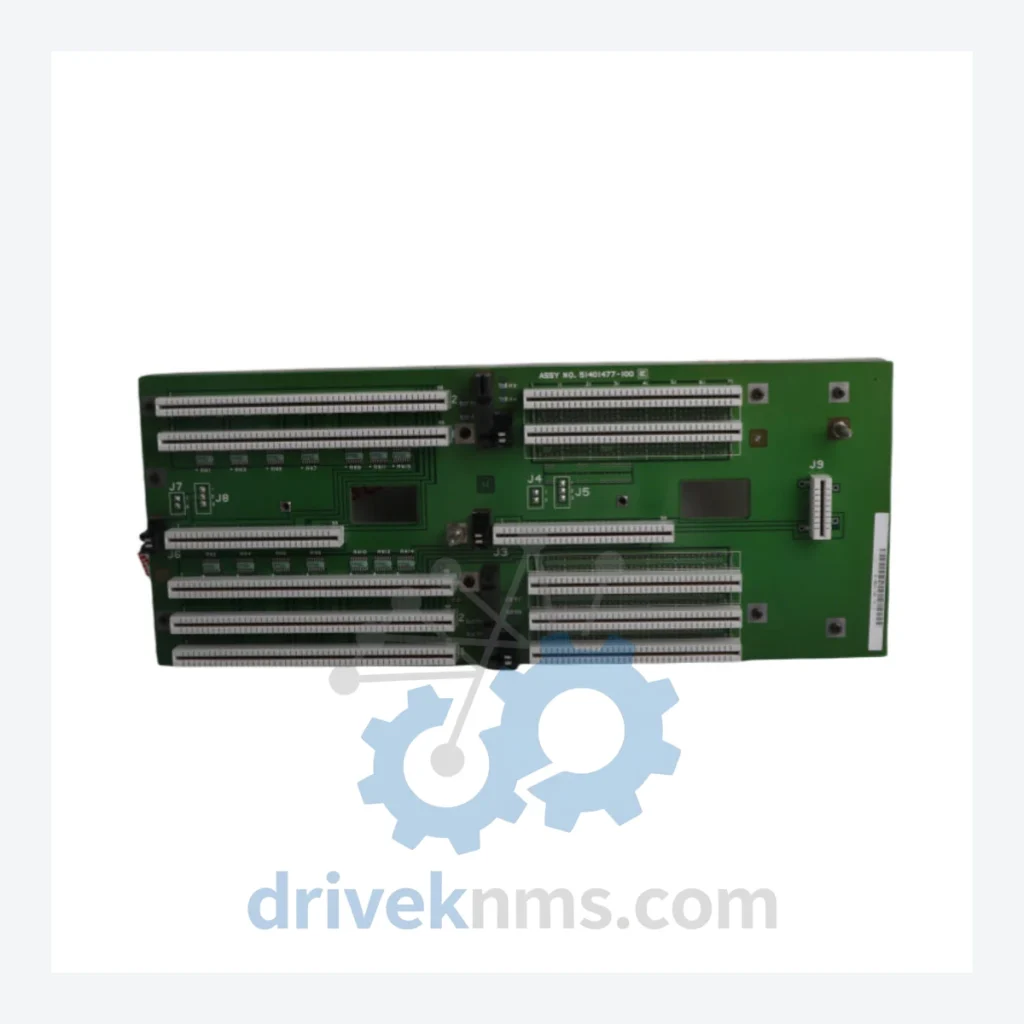

Honeywell 51401477-100 Classic Backpanel – Obsolete TDC3000 Spare Part

When a backpanel fails inside a Honeywell TDC 3000 or legacy Experion PKS cabinet, the consequences extend far beyond a single module replacement. The Classic Backpanel — part numbers 51401477-100, MP-DNCF02-201, and 51402455-100 — serves as the physical and electrical backbone for an entire controller node. Without it, the node goes dark. In facilities where a single process line represents tens of millions of dollars in capital equipment, the cost of an unplanned DCS migration triggered by one unavailable backpanel can reach seven figures before engineering, commissioning, and lost production are factored in. DriveKNMS maintains RFQ-reviewed sourcing status of this discontinued assembly specifically to prevent that outcome.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters specific to individual installation configurations are not published here. Contact our technical team for application-specific verification before ordering.

Solving the Discontinued Hardware Crisis

The 51401477-100 backpanel is the structural core of the Classic Controller node. It carries the card cage, backplane interconnects, and power distribution for the controller assembly. When this component fails and no replacement exists in the facility's spare parts inventory, the affected node cannot be restored to service with any in-kind repair. The only alternatives are a full node replacement — if compatible hardware can still be located — or an accelerated migration to a modern DCS platform on an emergency timeline, at emergency cost.

How to Extend Automation Asset Life by 5–10 Years Through Critical Spare Parts

For plant managers and reliability engineers facing pressure to retire legacy DCS infrastructure before the business case for migration is financially sound, a structured spare parts strategy is the most cost-effective deferral mechanism available. The following approach has been applied successfully across TDC 3000 and comparable legacy platforms:

1. Failure Mode Mapping: Identify the five to ten components in your DCS architecture whose failure would force an unplanned outage or trigger an emergency migration. Backpanels, power supplies, and communication cards consistently appear on this list for TDC 3000 installations. These are the components that warrant pre-positioned inventory.

4. Documented Replacement Procedures: Ensure your maintenance team has current, site-specific procedures for backpanel replacement before the failure event occurs. Emergency troubleshooting under production pressure is not the time to develop this documentation.

5. Scheduled Reassessment: Review your critical spare inventory annually against the current operational status of each DCS node. As nodes are decommissioned through phased migration, reallocate spares to nodes with the longest remaining planned service life.

A disciplined approach to these five areas routinely extends the viable service life of a TDC 3000 installation by five to ten years beyond what would otherwise be achievable — at a fraction of the cost of an accelerated migration.

Condition & Reliability Assurance

Every 51401477-100 backpanel that leaves our facility has passed a five-stage inspection protocol developed specifically for discontinued DCS hardware:

Step 1 – Visual and Mechanical Inspection: Full examination of the card cage structure, backplane connector pins, and mounting hardware. Any evidence of physical damage, corrosion, or prior field repair is documented and evaluated against acceptance criteria.

Step 2 – Electrolytic Capacitor Assessment: Capacitor aging is the primary long-term failure mode for assemblies of this generation. We assess capacitor condition and flag assemblies where capacitor replacement is recommended prior to installation.

Step 4 – Firmware and Revision Verification: Where applicable, hardware revision markings are verified and documented. Customers receive full revision information to confirm compatibility with their specific controller configuration before dispatch review.

Step 5 – Functional Verification and Packaging: Assemblies are verified for electrical continuity across backplane signal paths. Units are then packaged in anti-static materials with desiccant for long-term storage integrity.

Key Features for System Maintenance

Drop-in Replacement: The 51401477-100 is a direct physical and electrical replacement for the original factory-installed backpanel in compatible TDC 3000 Classic Controller cabinets. No mechanical modification to the cabinet is required.

No Reprogramming Required: Controller configuration, loop tuning parameters, and application software reside in the controller modules, not in the backpanel. Replacing the backpanel does not require re-engineering of any control logic or operator interface configuration.

Avoids Engineering Reconstruction Costs: A forced migration from TDC 3000 to a modern DCS platform requires complete loop re-engineering, I/O mapping, graphics rebuilding, and factory acceptance testing. Sourcing a verified spare backpanel eliminates this cost entirely for the affected node.

Q: Should we buy more than one unit as a long-term reserve?
A: For any TDC 3000 installation with more than two years of planned remaining service life, holding at least one additional backpanel in site inventory is a defensible risk management position. Secondary market availability for this part number is declining. Units available today may not be available at the time of the next failure event.

Q: Can you source other TDC 3000 components if we need a broader spare parts package?
A: Yes. DriveKNMS specializes in legacy DCS and industrial automation spare parts across multiple platforms. Contact us with your full bill of materials and we will advise on availability.
