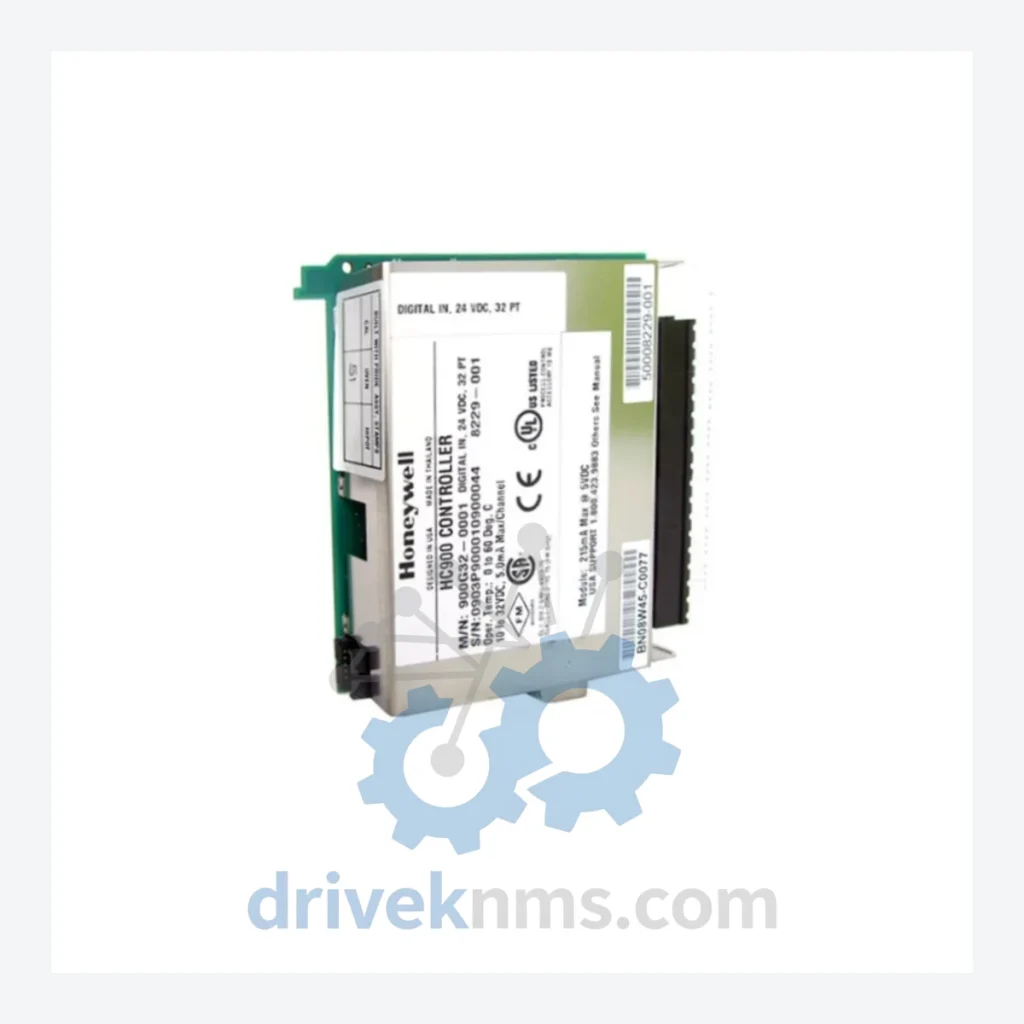

Honeywell HC900 ControlEdge Modules: 900B16-0202

Technical Dossier

Product Details And Specifications

Honeywell HC900 ControlEdge Series Technical Notes

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

The Evolution of HC900 Architecture

The HC900 platform was introduced by Honeywell as a mid-range hybrid controller bridging the gap between standalone PLCs and full DCS installations. Early generations used the C30, C50, and C70 CPU modules with a proprietary backplane bus operating at fixed scan rates. The architecture evolved through several hardware revisions:

Generation 1 (Legacy): C30/C50 CPUs with 900-series I/O racks, limited to local rack I/O expansion via the HC900 rack bus. Ethernet connectivity was optional and limited to supervisory SCADA integration.

Generation 2 (ControlEdge Transition): Introduction of the C75 CPU and expanded remote I/O capability via the HC900 Remote I/O Scanner. This generation introduced dual-port Ethernet and improved function block execution capacity.

Generation 3 (ControlEdge HC900): Full rebranding to ControlEdge HC900. Enhanced cybersecurity features, expanded memory, and compatibility with Experion PKS integration. The 900B-series I/O modules (including the 900B16-0202) were introduced or revised in this generation to support higher channel density and improved signal conditioning.

Compatibility note: 900-series I/O modules are generally backward-compatible across CPU generations at the rack level, but firmware versions must be validated when mixing legacy and ControlEdge-generation CPUs in the same system. Customers migrating from C30/C50 to C75 CPUs must verify I/O module firmware revision compatibility via Honeywell's compatibility matrix.

HC900 Full Catalog & Functionalities (SKU List)

Analog Output Modules

• 900B16-0202: 16-channel analog output module, 4–20 mA, isolated, ControlEdge HC900 rack-mount
• 900B08-0202: 8-channel analog output module, 4–20 mA, isolated outputs, standard rack
• 900B08-0102: 8-channel analog output, 0–20 mA range, non-isolated, legacy HC900

Analog Input Modules

• 900G32-0101: 32-channel analog input module, 4–20 mA / 0–10 V, high-density rack I/O
• 900G16-0101: 16-channel analog input, universal signal type, thermocouple/RTD/mA/V
• 900G08-0101: 8-channel analog input, universal input, isolated per channel
• 900G08-0201: 8-channel analog input, high-speed sampling, process industry variant

Digital Input Modules

• 900H32-0001: 32-channel digital input, 24 VDC, sink/source configurable
• 900H16-0001: 16-channel digital input, 24 VDC, standard rack mount
• 900H16-0101: 16-channel digital input, 120 VAC, isolated, field-wiring terminal base

Digital Output Modules

• 900K32-0001: 32-channel digital output, 24 VDC, transistor (sourcing)
• 900K16-0001: 16-channel digital output, 24 VDC, transistor (sinking)
• 900K16-0101: 16-channel digital output, relay contact, 2A per channel

CPU / Controller Modules

• 900C71-0243-00: HC900 C75 CPU module, dual Ethernet, 512K function block capacity
• 900C52-0143-00: HC900 C50 CPU module, single Ethernet, legacy generation
• 900C32-0143-00: HC900 C30 CPU module, entry-level controller, limited I/O scan

Communication & Scanner Modules

• 900RIO-0001: Remote I/O Scanner module, extends HC900 rack bus to remote chassis
• 900CS-0001: Communication Scanner, Modbus RTU/TCP gateway for HC900 network

Power Supply Modules

• 900P01-0001: HC900 rack power supply, 24 VDC input, standard chassis
• 900P02-0001: HC900 redundant power supply module, hot-swap capable

Sourcing Hard-to-Find & Obsolete HC900 Parts

The HC900 platform spans multiple product generations, and several early-generation modules — including C30/C50 CPUs and first-generation 900G/900H I/O modules — have reached end-of-sale status with Honeywell. DriveKNMS maintains a dedicated inventory of tested surplus and refurbished HC900 modules to support plants operating legacy configurations where a full DCS migration is not operationally or economically viable.

Quality Control for the HC900 Range

HC900 modules use a proprietary backplane bus protocol for rack communication. Standard bench testing is insufficient to validate module health — functional testing must replicate live rack conditions. DriveKNMS applies the following test protocol to all HC900 modules processed through its facility:

• Rack-level power-on test using a reference HC900 chassis with a known-good C75 CPU
• Backplane bus communication verification: module enumeration, address assignment, and cyclic data exchange confirmed via HC900 configuration software
• Channel-level signal injection for analog I/O modules: each channel tested at 4 mA, 12 mA, and 20 mA reference points; deviation logged against factory specification
• Digital I/O modules tested for contact integrity, leakage current, and response time
• Firmware revision read-back and documentation prior to shipment
• 48-hour burn-in soak for CPU and scanner modules

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.
