Honeywell C300 CC-TDI220 51308394-275 Module

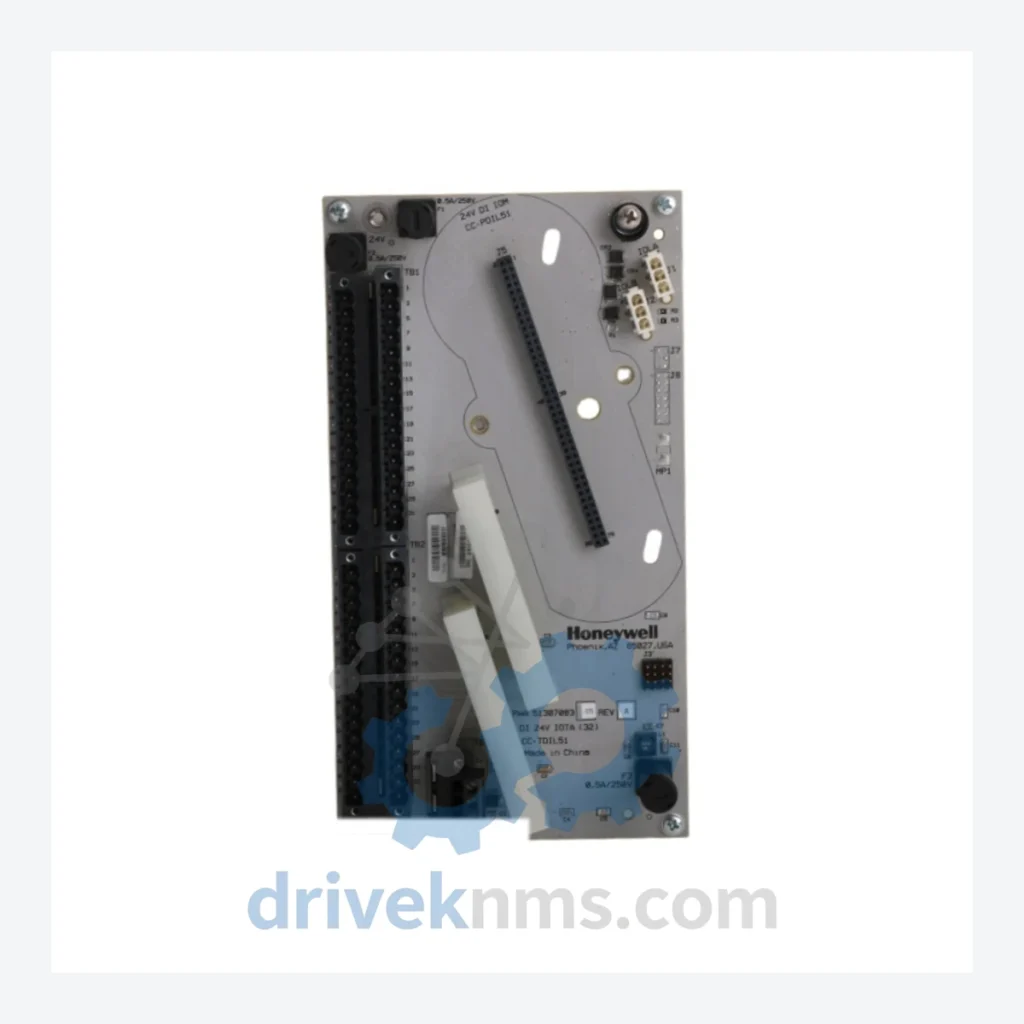

Name: Honeywell C300 CC-TDI220 51308394-275 Module
Brand: Honeywell

Model: CC-TDI220 51308394-275

Brand Honeywell

Series C300

Model CC-TDI220 51308394-275

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Honeywell C300 Series Technical Notes

The Evolution of C300 Architecture

The C300 was introduced as part of Honeywell's Experion PKS platform in the early 2000s, succeeding the TDC 3000 and PlantScape systems. Early C300 deployments used Series A I/O modules with CIOM-A (C300 I/O Module) backplane communication. Subsequent hardware revisions introduced Series B and Series C modules with enhanced diagnostics, expanded channel density, and improved EMI tolerance.

The C300 communicates with field I/O via CHARM (Characterization Module) technology in newer Experion deployments, but legacy CIOM-based I/O remains the dominant installed architecture in brownfield sites. Compatibility between Series A and Series B modules requires firmware alignment and backplane revision verification. The C300 controller itself (CC-PCF901) operates on a dual-redundant pair configuration, with each controller node supporting up to 40 CIOM-A I/O links. Migration paths from TDC 3000 HPM modules to C300 I/O are documented under Honeywell's Universal I/O (UIO) migration framework. As of 2024, the C300 platform is in its mature/sustained phase — Honeywell continues to supply spare parts and firmware updates, but new feature development is concentrated on the Experion PKS Highly Integrated Virtual Environment (HIVE) architecture.

C300 Full Catalog & Functionalities (SKU List)

Digital Input Modules

CC-TDI220 (51308394-275): 24 VDC digital input module, 32-channel, CIOM-A backplane, Series C
CC-TDIL01 (51304362-175): 24 VDC digital input module, 32-channel, isolated, Series B
CC-TDI110 (51308394-150): 120 VAC digital input module, 16-channel, CIOM-A

Digital Output Modules

CC-TDO220 (51308395-275): 24 VDC digital output module, 32-channel, CIOM-A, Series C
CC-TDOL01 (51304363-175): 24 VDC digital output module, 32-channel, isolated, Series B
CC-TDO110 (51308395-150): 120 VAC digital output module, 16-channel, relay contact

Analog Input Modules

CC-PAIH01 (51304453-175): 4–20 mA analog input module, 8-channel, HART-enabled, Series B
CC-PAIH02 (51304453-275): 4–20 mA analog input module, 16-channel, HART-enabled, Series C
CC-PAIN01 (51304452-175): 4–20 mA analog input module, 8-channel, non-HART
CC-TAIX11 (51308390-175): Thermocouple/RTD analog input module, 8-channel, isolated

Analog Output Modules

CC-PAOH01 (51304455-175): 4–20 mA analog output module, 8-channel, HART-enabled
CC-PAON01 (51304454-175): 4–20 mA analog output module, 8-channel, non-HART

Controller & Communication Modules

CC-PCF901 (51309512-175): C300 process controller module, primary/redundant pair, FTE-connected
CC-TCF901 (51309512-275): C300 controller module, Series C revision, enhanced diagnostics
CC-PCNT01 (51304516-175): Pulse/frequency counter input module, 4-channel
CC-SCMB01 (51304516-275): Serial communication module, RS-232/RS-485, Modbus RTU support
CC-LINK01 (51309288-175): FTE (Fault Tolerant Ethernet) link module, dual-port, redundant

Power Supply Modules

CC-PWR001 (51304516-100): 24 VDC CIOM-A backplane power supply, 5A rated
CC-PWR002 (51304516-200): Redundant power supply module for CIOM-A chassis

Quality Control for the C300 Range

C300 modules received by DriveKNMS undergo a structured inspection and functional verification process prior to dispatch. Each module is visually inspected for backplane connector integrity, capacitor condition, and PCB contamination. CIOM-A communication modules are bench-tested using a dedicated Experion PKS test rack to verify FTE link establishment, I/O channel response, and diagnostic register output. Analog input modules (HART-enabled variants) are calibrated against a reference signal source across the full 4–20 mA range. Digital I/O modules are cycled through all 32 channels under load to confirm switching integrity. Modules that fail any test stage are quarantined and not returned to inventory. All tested units ship with a DriveKNMS inspection record documenting test date, technician ID, and pass criteria.

Continue The Model Path

Use system, brand and series routes to compare related published models.

Move from this exact model into the matching system hub, brand archive, model-family archive or lifecycle sourcing route before sending a final RFQ list.
