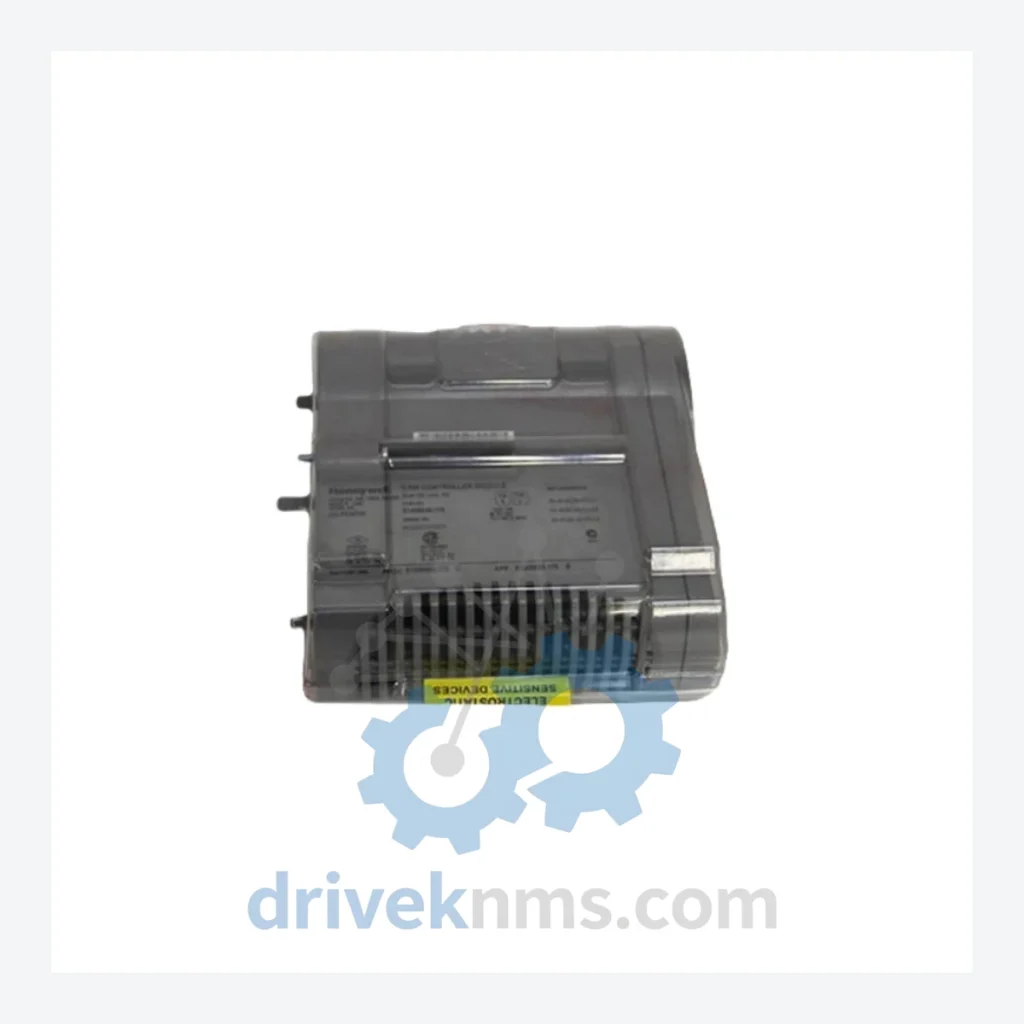

Honeywell TDC 3000 FC Series Modules: FC-TDOL-07120 Digital Output

Technical Dossier

Product Details And Specifications

Honeywell TDC 3000 FC Series Technical Notes

The Honeywell TDC 3000 File Controller (FC) series represents one of the most widely deployed Distributed Control System (DCS) platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, crude oil refineries, pulp and paper mills, and large-scale chemical processing facilities, the FC series formed the backbone of process automation from the 1980s through the 2000s. Its modular backplane architecture, deterministic scan cycle, and robust field wiring termination design made it the reference standard for continuous process control in hazardous environments. Facilities operating under IEC 61511 functional safety requirements frequently retain FC-series hardware as the primary control layer due to the prohibitive cost and operational risk of full DCS migration. The FC-TDOL-07120 is a digital output module within this platform, providing discrete switching capability for field actuators, solenoid valves, motor starters, and alarm annunciators.

The Evolution of TDC 3000 FC Series Architecture

The TDC 3000 platform was introduced by Honeywell in 1980 as a successor to the TDC 2000, transitioning from a centralized controller model to a fully distributed node-based architecture. The File Controller (FC) node served as the primary process controller, communicating over the Local Control Network (LCN) and the Universal Control Network (UCN). Early FC hardware used proprietary backplane buses with fixed slot assignments; later revisions introduced the Enhanced File Controller (EFC) and the High-Performance Process Manager (HPM), which maintained backward compatibility with FC I/O termination assemblies while increasing scan rates and memory capacity.

Key architectural generations include: the original FC (1980–1988) with 16-bit processor and fixed I/O maps; the FC-X (1988–1995) with expanded memory and UCN support; and the transition-era modules (1995–2005) that bridged FC hardware to Experion PKS migration paths. Modules such as the FC-TDOL-07120 were designed for the mid-generation FC platform and remain in active service at sites that have not completed migration to Experion C300 or Safety Manager SC. Compatibility between FC I/O modules and HPM file carriers is a documented constraint: termination assemblies are interchangeable, but controller firmware versions must be validated before substitution.

TDC 3000 FC Series Full Catalog & Functionalities (SKU List)

Digital Output Modules

• FC-TDOL-07120: 16-channel 24 VDC digital output module, isolated, for solenoid and relay switching
• FC-TDOH-07120: 16-channel 120 VAC digital output module, high-voltage field device switching
• FC-TDOB-07120: 8-channel digital output module with blown fuse detection per channel
• FC-TDOD-07120: 16-channel digital output, dry contact relay type, for motor starter interfaces

Digital Input Modules

• FC-TDIL-07120: 16-channel 24 VDC digital input module, isolated, for discrete field signals
• FC-TDIH-07120: 16-channel 120 VAC digital input module, high-voltage field signal acquisition
• FC-TDIB-07120: 8-channel digital input with contact wetting current for dry contact field devices

Analog Output Modules

• FC-TAOX-0002: 2-channel 4–20 mA analog output, loop-powered, for control valve positioners
• FC-TAOX-0004: 4-channel 4–20 mA analog output module with HART pass-through capability
• FC-TAOY-0002: 2-channel voltage output (0–10 V), for variable speed drive setpoint interfaces

Analog Input Modules

• FC-TAIX-0008: 8-channel 4–20 mA analog input, differential, 12-bit resolution
• FC-TAIX-0016: 16-channel analog input multiplexer module, single-ended, for thermocouple and RTD signals
• FC-TAIR-0004: 4-channel RTD input module, supports PT100/PT1000, 3-wire and 4-wire configurations

Controller & Communication Modules

• FC-TSAI-0001: File Controller CPU module, primary process controller node for LCN/UCN networks
• FC-PSHX-0100: Redundant power supply module, 24 VDC output, hot-swap capable within FC file carrier
• FC-LCNM-0001: Local Control Network interface module, coaxial LCN bus termination and arbitration
• FC-UCNM-0001: Universal Control Network interface module, UCN token-passing bus adapter
• FC-SDPM-0001: Sequence of Events (SOE) data processing module, 1 ms timestamp resolution
