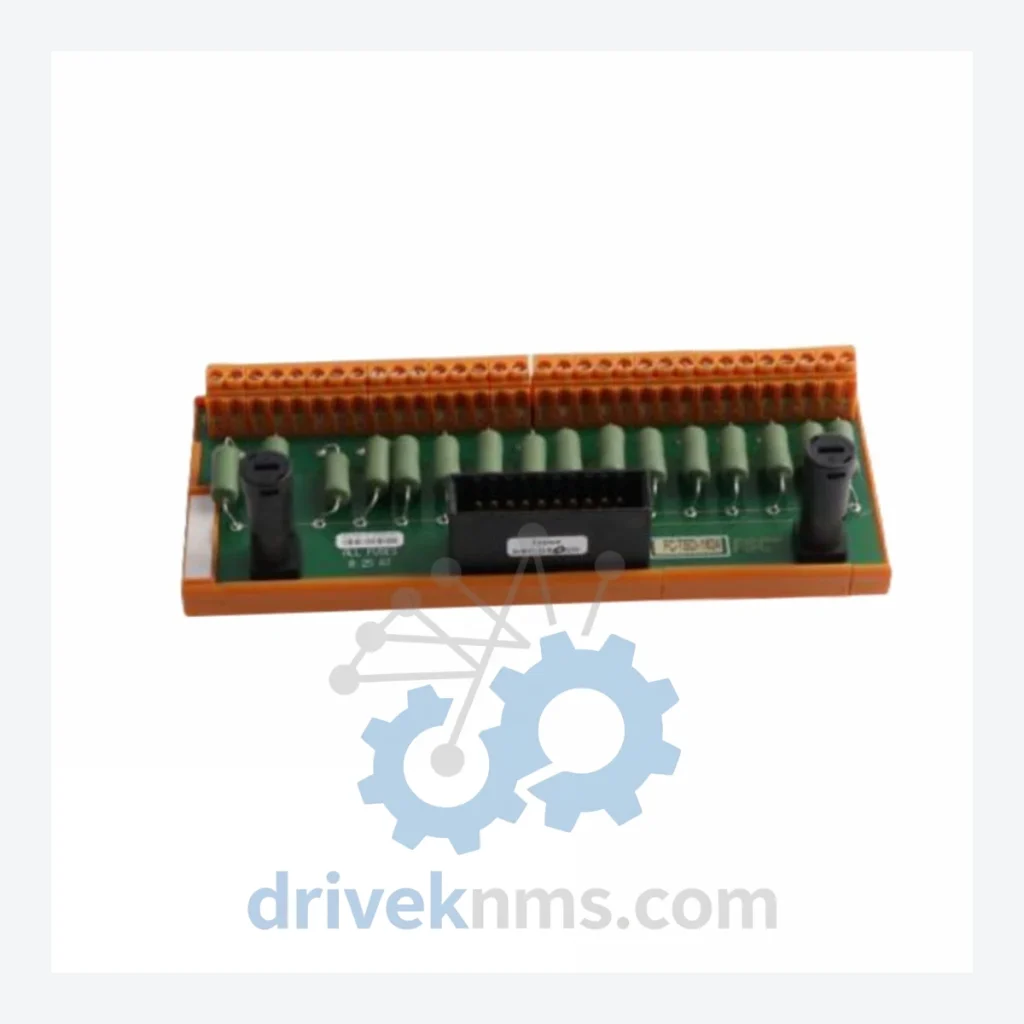

Honeywell Safety Manager FC-TSDI-16115 Modules

Technical Dossier

Product Details And Specifications

Honeywell Safety Manager FC-TS Series Technical Notes

The Honeywell Safety Manager (SM) FC-TS series represents one of the most widely deployed safety instrumented system (SIS) platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, LNG terminals, offshore platforms, and refinery process units, the Safety Manager architecture is certified to IEC 61508 SIL 3 and is recognized by major engineering contractors (EPC) as a primary safety logic solver. Its field termination assembly (FTA) modules — including the FC-TSDI-16115 — serve as the physical interface layer between field instruments and the safety logic solver backplane, handling signal conditioning, galvanic isolation, and channel-level diagnostics. The FC-TS FTA range supports both simplex and redundant (1oo2D, 2oo3) voting architectures, making it a standard reference in HAZOP-driven SIS designs worldwide.

The Evolution of Safety Manager FC-TS Architecture

Honeywell introduced the Safety Manager platform in the early 2000s as a successor to the FSC (Fail Safe Controller) system, which itself evolved from the Quadlog architecture. The FC-TS FTA series was designed to address the growing demand for IEC 61511-compliant SIS installations with deterministic response times and comprehensive self-diagnostics.

Generation 1 (SM R100–R130): Initial FTA modules used passive termination with limited on-board diagnostics. Compatibility was restricted to the SM Cabinet with dedicated backplane wiring. Modules such as the FC-TSDI-16xx and FC-TSDO-16xx established the 16-channel I/O density standard.

Generation 2 (SM R140–R200): Introduction of active FTA modules with enhanced loop diagnostics, HART pass-through capability on analog modules, and improved EMC shielding. The FC-TSAI and FC-TSAO sub-families were expanded. Backward compatibility with Gen 1 cabinets was maintained for most module types.

Generation 3 / Safety Manager SC (SM SC R210+): Honeywell launched the Safety Manager SC (SC = Safety Controller) as the modern successor, featuring a new controller form factor, Ethernet-based safety network (FSC Net over HSE), and updated FTA modules with integrated marshalling. Legacy FC-TS FTA modules retain functional compatibility in mixed-generation cabinets under specific firmware constraints. As of 2024, the original Safety Manager platform is in a mature/sustaining lifecycle phase; Honeywell continues to supply spare parts and provide lifecycle extension services, but new feature development is concentrated on Safety Manager SC.

Lifecycle Note: The FC-TSDI-16115 and the broader FC-TS FTA range are classified as mature/sustaining products. Honeywell's official position supports long-term maintenance through its Lifecycle Management Program (LMP). Third-party suppliers such as DriveKNMS provide complementary inventory support for obsolete and hard-to-source variants, enabling plant operators to extend system life without full SIS migration.

Safety Manager FC-TS Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Honeywell Safety Manager FC-TS field termination assembly and I/O family. Modules are classified by function.

Safe Digital Input (SDI) — Field Termination Assemblies

FC-TSDI-16115: 16-channel safe digital input FTA, 24 VDC, non-isolated, simplex wiring, standard cabinet mount.
FC-TSDI-16116: 16-channel safe digital input FTA, 24 VDC, non-isolated, redundant module support.
FC-TSDI-16215: 16-channel safe digital input FTA, 120 VAC input rated, simplex configuration.
FC-TSDI-16216: 16-channel safe digital input FTA, 120 VAC, redundant module configuration.
FC-TSDI-16315: 16-channel safe digital input FTA, 230 VAC input rated, simplex wiring.
FC-TSDI-16316: 16-channel safe digital input FTA, 230 VAC, redundant module configuration.

Safe Digital Output (SDO) — Field Termination Assemblies

FC-TSDO-16115: 16-channel safe digital output FTA, 24 VDC sourcing, simplex, standard load switching.
FC-TSDO-16116: 16-channel safe digital output FTA, 24 VDC sourcing, redundant module support.
FC-TSDO-08115: 8-channel safe digital output FTA, 24 VDC, high-current relay output, simplex.
FC-TSDO-08116: 8-channel safe digital output FTA, 24 VDC, high-current relay output, redundant.

Safe Analog Input (SAI) — Field Termination Assemblies

FC-TSAI-16115: 16-channel safe analog input FTA, 4–20 mA, HART-capable, simplex, loop-powered.
FC-TSAI-16116: 16-channel safe analog input FTA, 4–20 mA, HART-capable, redundant module support.
FC-TSAI-08115: 8-channel safe analog input FTA, thermocouple/RTD inputs, simplex configuration.
FC-TSAI-08116: 8-channel safe analog input FTA, thermocouple/RTD inputs, redundant configuration.

Safe Analog Output (SAO) — Field Termination Assemblies

FC-TSAO-08115: 8-channel safe analog output FTA, 4–20 mA, HART pass-through, simplex wiring.
FC-TSAO-08116: 8-channel safe analog output FTA, 4–20 mA, HART pass-through, redundant support.

Power Supply & System Modules

FC-PSU-1224: Safety Manager 24 VDC redundant power supply module, cabinet-mount, hot-swap capable.
FC-SDIL-0824: Safe digital input logic module, 8-channel, 24 VDC, direct backplane interface.

Quality Control for the Safety Manager FC-TS Range

Safety Manager FC-TS field termination assemblies present specific quality verification challenges due to their role as the physical interface between field wiring and the SIS logic solver. DriveKNMS applies a structured inspection and functional test protocol to all FC-TS modules prior to shipment:

Modules that fail any stage of this protocol are quarantined and not offered for sale. DriveKNMS does not supply untested or cosmetically refurbished modules represented as functional.
