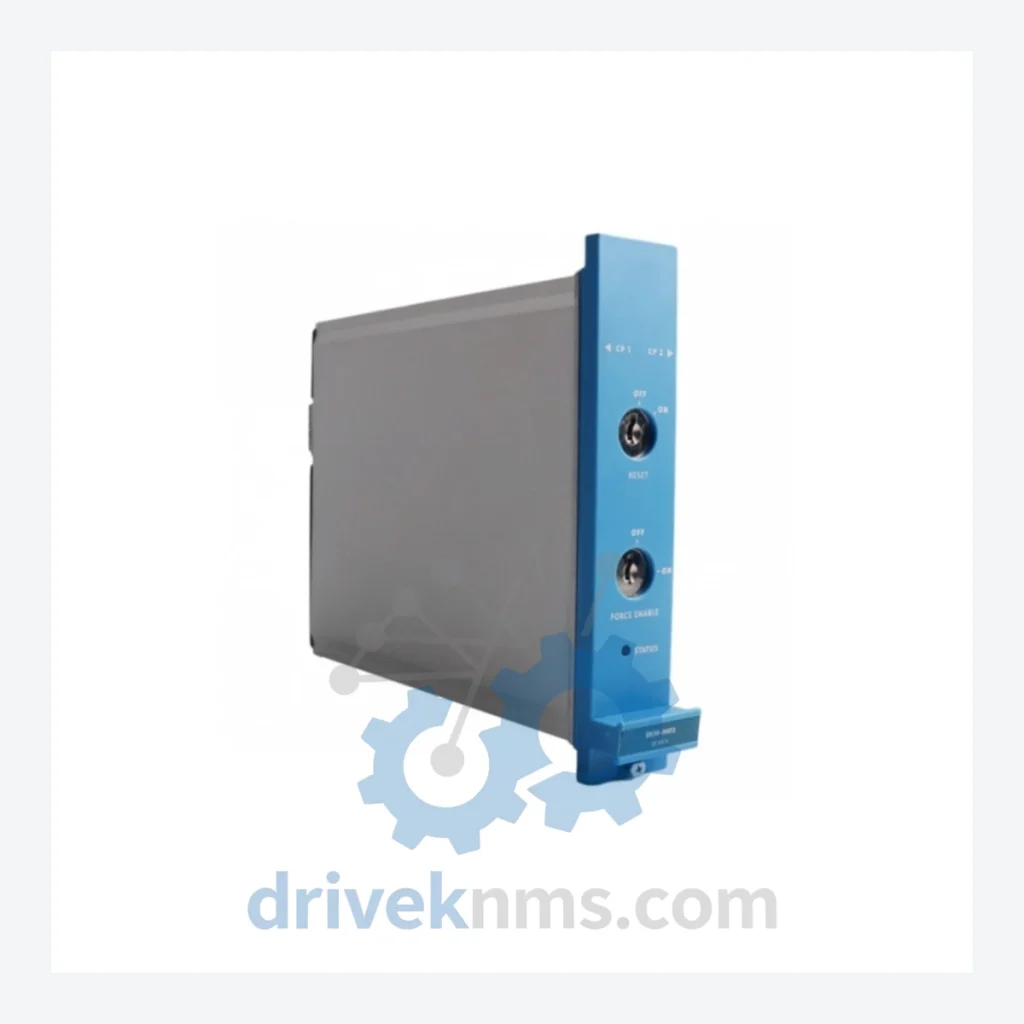

Honeywell FSC Series Modules: FS-BKM-0001

Technical Dossier

Product Details And Specifications

Honeywell FSC Series Technical Notes

The Evolution of FSC Architecture

The FSC platform was introduced by Honeywell in the early 1990s as a successor to relay-based and first-generation programmable safety systems. The original FSC hardware used a TMR (Triple Modular Redundancy) or 1oo2D (one-out-of-two with diagnostics) voting architecture implemented across dedicated processor and I/O modules. Early generations relied on proprietary backplane communication buses with fixed rack configurations.

Through successive hardware revisions, Honeywell expanded the FSC module catalog to include high-density I/O, HART-enabled analog modules, and Profibus DP communication adapters, addressing integration requirements with field instrumentation and third-party SCADA systems. The introduction of the FSC Safety Manager (SM) platform in the 2000s extended the architecture with Ethernet-based engineering workstation connectivity and IEC 61131-3 compliant programming environments.

As of the mid-2010s, Honeywell began transitioning customers toward the Safety Manager SC (SMSC) platform, which consolidates FSC functionality onto a more compact, cybersecurity-hardened hardware base. Many FSC modules are now classified as mature or end-of-production, making third-party spare parts sourcing essential for sites committed to long-term FSC operation without full system migration.

FSC Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Honeywell FSC series. Each entry includes a concise functional description.

FS-BKM-0001: Backplane communication module for FSC rack interconnect bus.
FS-SDO-0824: 8-channel digital output module, 24 VDC, SIL 3 rated.
FS-SDI-0824: 8-channel digital input module, 24 VDC, IEC 61508 SIL 3.
FS-SAI-F451: 4-channel analog input, 4–20 mA HART, SIL 2/3 capable.
FS-SAO-F451: 4-channel analog output, 4–20 mA, loop-powered field devices.
FS-CPU-0200: Central processing unit, dual-redundant, 200 ms max scan cycle.
FS-CPU-0400: High-speed CPU module, 400-node I/O capacity, TMR support.
FS-PSU-2410: 24 VDC / 10 A power supply module, redundant pair capable.
FS-PSU-2420: 24 VDC / 20 A power supply, extended rack power budget.
FS-COM-PBDP: Profibus DP master/slave communication adapter module.
FS-COM-MODBUS: Modbus RTU/TCP gateway module for third-party DCS integration.
FS-RLY-0801: 8-channel relay output module, dry contact, 250 VAC rated.
FS-SDI-1624: 16-channel digital input module, 24 VDC, high-density rack format.
FS-SDO-1624: 16-channel digital output module, 24 VDC, high-density format.
FS-SAI-F811: 8-channel analog input, 1–5 VDC or 4–20 mA selectable per channel.
FS-TMR-VOTER: TMR voting logic module for 2oo3 safety architecture configurations.
FS-ETH-0001: Ethernet communication module, 100 Mbps, engineering station link.
FS-BKP-EXT: Backplane extension module for multi-rack FSC system configurations.

Quality Control for the FSC Range

FSC modules present specific test challenges due to their safety-rated backplane bus architecture and internal self-diagnostic circuits. DriveKNMS applies the following test protocol to all FSC modules prior to dispatch:

Each module is powered in an FSC-compatible test rack using the correct backplane revision. Digital I/O modules are exercised through full channel-by-channel functional verification using calibrated signal sources and load simulators. Analog input modules are tested at 0%, 25%, 50%, 75%, and 100% of the rated input range, with linearity error recorded against the module's original specification sheet. Communication modules including Profibus DP and Modbus adapters are tested for correct frame transmission and error-response behavior using protocol analyzers. CPU modules are booted with a known-good test application to verify scan cycle execution, memory integrity, and watchdog timer function. All test results are documented and shipped with the module as a test certificate.
