Honeywell Safety Manager FS Series Modules: FS-IOB-0001R

Technical Dossier

Product Details And Specifications

Honeywell Safety Manager FS Series Technical Notes

The Honeywell Safety Manager (SM) FS Series is a dedicated Safety Instrumented System (SIS) platform engineered to IEC 61511 and IEC 61508 SIL 2/SIL 3 requirements. It is deployed across the most demanding process industries globally — including petrochemical complexes, LNG terminals, nuclear auxiliary systems, offshore platforms, and refinery critical-path units. The FS architecture operates as a standalone safety controller or in tight integration with Honeywell's Experion PKS distributed control system, providing a unified safety and control environment. Its modular backplane design, redundant communication buses, and deterministic scan-cycle execution have made it the reference platform for functional safety in brownfield and greenfield heavy industrial installations across North America, Europe, and Asia-Pacific.

The Evolution of FS Series Architecture

The Honeywell Safety Manager platform was introduced in the early 2000s as a successor to the FSC (Fail Safe Controller) line, inheriting its proven triple-modular redundancy (TMR) logic but migrating to a modern IEC 61131-3 programming environment and Ethernet-based supervisory connectivity. The first-generation FS chassis used a proprietary backplane bus with fixed I/O slot assignments. Subsequent revisions introduced the Universal I/O Base (FS-IOB) concept, decoupling the physical wiring layer from the logic layer and enabling hot-swap module replacement without process interruption.

By the mid-2010s, Honeywell released enhanced CPU modules with expanded memory and faster scan rates to accommodate larger cause-and-effect matrices. Communication adapters were updated to support HART pass-through, enabling asset management integration without additional marshalling hardware. The current generation maintains backward compatibility with legacy FS-IOB wiring bases, meaning a site that installed FS-IOB-0001R bases in 2005 can upgrade logic modules without rewiring field terminations — a critical lifecycle advantage for plants with 20–30 year operational horizons.

As the FS Series enters its maturity phase, Honeywell continues to supply spare modules and provide lifecycle extension programs, but engineering resources are increasingly directed toward the Safety Manager SC (SMC) next-generation platform. Sites planning major expansions should evaluate migration pathways, while existing FS installations can rely on third-party MRO suppliers for module-level spares.

FS Series Full Catalog & Functionalities (SKU List)

Base I/O & Wiring Modules

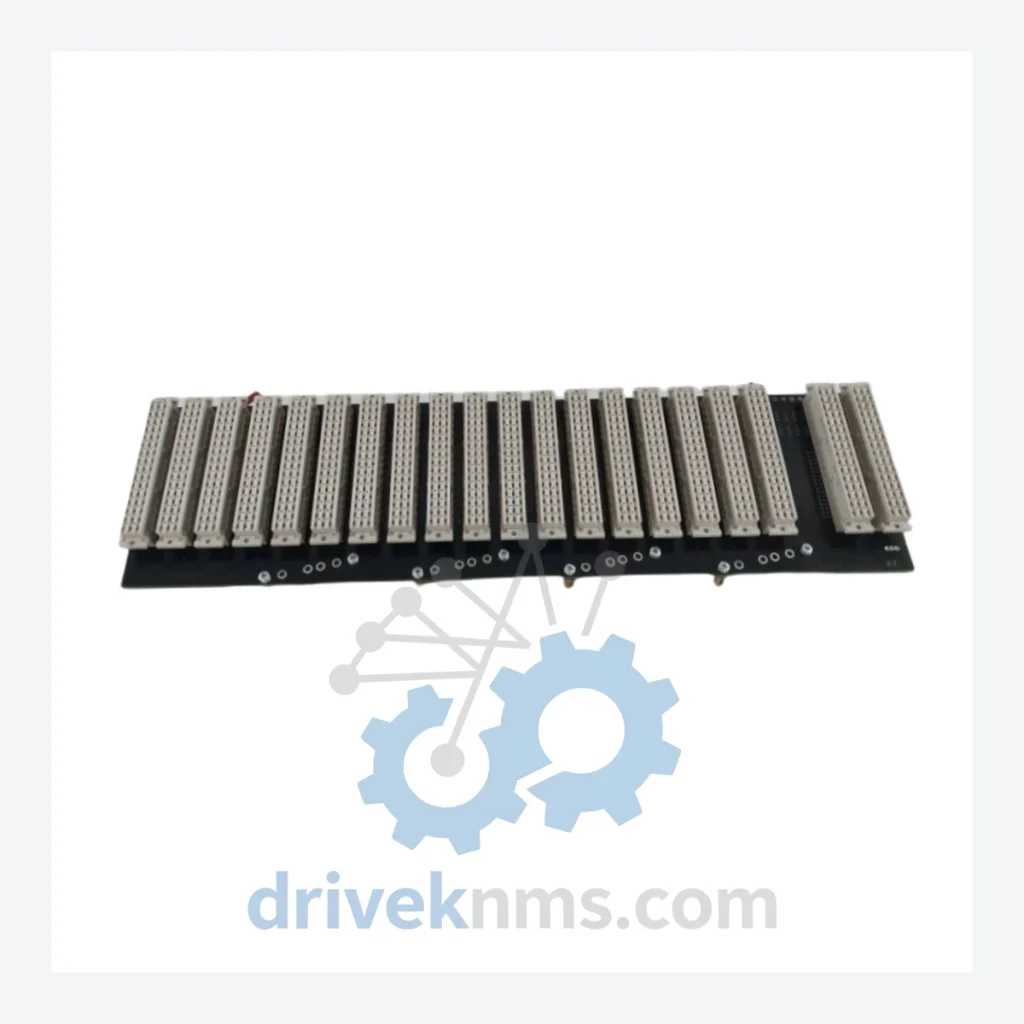

• FS-IOB-0001R: Universal I/O base module, 24-channel field wiring termination base for FS series I/O modules, redundant-capable.
• FS-IOB-0002R: Extended I/O base module, 32-channel field termination base with enhanced shielding for high-noise environments.
• FS-IOB-0004: Analog I/O base, dedicated termination base for analog signal modules, supports HART field devices.
• FS-IOB-0008: Digital I/O base module, 16-channel discrete wiring base, DIN-rail or rack-mount compatible.

Digital Input (DI) Modules

• FS-SDI-0024: 24-channel 24 VDC digital input module, SIL 2 rated, line fault detection per channel.
• FS-SDI-0016H: 16-channel high-density DI module, 120 VAC input compatible, used in legacy relay interface panels.
• FS-SDI-0008: 8-channel digital input, SIL 3 capable in 1oo2D voting configuration.

Digital Output (DO) Modules

• FS-SDO-0024: 24-channel 24 VDC digital output module, solid-state, short-circuit protected, SIL 2.
• FS-SDO-0008R: 8-channel relay output module, SPDT contacts, rated for solenoid valve and motor starter loads.
• FS-SDO-0016: 16-channel transistor output, high-speed switching for ESD valve actuators.

Analog Input (AI) Modules

• FS-SAI-0008H: 8-channel analog input, 4–20 mA HART, SIL 2, supports NAMUR NE43 fault detection.
• FS-SAI-0016: 16-channel analog input module, 0–10 V / 4–20 mA selectable, used in pressure and temperature loops.
• FS-SAI-0004T: 4-channel thermocouple/RTD input module, SIL 2, for high-integrity temperature measurement.

CPU & Controller Modules

• FS-CPU-0014R: Safety Manager main processor, dual-redundant CPU, 32 MB application memory, 10 ms minimum scan cycle.
• FS-CPU-0016: Enhanced CPU module, expanded I/O point capacity, supports peer-to-peer safety communication.

Communication & Network Modules

• FS-ETH-0001: Ethernet communication module, 100 Mbps, Modbus TCP and Honeywell FTE (Fault Tolerant Ethernet) support.
• FS-PFB-0001: PROFIBUS DP adapter, connects FS controller to PROFIBUS field device networks.
• FS-HSE-0002: High-Speed Ethernet module for Experion PKS integration, supports Safety Builder engineering tool.

Power Supply Modules

• FS-PSU-0024R: 24 VDC redundant power supply module, 10 A output, hot-swap capable, for FS main chassis.
• FS-PSU-0048: 48 VDC power supply, used in specific I/O expansion chassis configurations.

Quality Control for the FS Series Range

FS Series modules incorporate complex backplane communication logic and safety-rated internal diagnostics that require specialized test procedures beyond standard power-on verification. DriveKNMS applies the following protocol to all FS Series units prior to dispatch:
