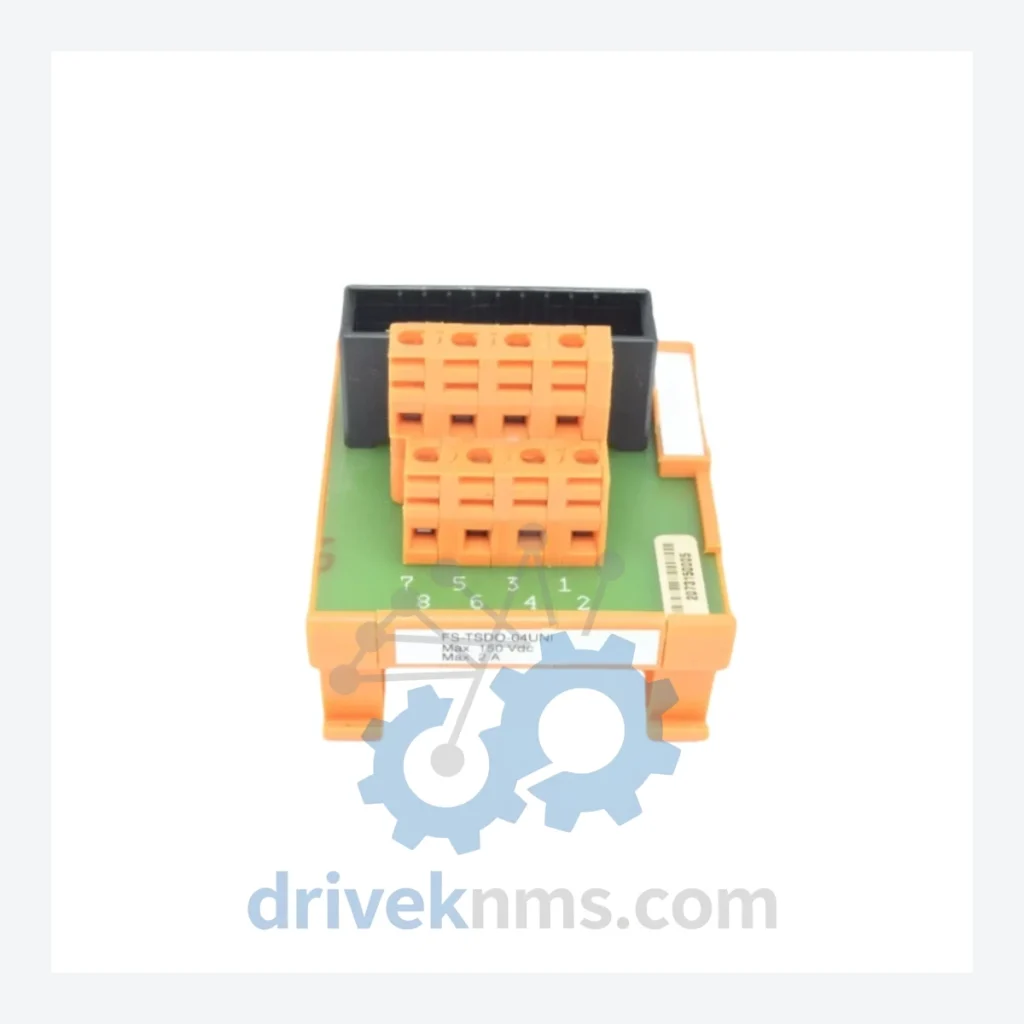

Honeywell Safety Manager FS Series Modules: FS-TSDO-04UNI

Technical Dossier

Product Details And Specifications

Honeywell Safety Manager FS Series Technical Notes

The Honeywell Safety Manager (SM) FS Series is a dedicated safety instrumented system (SIS) platform engineered for IEC 61508 SIL 2 and SIL 3 applications across global heavy industry. Deployed extensively in petrochemical complexes, LNG terminals, nuclear auxiliary systems, offshore platforms, and refinery process units, the FS Series constitutes one of the most widely installed safety PLC architectures in continuous-process industries. Its modular backplane architecture supports redundant CPU configurations, distributed I/O expansion, and deterministic safety bus communication — making it the reference platform for functional safety engineers specifying emergency shutdown (ESD), fire and gas (F&G), and burner management systems (BMS). The FS-TSDO-04UNI is a universal safe digital output module within this architecture, providing four independently configurable output channels with built-in diagnostics and fail-safe de-energize-to-trip behavior.

The Evolution of Safety Manager FS Series Architecture

Honeywell introduced the Safety Manager platform in the early 2000s as a successor to its FSC (Fail-Safe Controller) line, which had been the dominant SIS platform in European process industries since the 1990s. The FSC used a TMR (Triple Modular Redundancy) voting architecture on proprietary backplanes; Safety Manager retained TMR capability while introducing a standardized IEC 61131-3 programming environment and Ethernet-based safety communication via the Safety Builder engineering tool.

The FS Series module designation reflects the platform's modular I/O philosophy: each module type is independently certified, hot-swappable in redundant configurations, and communicates over the internal FS Bus (a deterministic, fault-tolerant backplane bus). Early FS Series deployments (pre-2008) relied on the SM 2.x firmware baseline with limited diagnostic coverage reporting; post-2010 revisions introduced enhanced SIL verification reports, expanded channel diagnostics, and compatibility with the Safety Manager SC (Safety Controller) variant for smaller footprint installations.

Safety Manager FS Series Full Catalog & Functionalities (SKU List)

Safe Digital Output Modules

• FS-TSDO-04UNI: 4-channel universal safe digital output module, SIL 2/3 rated, de-energize-to-trip, 24 VDC load switching with per-channel diagnostics.
• FS-TSDO-08: 8-channel safe digital output module, 24 VDC, SIL 2 certified, compact form factor for high-density ESD applications.
• FS-TSDO-04R: 4-channel relay output module, dry contact, SIL 2, suitable for valve actuator and solenoid interfaces.

Safe Digital Input Modules

• FS-TSDI-16: 16-channel safe digital input module, 24 VDC, SIL 2/3, field device monitoring with short-circuit and open-circuit detection.
• FS-TSDI-08: 8-channel safe digital input module, 24 VDC, SIL 3 capable with 1oo2D voting support.
• FS-TSDI-04UNI: 4-channel universal safe digital input, configurable for NAMUR, dry contact, or 24 VDC field devices.

Safe Analog Input Modules

• FS-TSAI-08: 8-channel safe analog input module, 4–20 mA HART, SIL 2/3, with per-channel open-loop and range diagnostics.
• FS-TSAI-04: 4-channel safe analog input, 4–20 mA, SIL 2, suitable for pressure transmitter and flow meter interfaces.
• FS-TSAI-04UNI: 4-channel universal analog input, configurable for mA, mV, thermocouple, and RTD signal types.

Safe Analog Output Modules

• FS-TSAO-04: 4-channel safe analog output module, 4–20 mA, SIL 2, for positioner and control valve interfaces requiring safety-rated output.

CPU & Controller Modules

• FS-TAI-PROC: Safety Manager main processor module, dual-redundant capable, executes IEC 61131-3 safety logic at deterministic scan rates.
• FS-TAI-PROC/R: Redundant processor module, paired with FS-TAI-PROC for 1oo2 CPU voting configurations.

Communication & Network Modules

• FS-TAI-ETH: Ethernet communication module, supports Modbus TCP and OPC DA/UA for DCS integration and historian connectivity.
• FS-TAI-PROFIBUS: PROFIBUS DP communication adapter for integration with Siemens and ABB DCS platforms.
• FS-TAI-FF: Foundation Fieldbus H1 communication module for field device networks in refinery and chemical plant environments.

Power Supply Modules

• FS-TAI-PSU: 24 VDC redundant power supply module for Safety Manager chassis, with power-fail diagnostics and hot-swap capability.
• FS-TAI-PSU/R: Redundant power supply companion module, supports N+1 power redundancy for high-availability SIS installations.

Quality Control for the Safety Manager FS Series Range

The Safety Manager FS Series presents specific quality control requirements due to its safety-rated backplane bus, redundant voting logic, and channel-level diagnostic architecture. DriveKNMS applies a structured test protocol to all FS Series modules prior to shipment:

• Visual inspection for backplane connector integrity, component condition, and revision label verification.
• Powered functional test using a Safety Manager test chassis, verifying module enumeration, channel I/O response, and diagnostic status register outputs.
• For digital output modules (including FS-TSDO-04UNI): load switching test on all channels, de-energize-to-trip verification, and short-circuit protection confirmation.
• For analog input modules: signal accuracy verification across the 4–20 mA range, HART communication pass-through test, and open-loop fault detection confirmation.
• Firmware revision check and documentation against known-compatible Safety Manager system firmware baselines.
• Final burn-in period under simulated load conditions before packaging and dispatch.
