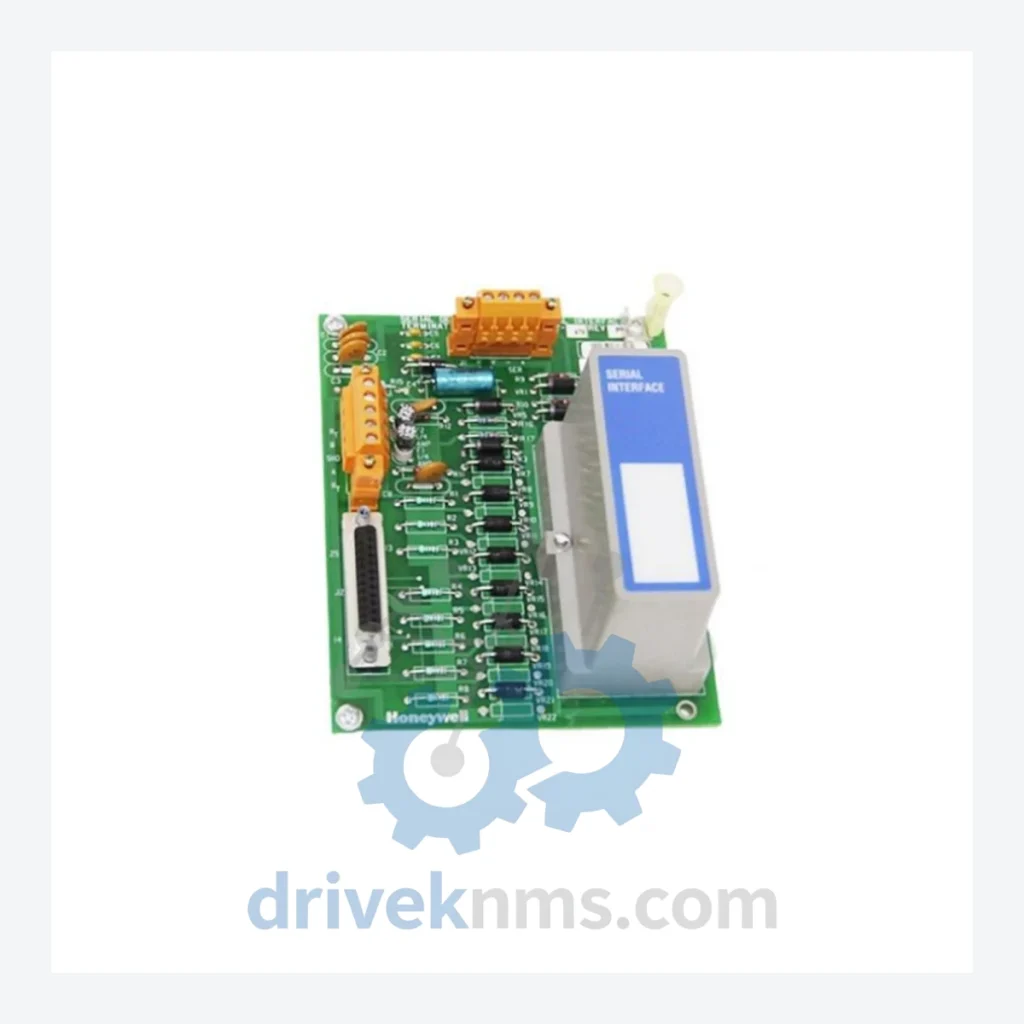

Honeywell Safety Manager FS Series Modules: FS-TSDI-16115 Safe Digital Input Field Termination Assembly

Technical Dossier

Product Details And Specifications

Honeywell Safety Manager FS Series Technical Notes

The Evolution of FS Series Architecture

The Honeywell Safety Manager platform was introduced in the early 2000s as a successor to the FSC (Fail Safe Controller) series, inheriting its proven triple modular redundancy (TMR) and dual modular redundancy (DMR) logic but migrating to a modern backplane and communication architecture. Early FS deployments used proprietary FTE (Fault Tolerant Ethernet) for controller-to-controller and controller-to-DCS communication. Subsequent hardware revisions introduced the SM Engineering Station (SMES) and updated I/O termination assemblies — including the TSDI (Termination Safe Digital Input) and TSDO (Termination Safe Digital Output) families — to improve field wiring density and reduce installation footprint.

The FS series has entered its mature/sustaining lifecycle phase. Honeywell continues to provide firmware updates and spare parts support, but new greenfield SIS projects are increasingly directed toward the Safety Manager SC (SMSC) platform. For existing FS installations, long-term maintenance support — including refurbished modules, tested spare boards, and lifecycle extension services — remains the primary procurement strategy for plant operators committed to avoiding costly platform migrations.

FS Series Full Catalog & Functionalities (SKU List)

The following SKUs represent the core module range of the Honeywell Safety Manager FS series, classified by functional category. Each module is individually tested and traceable.

Safe Digital Input Modules & Field Termination Assemblies

• FS-TSDI-16115: Safe Digital Input Field Termination Assembly, 16-channel, 24 VDC, SIL 2/3 rated, for use with FS-SDI modules.
• FS-SDI-0824: Safe Digital Input module, 8-channel, 24 VDC, dual-channel voting, DIN rail mount.
• FS-SDI-1624: Safe Digital Input module, 16-channel, 24 VDC, configurable 1oo2 or 2oo3 voting logic.
• FS-TSDI-0824: Safe Digital Input Field Termination Assembly, 8-channel, 24 VDC, screw terminal field wiring interface.

Safe Digital Output Modules & Field Termination Assemblies

• FS-SDO-0824: Safe Digital Output module, 8-channel, 24 VDC, solid-state relay output, SIL 2 certified.
• FS-TSDO-0824: Safe Digital Output Field Termination Assembly, 8-channel, 24 VDC, for FS-SDO modules.
• FS-TSDO-16115: Safe Digital Output Field Termination Assembly, 16-channel, 115 VAC, high-voltage field interface.

Safe Analog Input Modules & Field Termination Assemblies

• FS-SAI-0800: Safe Analog Input module, 8-channel, 4–20 mA HART, SIL 2/3, with diagnostics.
• FS-TSAI-0800: Safe Analog Input Field Termination Assembly, 8-channel, 4–20 mA, screw terminal interface.
• FS-SAI-0801: Safe Analog Input module, 8-channel, 4–20 mA, non-HART variant, for legacy field devices.

Safe Analog Output Modules

• FS-SAO-0400: Safe Analog Output module, 4-channel, 4–20 mA, SIL 2, for final element positioning.
• FS-TSAO-0400: Safe Analog Output Field Termination Assembly, 4-channel, 4–20 mA, field wiring termination.

Controller & CPU Modules

• FS-CPU-0001: Safety Manager Central Processing Unit, primary controller module, TMR architecture, FTE communication port.
• FS-CPU-0002: Safety Manager CPU, redundant controller module, hot-standby configuration support.
• FS-COM-0001: Safety Manager Communication Module, Modbus RTU/TCP and FTE interface, for DCS integration.

Power Supply Modules

• FS-PSU-0024: Safety Manager Power Supply Unit, 24 VDC output, redundant-capable, for FS chassis power distribution.
• FS-PSU-0048: Safety Manager Power Supply Unit, 48 VDC output, for high-voltage I/O bus applications.

Sourcing Hard-to-Find & Obsolete FS Series Parts

For plant operators running extended maintenance cycles on FS-based SIS installations, DriveKNMS provides: verified replacement modules with full functional test documentation, cross-reference support for discontinued part numbers, and emergency shipment capability for unplanned outage scenarios. All modules are shipped with test records and are available for inspection prior to dispatch.

Quality Control for the FS Series Range

The Honeywell Safety Manager FS series uses a proprietary backplane bus and FTE communication protocol that requires module-level functional validation beyond standard power-on testing. DriveKNMS applies the following test procedures to all FS series modules prior to shipment:

• Backplane bus continuity and signal integrity verification using FS-compatible test fixtures.
• Channel-by-channel I/O functional test for all digital and analog input/output modules, including voting logic verification for SDI modules.
• FTE communication port loopback test for CPU and communication modules.
• Power supply output voltage and ripple measurement under rated load conditions.
• Visual inspection of PCB, connectors, and field termination screw blocks for mechanical integrity.
• Burn-in cycle (minimum 24 hours) for CPU and power supply modules prior to final inspection.
