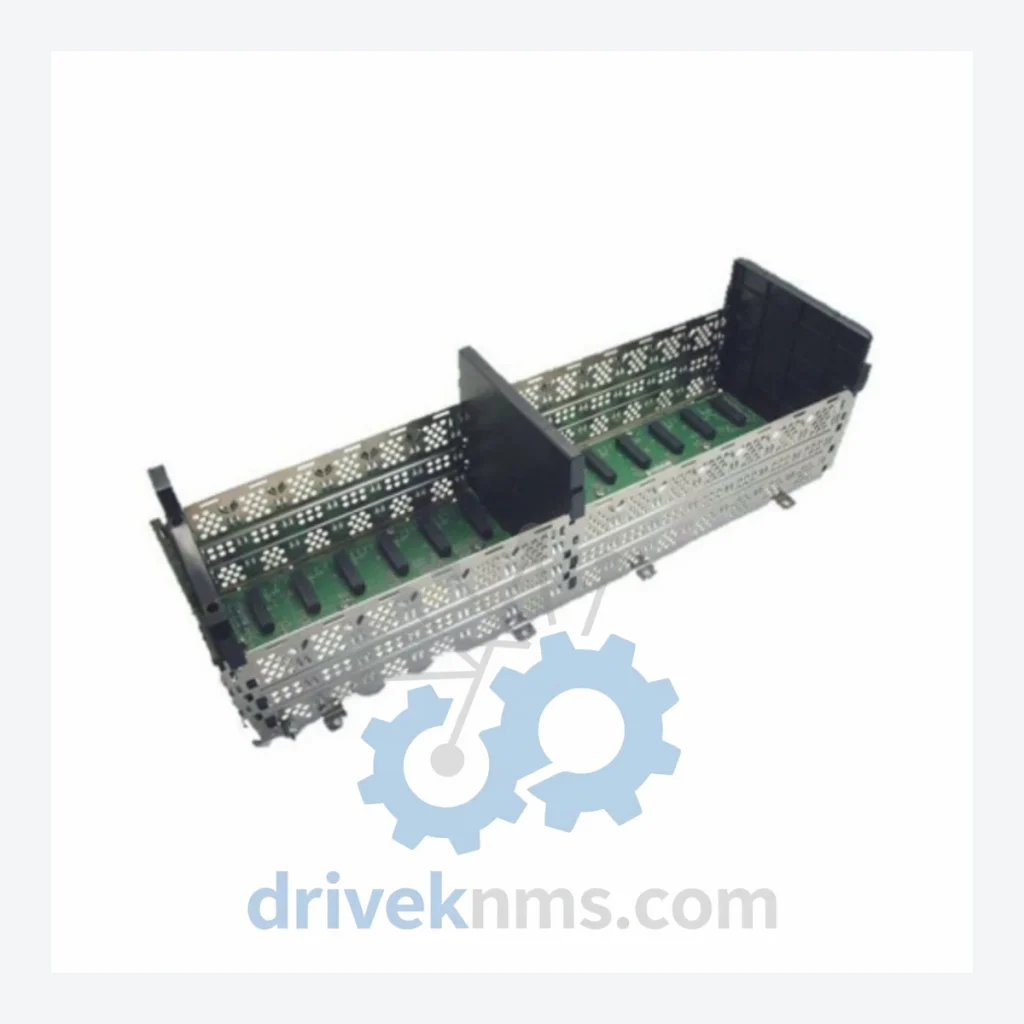

Honeywell TC-FXX132 I/O Chassis – Obsolete Experion PKS / Safety Manager Spare Part

When a TC-FXX132 chassis fails in an active Experion PKS or Safety Manager installation, the consequences extend far beyond a single module replacement. The chassis is the structural and electrical backbone of the entire I/O subsystem. Without a direct replacement, plant engineers face a forced migration path: new controller hardware, re-engineering of I/O maps, re-validation of safety logic, and potential weeks of unplanned downtime. Conservative estimates for a full Experion PKS cabinet upgrade — including engineering labor, FAT/SAT testing, and lost production — routinely exceed USD $500,000 per line. A single TC-FXX132 chassis, sourced from verified stock, eliminates that exposure entirely.

DriveKNMS maintains sourced inventory of the TC-FXX132 for facilities committed to sustaining legacy Honeywell control architectures through their remaining operational life.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are based on published Honeywell documentation. No parameters have been assumed or fabricated.

Solving the Discontinued Hardware Crisis

The TC-FXX132 chassis was designed as the physical and electrical foundation for Honeywell's FSC (Fail-Safe Controller) and Experion PKS I/O expansion architecture. In safety-instrumented systems (SIS) and distributed control systems (DCS) built on this platform, the chassis is not a commodity item — it defines the physical slot addressing, backplane communication, and power distribution for every I/O module installed within it.

Honeywell ceased production of the TC-FXX132 as part of the broader FSC platform end-of-life cycle. Facilities that have not yet migrated to Experion PKS R500+ or the newer Safety Manager SC platform continue to operate on infrastructure where this chassis is irreplaceable without a full system redesign.

The practical reality for plant asset managers: a chassis failure triggers a forced decision between an emergency spare (if one exists) and an unbudgeted capital project. Maintaining one or two TC-FXX132 units in bonded storage converts that capital risk into a predictable maintenance cost — typically less than 1% of the migration project value.

How to extend your Honeywell FSC / Experion PKS system life by 5–10 years:

• Chassis-level redundancy: Install a cold-standby TC-FXX132 in bonded storage, pre-tested and firmware-verified. This alone eliminates the single largest unplanned downtime risk in legacy FSC cabinets.
• Scheduled I/O module rotation: Pair chassis availability with a documented I/O module inspection cycle. Electrolytic capacitor degradation in modules seated in aging chassis is the primary failure mode after 15+ years of service.
• Firmware version control: Document the exact firmware revision running on all FSC controllers and I/O modules. Replacement chassis must be validated against the same firmware baseline to avoid compatibility conflicts.
• Backplane integrity checks: During planned shutdowns, inspect backplane connectors for oxidation and micro-fractures. A structurally sound chassis with clean backplane contacts extends reliable service life significantly.
• Vendor-managed spare parts program: Engage a specialist supplier (such as DriveKNMS) to maintain allocated stock under a long-term supply agreement. This removes the spot-market risk that intensifies as global inventory of obsolete Honeywell parts depletes.

For facilities operating under IEC 61511 or IEC 61508 safety lifecycle frameworks, maintaining documented spare parts availability is not only operationally prudent — it is a recognized element of the functional safety management system.

Condition & Reliability Assurance

All TC-FXX132 units processed by DriveKNMS pass a structured 5-step quality protocol before dispatch:

1. Visual and mechanical inspection: Chassis frame, slot guides, backplane connector pins, and mounting hardware are examined for physical damage, corrosion, and deformation.
2. Electrolytic capacitor assessment: Power supply and backplane capacitors are tested for ESR (Equivalent Series Resistance) drift — the primary aging indicator in units with extended storage or prior service history.
3. Firmware version verification: Where applicable, onboard firmware is read and documented. Units are matched to customer-specified revision requirements before shipment.
4. Pin and connector integrity check: All backplane and I/O slot connectors are inspected under magnification for oxidation, bent pins, and contamination. Affected contacts are cleaned using approved non-conductive solvents.
5. Functional power-on test: Units are powered and verified for correct backplane communication and slot recognition prior to packaging.

Units that do not pass all five stages are quarantined and not offered for sale.

Key Features for System Maintenance

• Drop-in replacement: The TC-FXX132 installs directly into existing FSC and Experion PKS cabinet configurations without mechanical modification.
• No reprogramming required: Slot addressing and backplane communication parameters are hardware-defined. Replacing the chassis does not require changes to controller logic, I/O mapping, or safety function configuration.
• Avoids engineering re-scoping: A direct chassis replacement keeps the existing I/O module population, wiring, and field device connections intact — eliminating the engineering hours associated with a platform migration.
• Preserves safety validation: For SIS applications, retaining the original hardware platform means existing SIL verification documentation and proof-test records remain valid. A platform change would require full re-validation.
• Immediate dispatch: In-stock units can be shipped within 24–48 hours of order confirmation, supporting emergency maintenance schedules.

FAQ

Q: What warranty applies to an obsolete part like the TC-FXX132?
A: DriveKNMS provides a 12-month warranty on all units, covering defects in materials and workmanship under normal operating conditions. Warranty terms are confirmed in writing at the time of order.

Q: How do I know the unit is new or properly refurbished — not a worn-out pull?
A: Every unit is processed through the 5-step QA protocol described above. Condition grade (new surplus or professionally refurbished) is declared on the invoice. We do not sell field-pull units without full disclosure of service history.

Q: Should we buy more than one unit?
A: For any facility running more than one FSC or Experion PKS cabinet, holding a minimum of two TC-FXX132 chassis in bonded storage is the standard recommendation. Global inventory of this part is finite and continues to decline. Procurement cost today is a fraction of what emergency sourcing will cost in 24–36 months.

Q: Can you supply other Honeywell FSC / Experion PKS components?
A: Yes. DriveKNMS specializes in the full FSC and Experion PKS spare parts ecosystem. Contact us with your complete BOM for availability and pricing.
