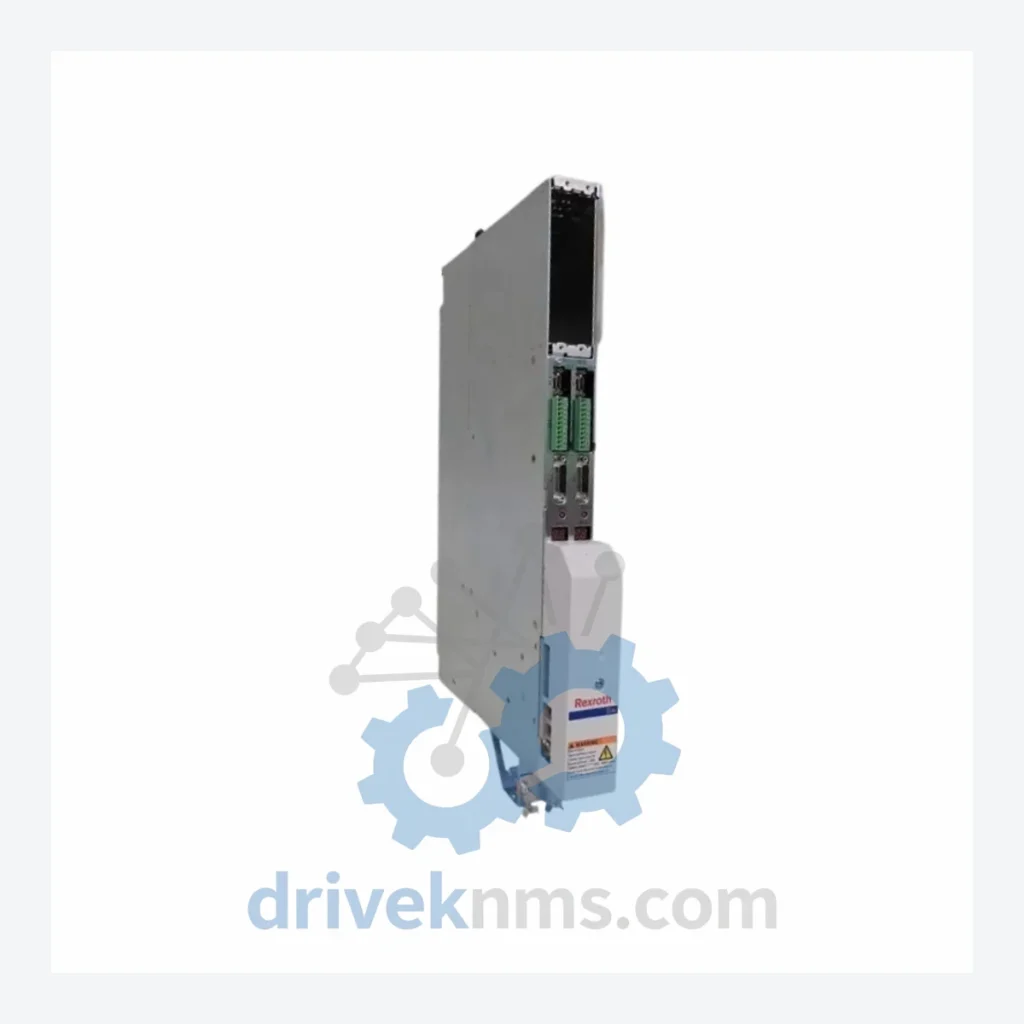

Indramat HDS Series Servo Drive Controllers: HDS04.2-W200N-HS23-01-FW

Technical Dossier

Product Details And Specifications

Indramat HDS Series: Comprehensive Module Range and Technical Overview

The Indramat HDS (High Dynamic Servo) series represents one of the most widely deployed AC servo drive platforms in global heavy industry. Manufactured by Indramat GmbH — subsequently absorbed into Bosch Rexroth — the HDS series achieved dominant installation bases across petrochemical refineries, nuclear power auxiliary systems, offshore drilling platforms, continuous casting lines, and large-format printing machinery. Its closed-loop vector control architecture, combined with a standardized SERCOS fiber-optic interface, made it the reference design for coordinated multi-axis motion in the 1990s and 2000s. Installed units remain operational in facilities across Europe, North America, and East Asia, creating sustained demand for spare parts, repair services, and lifecycle extension support.

The Evolution of HDS Architecture

The HDS series was introduced as a successor to the earlier TDM (Transistor Drive Module) and KDS drive families, addressing the need for higher power density and digital fieldbus integration. First-generation HDS units (HDS01, HDS02) used analog command interfaces and were compatible with the CLMS and CLM controller families. The HDS03 and HDS04 generations introduced native SERCOS I (IEC 61491) fiber-optic ring support, enabling deterministic real-time synchronization across up to 254 axes at 2 ms cycle times.

The HDS04.2 sub-series — to which the HDS04.2-W200N-HS23-01-FW belongs — represents the mature production variant with enhanced firmware (FW suffix), revised power stage IGBTs for improved thermal cycling tolerance, and expanded parameter memory. The W200N designation specifies a 200 A continuous output current rating in the N (normal) cooling class. The HS23 firmware variant enables high-speed spindle mode with encoder interpolation up to 2048 lines/rev.

Bosch Rexroth officially discontinued the HDS series in favor of the IndraDrive (HCS, HMS, HMD) platform. However, the installed base remains large enough that Bosch Rexroth and authorized distributors continue to supply repair and exchange units. For end-of-life facilities, third-party specialists such as DriveKNMS provide the primary sourcing channel for tested surplus and refurbished HDS modules.

HDS Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly traded models within the Indramat HDS series. Each unit is a complete AC servo drive controller module unless otherwise noted.

HDS04.2-W200N-HS23-01-FW: 200 A, SERCOS, high-speed spindle firmware, N-cooling, FW revision
HDS04.2-W200N-HA23-01-FW: 200 A, SERCOS, standard servo firmware HA23, N-cooling
HDS04.2-W100N-HS23-01-FW: 100 A, SERCOS, high-speed spindle mode, N-cooling
HDS04.2-W100N-HA23-01-FW: 100 A, SERCOS, standard servo firmware, N-cooling
HDS04.2-W075N-HS23-01-FW: 75 A, SERCOS, high-speed spindle, compact power class
HDS04.2-W075N-HA23-01-FW: 75 A, SERCOS, standard servo, compact power class
HDS04.2-W040N-HS23-01-FW: 40 A, SERCOS, high-speed spindle, low-power axis
HDS04.2-W040N-HA23-01-FW: 40 A, SERCOS, standard servo, low-power axis
HDS03.2-W200N-HS23-01-FW: 200 A, HDS03 generation, SERCOS I, high-speed spindle
HDS03.2-W100N-HS23-01-FW: 100 A, HDS03 generation, SERCOS I, high-speed spindle
HDS03.2-W075N-HA23-01-FW: 75 A, HDS03 generation, standard servo firmware
HDS02.2-W110N-HA23-01-FW: 110 A, HDS02 generation, analog/SERCOS hybrid interface
HDS02.2-W075N-HA23-01-FW: 75 A, HDS02 generation, analog/SERCOS hybrid interface
HDS01.2-W075N-HA23-01-FW: 75 A, HDS01 first generation, analog command interface
HDS01.2-W040N-HA23-01-FW: 40 A, HDS01 first generation, analog command interface
HDS04.2-W200N-HS23-01-FW-B: 200 A, B-variant PCB revision, enhanced EMC filtering
HDS04.2-W100N-HS23-01-FW-B: 100 A, B-variant PCB revision, enhanced EMC filtering

Sourcing Hard-to-Find & Obsolete HDS Series Parts

The HDS series entered end-of-life status progressively between 2010 and 2018. Bosch Rexroth's official repair exchange program covers select HDS04.2 variants, but lead times for factory-refurbished units frequently exceed 16 weeks. HDS01 and HDS02 generation units are no longer supported under any OEM program.

DriveKNMS maintains a dedicated inventory of tested surplus HDS modules sourced from decommissioned production lines, controlled factory shutdowns, and OEM overstock. All units are cataloged by firmware revision, power class, and cooling variant. For facilities operating legacy Indramat systems, DriveKNMS provides: same-day availability checks, cross-reference matching between HDS and IndraDrive equivalents, firmware version verification prior to shipment, and long-term consignment stocking agreements for high-volume maintenance contracts.

Quality Control for the HDS Series Range

HDS series drives incorporate a multi-layer backplane bus connecting the power stage, control board, and optional expansion cards. Standard bench testing is insufficient to validate inter-board communication integrity. DriveKNMS applies a dedicated HDS test protocol that includes: full DC bus charge/discharge cycle verification at rated voltage (540 VDC), SERCOS ring initialization test with a reference CLM or CSH controller, encoder feedback loop closure test at 1024 and 2048 PPR, thermal imaging of IGBT modules under 50% load for 30 minutes, and parameter memory read/write verification across all 255 drive parameters. Units that fail any stage are quarantined and not offered for sale. Test reports are available upon request for critical applications.
