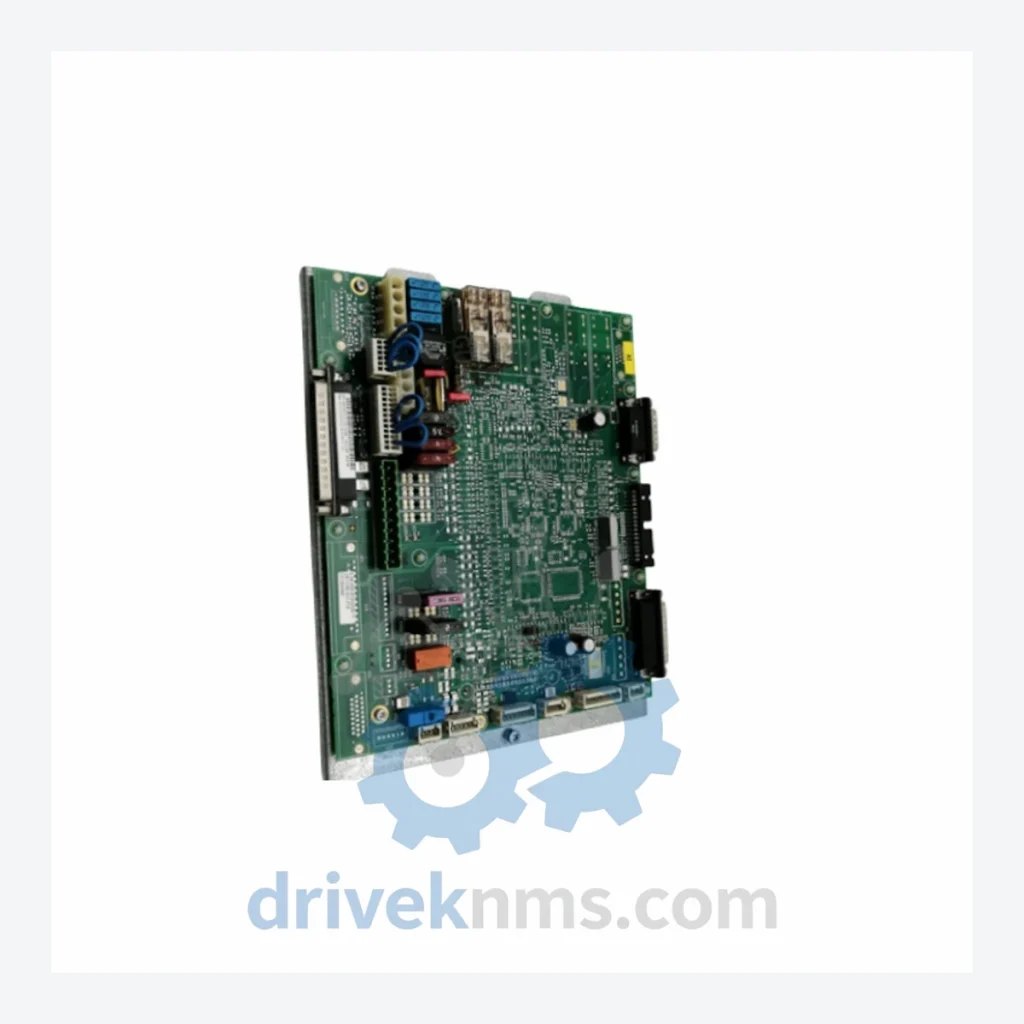

KUKA 00-217-026 Main Board – Obsolete KR C2 / KR C3 Spare Part

When a KUKA KR C2 or KR C3 robot controller loses its main board, the production line stops. Not for hours — for weeks, sometimes months. The original equipment manufacturer discontinued this board years ago. New-generation KUKA controllers are not backward-compatible, and a full system migration — including mechanical re-integration, safety re-certification, and PLC reprogramming — routinely costs manufacturing operations between $150,000 and $600,000 USD per robot cell. That figure does not include lost production revenue during the transition period.

DriveKNMS holds verified physical stock of the KUKA 00-217-026 (00217026D3236-K13) Main Board. For plant managers and maintenance engineers who are not yet ready to commit to a full system overhaul, this is a direct, cost-effective path to restoring operations without touching the existing control architecture.

Technical Specifications

Note: Electrical parameters specific to board revisions vary. DriveKNMS will confirm exact revision and firmware compatibility prior to shipment. No parameters are published here that cannot be independently verified.

Solving the Discontinued Hardware Crisis

The KUKA KR C2 controller platform was the industrial standard for articulated robot automation throughout the 2000s and into the early 2010s. Tens of thousands of units remain in active service across automotive body shops, foundries, palletizing lines, and general assembly operations worldwide. The main board — part number 00-217-026 — is the central processing and communication hub of the entire controller. It manages real-time motion interpolation, safety circuit arbitration, and fieldbus communication (DeviceNet, Profibus, or Ethernet depending on configuration).

KUKA's official support for KR C2 hardware has wound down. Spare parts through authorized channels are either unavailable or carry lead times measured in quarters, not weeks. For a plant running 20 or 40 KR C2 robots, a single board failure that cannot be resolved quickly creates a cascading production deficit that no maintenance budget was designed to absorb.

The strategic reality is straightforward: the cost of sourcing and holding one or two spare main boards is a fraction of one day of unplanned downtime on a modern automotive or electronics production line. Plants that have already invested in KR C2 infrastructure — tooling, fixtures, safety fencing, programming — have a strong financial incentive to extend that asset's service life rather than retire it prematurely under supplier pressure.

Extending a KR C2 system's operational life by 5 to 10 years through targeted spare parts management is not a workaround. It is a deliberate capital preservation strategy. The key components that determine KR C2 longevity are the main board, the power supply module, the drive amplifier boards, and the teach pendant. Maintaining a controlled inventory of these four component families eliminates the primary failure modes that force unplanned retirements. A plant that secures two main boards, two power supply units, and a refurbished teach pendant has effectively insured its KR C2 fleet against the most common failure scenarios for a fraction of the cost of a single new robot installation.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality verification process to all discontinued controller boards before shipment:

• Step 1 – Visual and Physical Inspection: Full board examination for mechanical damage, burnt components, cracked solder joints, and connector pin integrity. Boards with physical damage that cannot be remediated are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are the primary failure point on boards that have been in storage or light service for extended periods. Each capacitor bank is tested for capacitance drift and ESR (equivalent series resistance). Out-of-specification capacitors are replaced with equivalent-rated components before the board proceeds.
• Step 3 – Firmware Version Verification: The firmware revision on the board is read and documented. Compatibility with the customer's KR C2 software version (KSS) is confirmed before shipment. Mismatched firmware is a known cause of post-installation faults that are frequently misdiagnosed as hardware failure.
• Step 4 – Connector and Pin Corrosion Check: All board connectors are inspected under magnification for oxidation and corrosion. Affected contacts are cleaned and treated. Connector housings with cracked retention clips are replaced.
• Step 5 – Functional Bench Test (where test fixture available): Boards are powered and tested for basic initialization and communication response where DriveKNMS test infrastructure supports the specific board revision.

Each board ships with a condition report documenting the findings from each step.

Key Features for System Maintenance

• Drop-in replacement: The 00-217-026 board installs directly into the KR C2 controller chassis using the original mounting points and connectors. No mechanical modification is required.
• No reprogramming required: Robot programs, tool data, and base data reside on the controller's hard drive or memory card, not on the main board. Replacing the main board does not erase existing robot programs. The system returns to its pre-failure operational state after board swap and standard KSS initialization.
• Avoids engineering reconstruction costs: A like-for-like board replacement keeps the existing safety circuit layout, fieldbus configuration, and peripheral wiring intact. There is no requirement to engage a systems integrator for re-commissioning work beyond standard startup verification.
• Supports long-term fleet management: Purchasing spare boards now, while stock exists, is the only reliable hedge against future unavailability. Secondary market supply of KR C2 main boards is finite and diminishing.

FAQ

Q: What warranty applies to a discontinued board?
A: DriveKNMS provides a 90-day warranty covering functional defects on all refurbished boards. New Old Stock units carry a 180-day warranty. Warranty claims are handled directly — no third-party authorization required.

Q: How do I confirm this is a genuine KUKA board and not a counterfeit?
A: Each board is supplied with photographs of the physical unit, including the part number label, board revision markings, and serial number (where present). Customers are encouraged to verify markings against KUKA's own documentation prior to installation.

Q: Should we buy one board or multiple?
A: For a fleet of 5 or more KR C2 robots, holding a minimum of two main boards is the standard recommendation among industrial maintenance planners. A single board failure that occurs while the spare is already in use creates the same crisis as having no spare at all. For critical production lines with no tolerance for downtime, three units is a defensible position.

Q: Can you source other KR C2 components?
A: Yes. DriveKNMS specializes in the full KR C2 and KR C3 spare parts ecosystem, including power supply modules, drive amplifier boards, teach pendants (KCP), and safety interface boards. Contact us with your full bill of materials.
