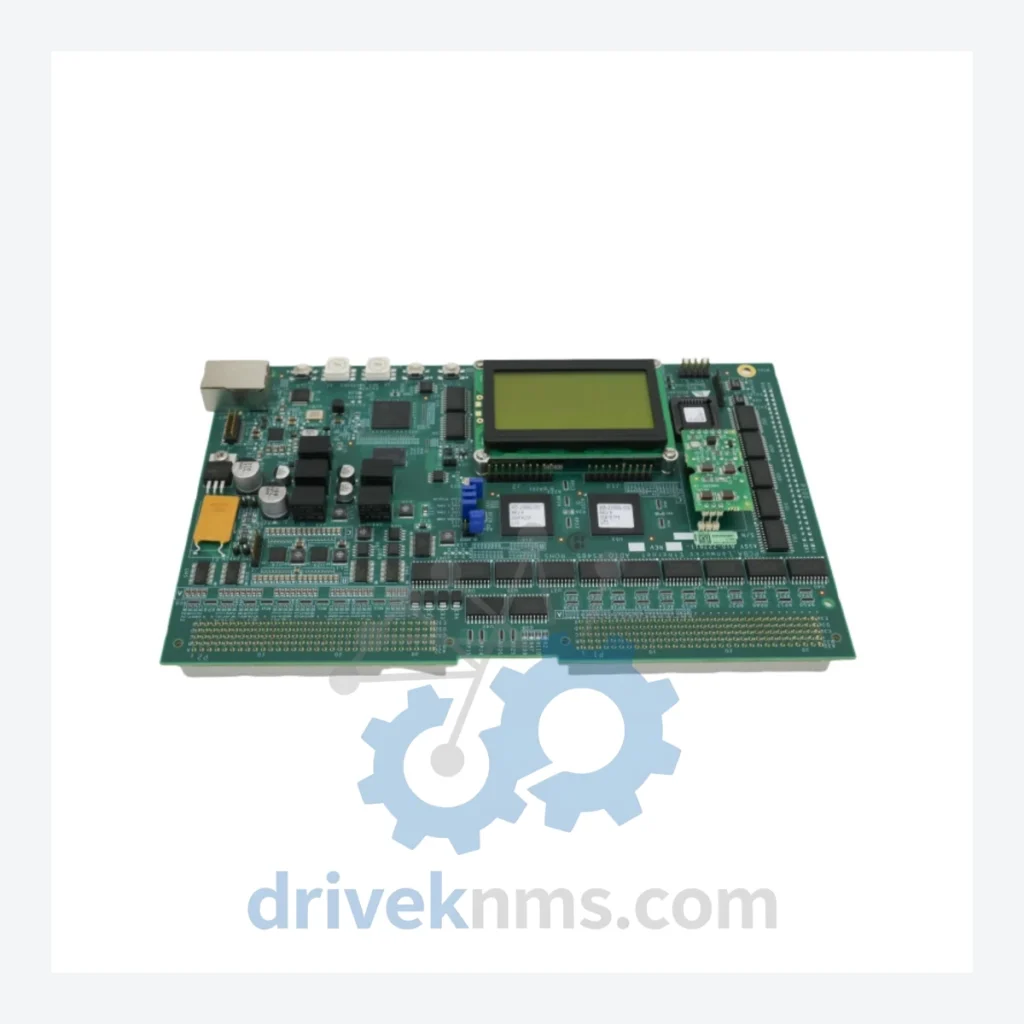

Lam Research TVB41D-1 / TMP 1D81 Series PCB Board: UI/FIB JTS SIH4 W/ BD 24 810-111093-100 C1848 TVB41D-1/TMP 1D81-000140 853-250063-007

Technical Dossier

Product Details And Specifications

Lam Research TVB41D-1 / TMP 1D81 Series: Comprehensive Module Range and Technical Overview

The Lam Research TVB41D-1 and TMP 1D81 series PCB boards are embedded control and interface assemblies deployed across Lam Research's plasma etch and chemical vapor deposition (CVD) platforms, including the Versys, Exelan, and 2300 series process chambers. These boards serve as the backbone of the UI/FIB (User Interface / Fiber Interface Board) subsystem, managing real-time process signal routing, sensor feedback, and inter-module communication within the tool's distributed control architecture. Installed in semiconductor fabs globally — including high-volume logic, DRAM, and NAND flash production lines — these assemblies are critical to maintaining process uptime in environments where unplanned downtime costs exceed $1M per hour. The TVB41D-1 / TMP 1D81 platform is found in facilities operated by TSMC, Samsung, SK Hynix, Micron, and Intel, among others.

The Evolution of TVB41D-1 / TMP 1D81 Architecture

The TVB41D-1 lineage traces to Lam Research's transition from analog process control to fully digital, bus-based distributed control systems in the mid-1990s. Early Lam platforms used discrete relay logic and analog signal conditioning boards. The introduction of the TMP (Tool Management Processor) architecture standardized inter-board communication via a proprietary backplane bus, enabling modular replacement of individual PCB assemblies without full system reconfiguration.

The TMP 1D81 sub-series introduced enhanced fiber-optic signal isolation for high-RF environments — a critical requirement in plasma etch chambers where electromagnetic interference from RF generators (typically 13.56 MHz or 2 MHz) can corrupt digital control signals. The TVB41D-1 variant added expanded I/O capacity and revised FPGA firmware to support 300mm wafer process recipes. Subsequent revisions (denoted by the trailing assembly suffix, e.g., -000140) reflect ECO (Engineering Change Order) updates addressing field reliability issues, component obsolescence substitutions, and firmware compatibility with updated host software versions. As Lam Research has migrated newer platforms to the Kiyo, Flex, and Sense.i architectures, the TVB41D-1 / TMP 1D81 series has entered the mature/end-of-life phase. OEM new stock is no longer available through standard distribution channels, making third-party refurbished and tested inventory the primary sourcing path for ongoing maintenance.

TVB41D-1 / TMP 1D81 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified assemblies within the Lam Research TVB41D-1 and TMP 1D81 control board ecosystem, organized by functional category:

UI / FIB Interface Boards

810-111093-100: UI/FIB JTS SiH4 interface board, 24V logic, primary process gas signal routing
853-250063-007: PCB assembly, TVB41D-1 variant, fiber-optic isolated I/O, 300mm platform
TMP 1D81-000140: TMP sub-assembly rev -000140, ECO-updated FPGA firmware, backplane bus interface
810-111093-101: UI/FIB JTS SiH4 interface board, rev 101, updated component BOM for RoHS compliance
810-111093-200: UI/FIB JTS SiH4 interface board, 24V, extended temperature range variant

TMP Processor & Control Modules

TMP 1D81-000100: TMP base assembly, initial production revision, 200mm platform compatible
TMP 1D81-000120: TMP assembly rev -000120, revised power regulation section, reduced thermal dissipation
TMP 1D81-000160: TMP assembly rev -000160, expanded diagnostic register map, enhanced fault logging
TMP 1D81-000180: TMP assembly rev -000180, FPGA firmware v3.x, 300mm process recipe support
TMP 1D81-000200: TMP assembly rev -000200, final production ECO, component substitution for obsolete ICs

Backplane & Bus Interface Boards

853-250063-001: PCB backplane interface, TVB series, early revision, 200mm tool configuration
853-250063-003: PCB backplane interface, rev 003, revised connector pinout, improved signal integrity
853-250063-005: PCB backplane interface, rev 005, added ESD protection on all I/O lines
853-250063-009: PCB backplane interface, rev 009, final production revision, full 300mm compatibility

Power & Signal Conditioning

TVB41D-1-PWR: Power conditioning sub-assembly, 24VDC input, regulated 5V/3.3V outputs for TVB41D-1 logic
810-111093-PWR-A: Auxiliary power board, JTS SiH4 subsystem, overcurrent protection, field-replaceable fuse array

Sourcing Hard-to-Find & Obsolete TVB41D-1 / TMP 1D81 Parts

The TVB41D-1 and TMP 1D81 series are no longer manufactured by Lam Research. OEM support for these assemblies has been discontinued, and replacement units are not available through authorized Lam Research service channels for most end-users outside of active service contracts. DriveKNMS maintains a dedicated inventory of refurbished, tested, and serialized TVB41D-1 / TMP 1D81 assemblies sourced from decommissioned tools, fab equipment auctions, and controlled surplus channels.

For fabs operating legacy Lam Research etch or CVD platforms with no near-term capital equipment replacement budget, DriveKNMS provides lifecycle extension support including: board-level repair and component replacement, firmware version matching to installed tool software, functional burn-in testing prior to shipment, and documentation of all repair actions for fab quality records. Lead times for in-stock units are typically 3–7 business days. For units requiring repair or sourcing, lead times are quoted individually based on component availability.

Quality Control for the TVB41D-1 / TMP 1D81 Range

PCB assemblies in the TVB41D-1 / TMP 1D81 series present specific test challenges due to their fiber-optic I/O interfaces, FPGA-based logic, and proprietary Lam Research backplane bus protocol. DriveKNMS applies the following test procedures to all units prior to shipment:

Visual and mechanical inspection of all connectors, solder joints, and component seating is performed under magnification. Fiber-optic transmitter and receiver assemblies are tested for optical power output and receive sensitivity using calibrated optical power meters. FPGA firmware version is verified and documented; units with mismatched firmware versions are reflashed to the customer-specified revision where tooling permits. Backplane bus communication is validated using a Lam Research-compatible test fixture that simulates the host controller handshake sequence. DC power rail voltages (5V, 3.3V, 24V) are measured under load and verified against OEM specifications. Thermal cycling is applied to identify latent solder joint failures. All test results are logged and a test report is available upon request for quality-critical applications.
